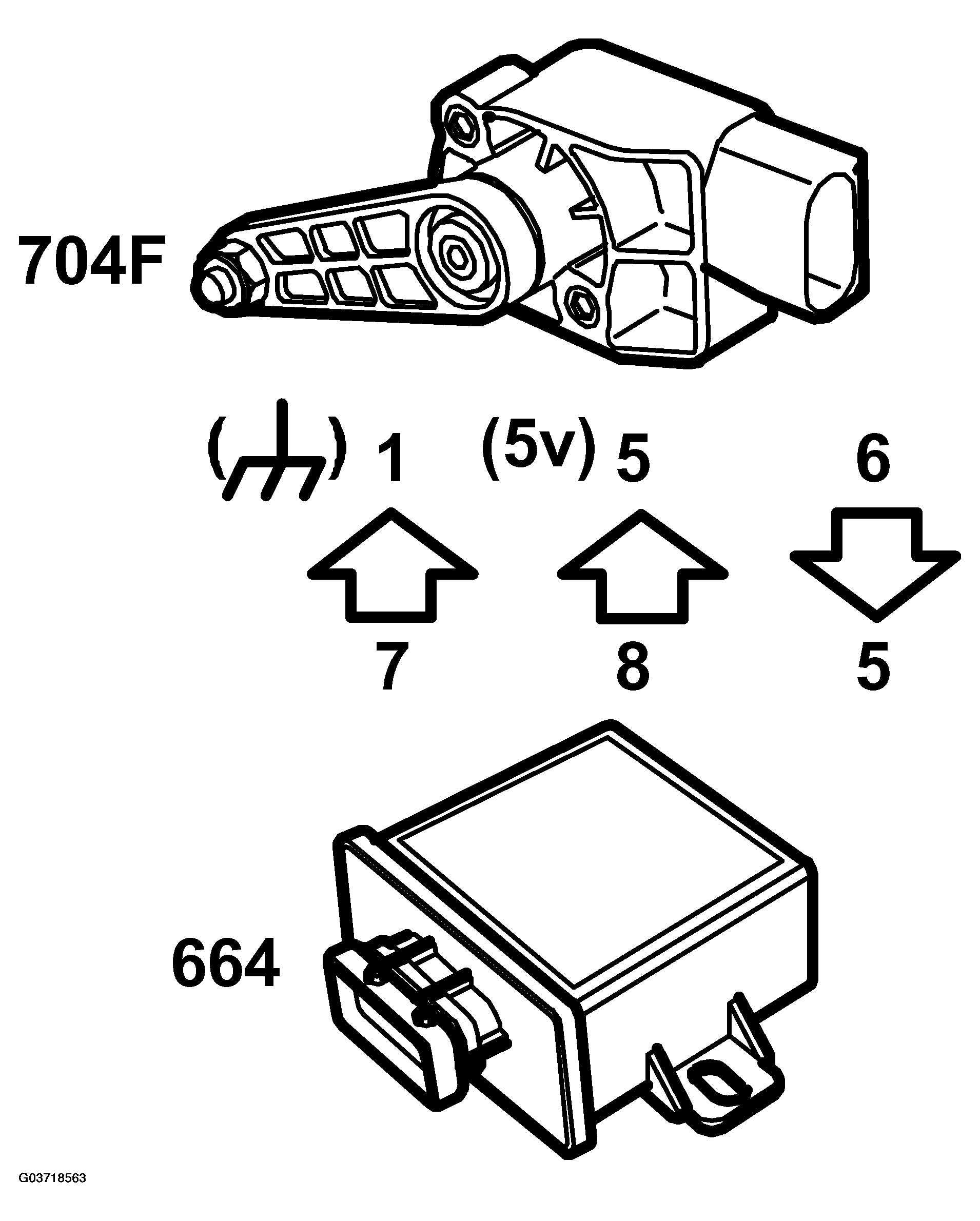

Front load angle sensor (704F): Connection
CONNECTOR PINOUTS REFERENCE
| Pin No. |
Signal type |
Description |
| 1 |
Ground |
Ground from AHL control module pin 7. |
| 5 |
Power supply |
Power supply 5 V, from AHL control module pin 8. |
| 6 |
Signal |
PWM signal with information on sensor status to AHL control module pin 5. |
