Injectors (206), Simtec: Connection

CONNECTOR PINOUTS REFERENCE

Pin No.	Signal type	Description
1	Power supply, B+	Injector's power supply from the main relay.
2	Control	Injector's control. The injector is grounded by ECM. Injector cyl 1: ECM pin 33(B) Injector cyl 2: ECM pin 49(B) Injector cyl 3: ECM pin 51(B) Injector cyl 4: ECM pin 50(B)

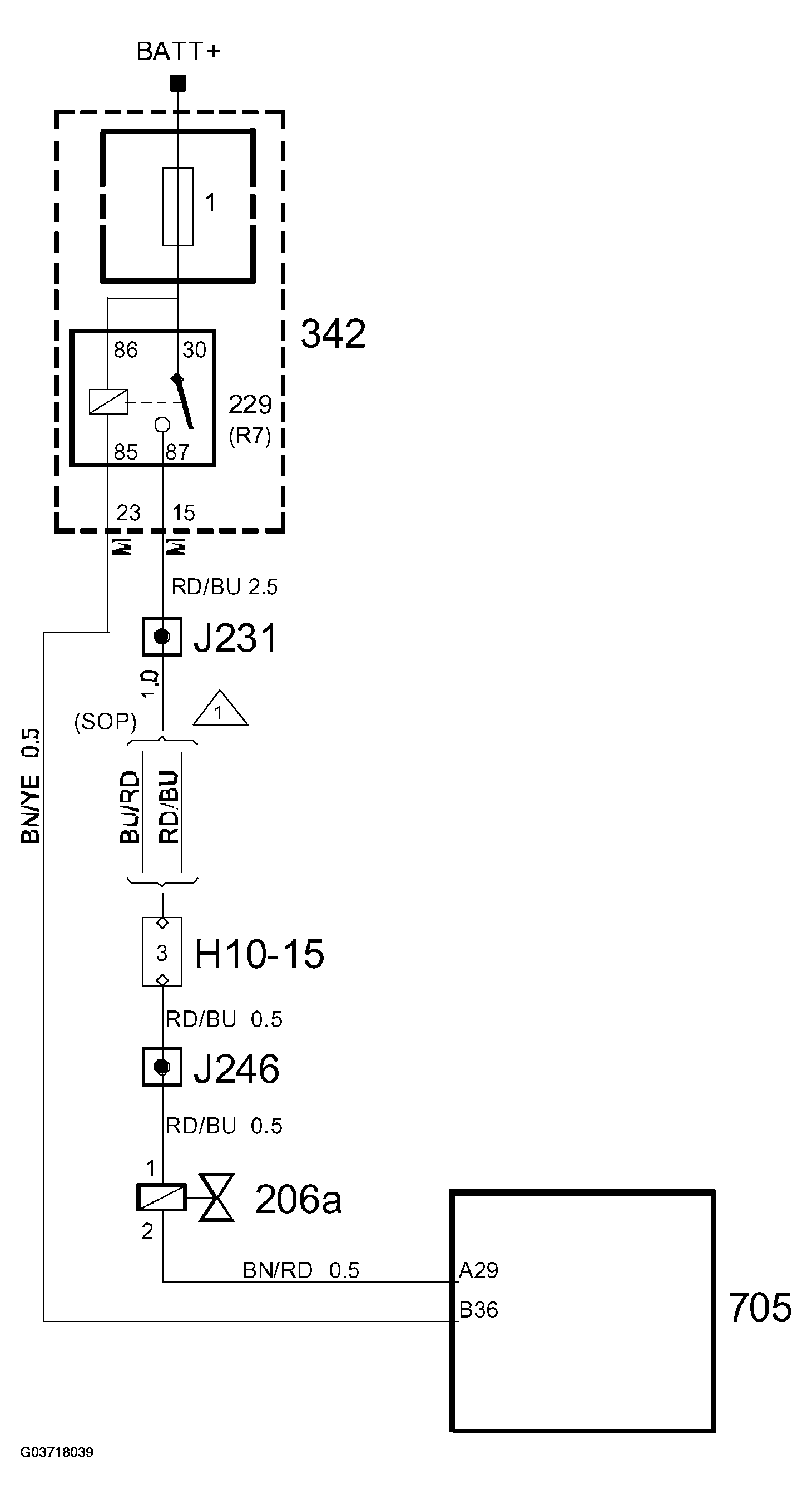

Wiring diagram, injector 1 (206a)

Fig 1: Circuit Diagram - Injector 1 (Simtec)

G03718039

Courtesy of SAAB-SCANIA OF AMERICA, INC.

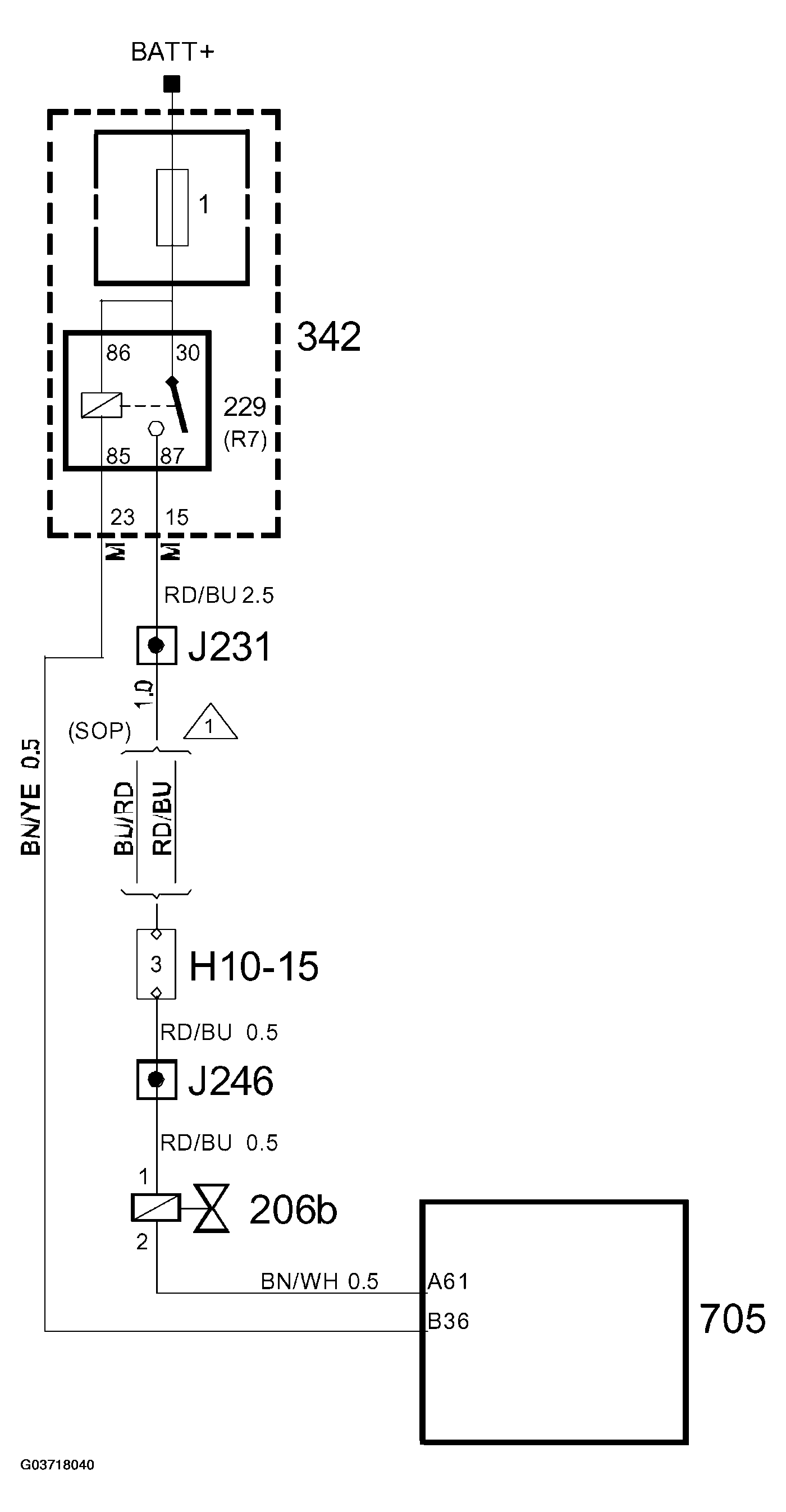

Wiring diagram, injector 2 (206b)

Fig 2: Circuit Diagram - Injector 2 (Simtec)

G03718040

Courtesy of SAAB-SCANIA OF AMERICA, INC.

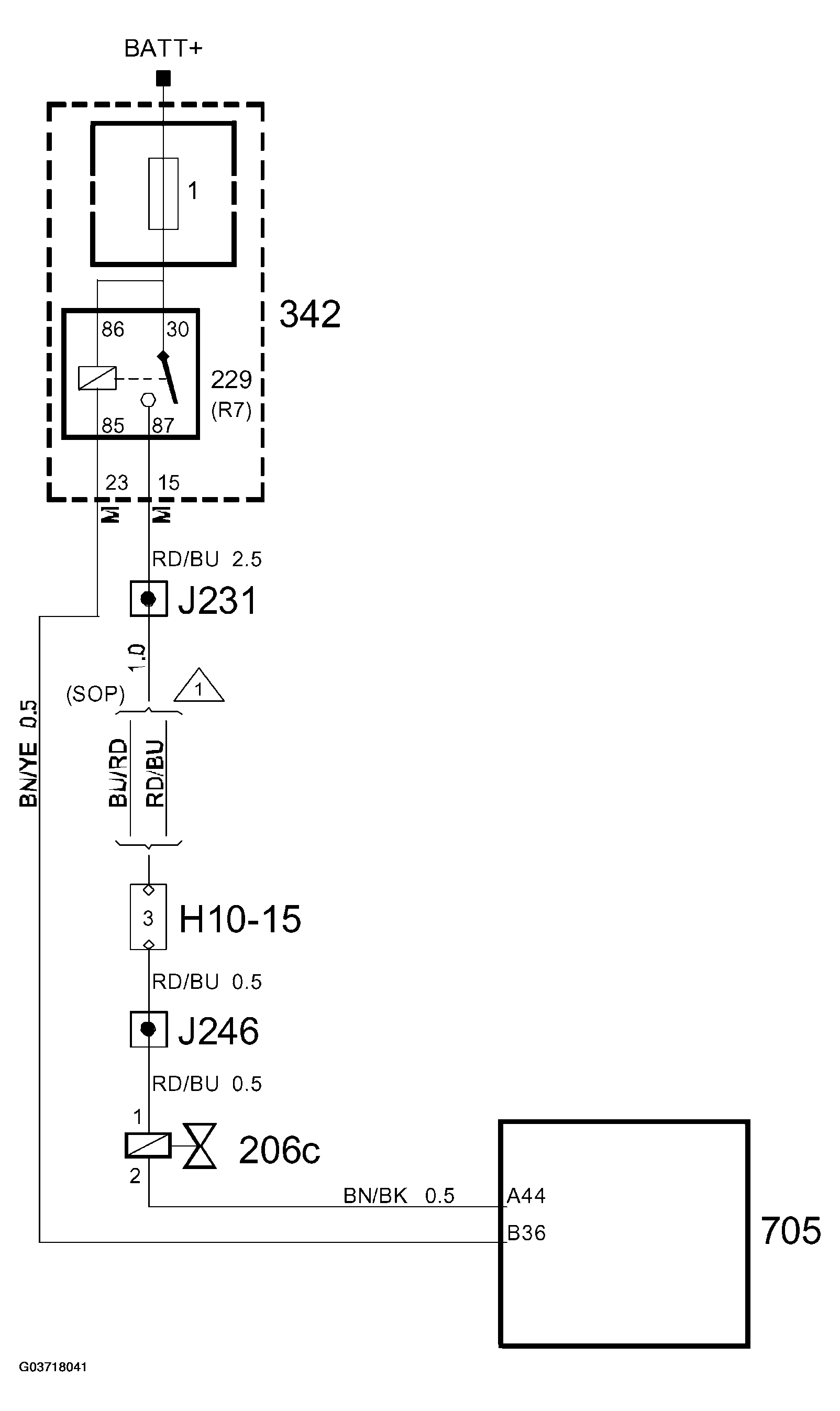

Wiring diagram, injector 3 (206c)

Fig 3: Circuit Diagram - Injector 3 (Simtec)

G03718041

Courtesy of SAAB-SCANIA OF AMERICA, INC.

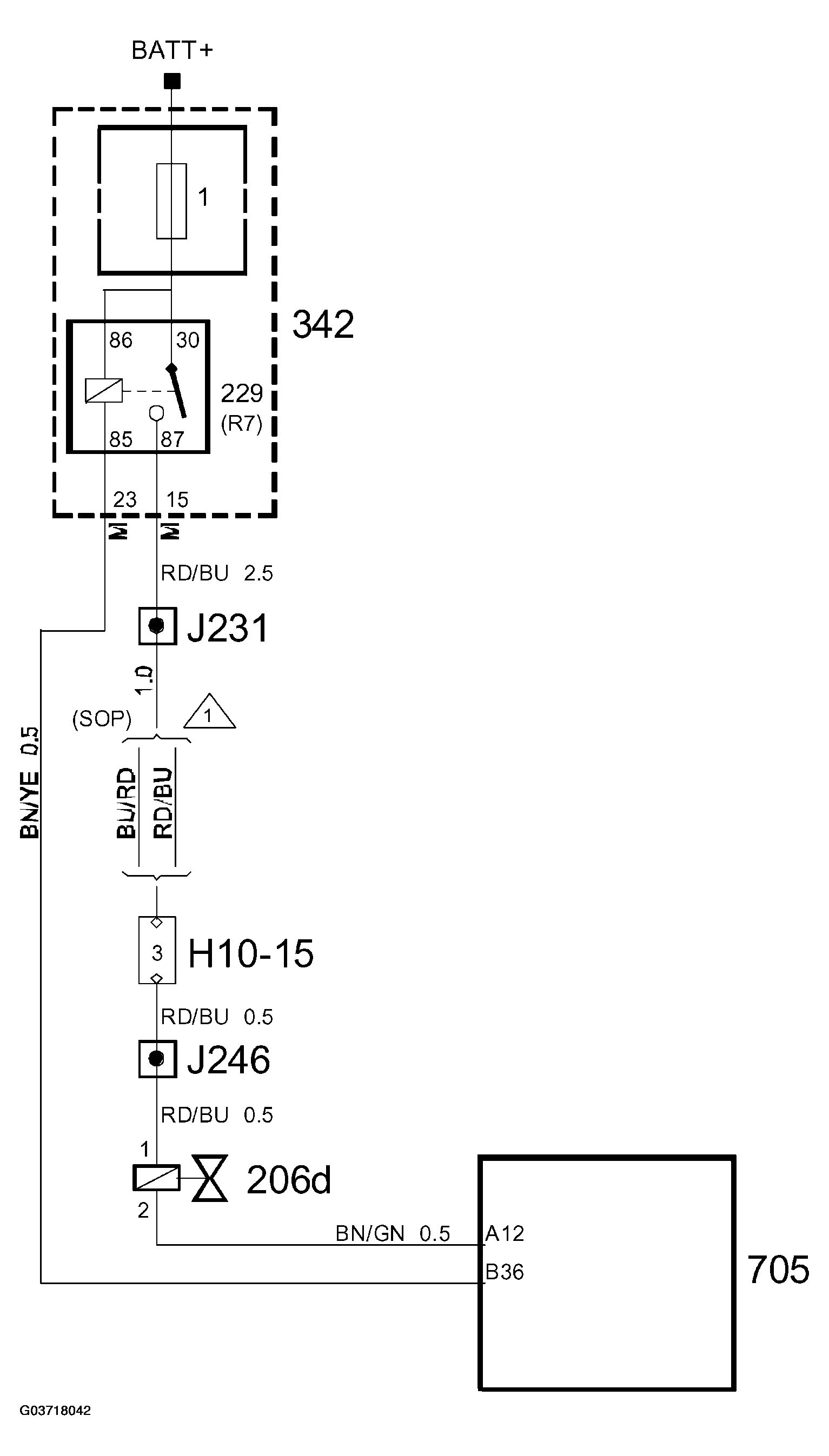

Wiring diagram, injector 4 (206d)

Fig 4: Circuit Diagram - Injector 4 (Simtec)

G03718042

Courtesy of SAAB-SCANIA OF AMERICA, INC.
