Valve gear: Notes

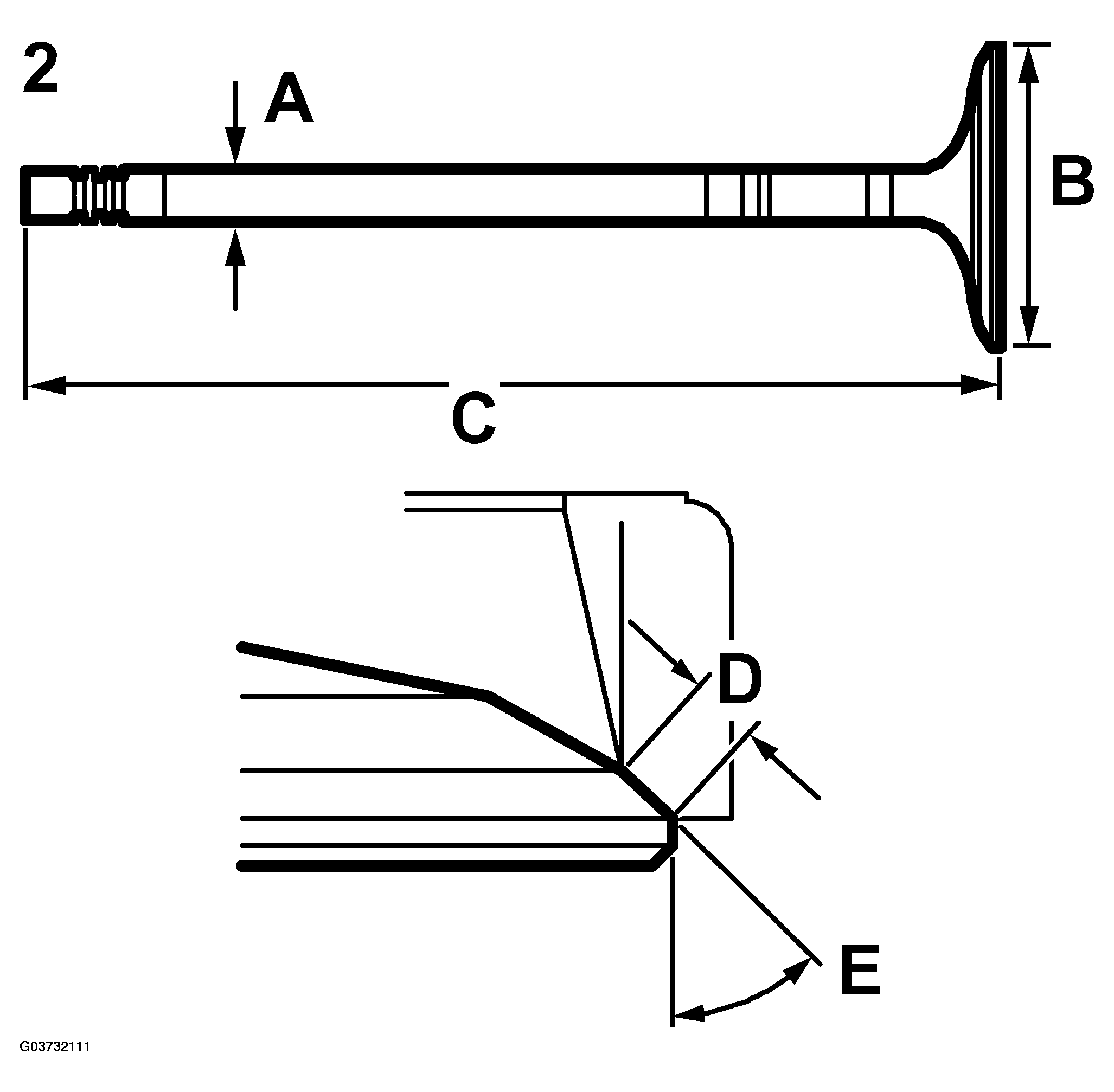

Fig 1: Measuring Diameter Valve
G03732111Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Exhaust valve
  2. Inlet valve
    VALVE TECHNICAL SPECIFICATION

        Exhaust valve Inlet valve
    A
    A Nimonic     		 mm
    mm    		 4.9575 +/-0.0075
    4.9725 +/-0.0075    		 4.9775 +/- 0.0075
    B  mm 29 +/- 0.1 33 +/- 0.1
    C  mm 107.84 107.3
    D  mm 1.5 - 2.0 1.0 - 1.5
    E  ° 44.5 +/-0.167 45.25 +/- 0.25
