System overview, 4 cyl.: Notes

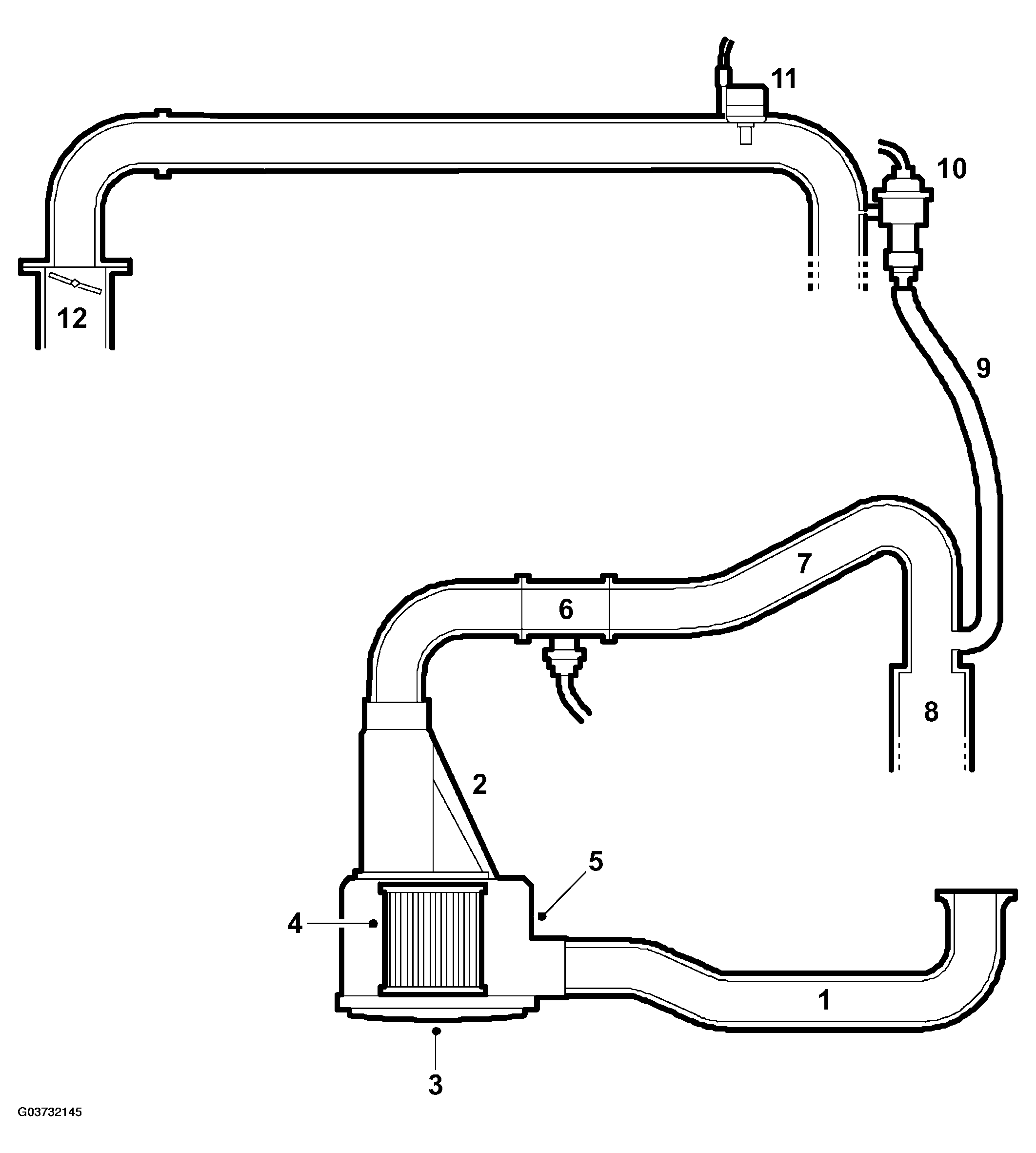

Fig 1: Illustration For Steps 1-12
G03732145Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Air intake pipe
  2. Air cleaner consisting of:
  3. Cover
  4. Filter element
  5. Air cleaner casing
  6. Mass airflow sensor
  7. Connecting hose
  8. Pipe connector to turbo unit and charge air cooler
  9. Bypass pipe
  10. Charge air bypass valve
  11. Pressure/temperature sensor
  12. Throttle valve
