Fuel pump

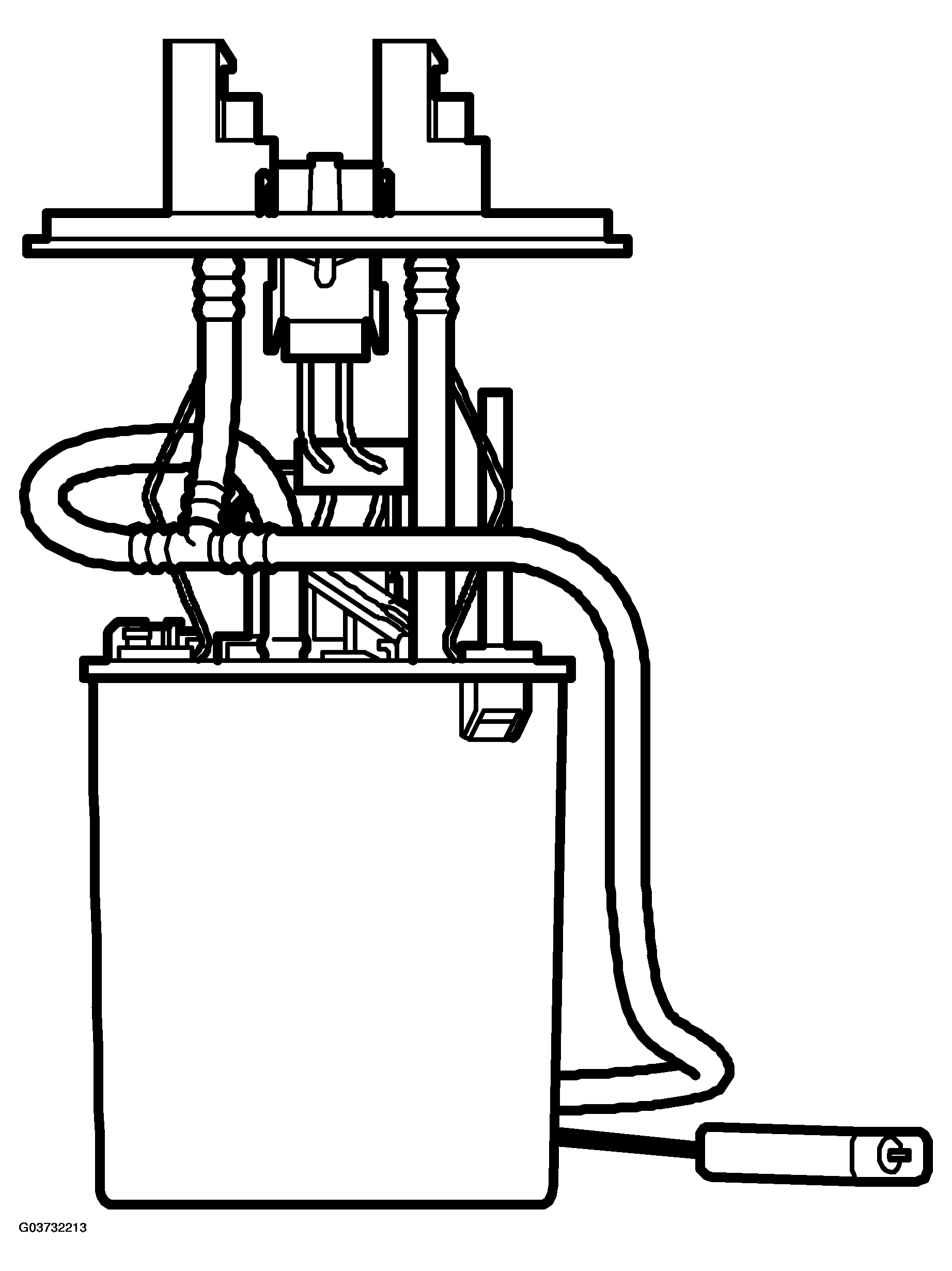

Fig 1: Identifying Fuel Pump

Courtesy of SAAB-SCANIA OF AMERICA, INC.

FUEL PUMP DESCRIPTION

Capacity at 3.0 bar backpressure	l/30s	min. 0.7
Resistance, fuel level sensor, full tank	Ohm	425 +/- 6.5
Resistance, fuel level sensor, empty tank	Ohm	50 +/- 1.5
