To Remove

  1. Remove the blanking-off washers on the wiper spindle nuts and loosen the nuts slightly.

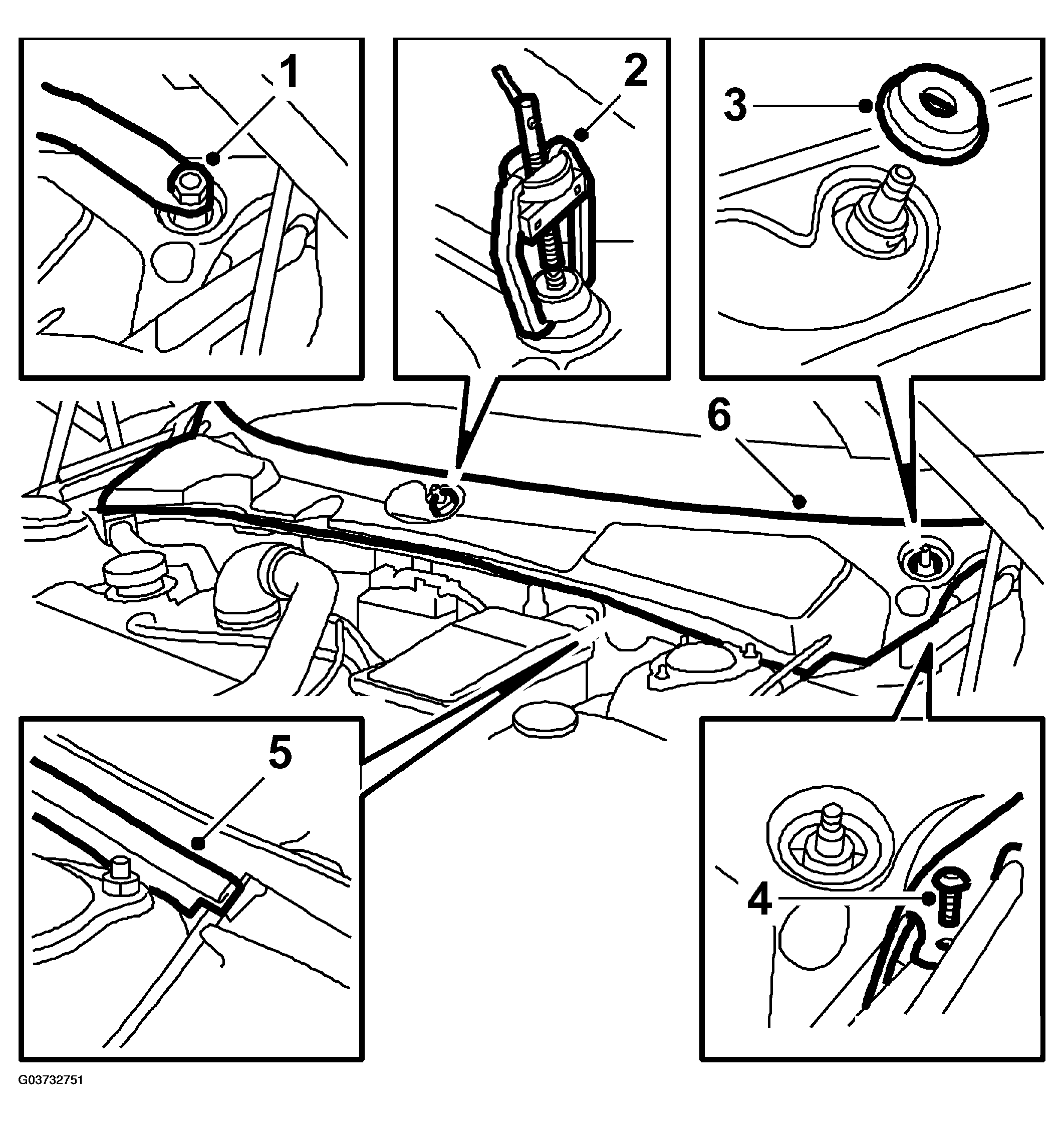

    Fig 1: Illustration For Steps 1 To 6
    G03732751Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Loosen the wiper arms with a puller, special tool (part no. 85 80 144). Remove the nuts and wiper arms.
  3. Remove the rubber wiper spindle seals.
  4. Remove the two screw clips on the ends of the windscreen cover.
  5. Loosen the rubber seal.
  6. Remove the windscreen cover by grasping the front edge and lifting upward/forward. Be careful with the bonnet release wire on the left-hand side.
  7. Undo the protective cover on the control module.

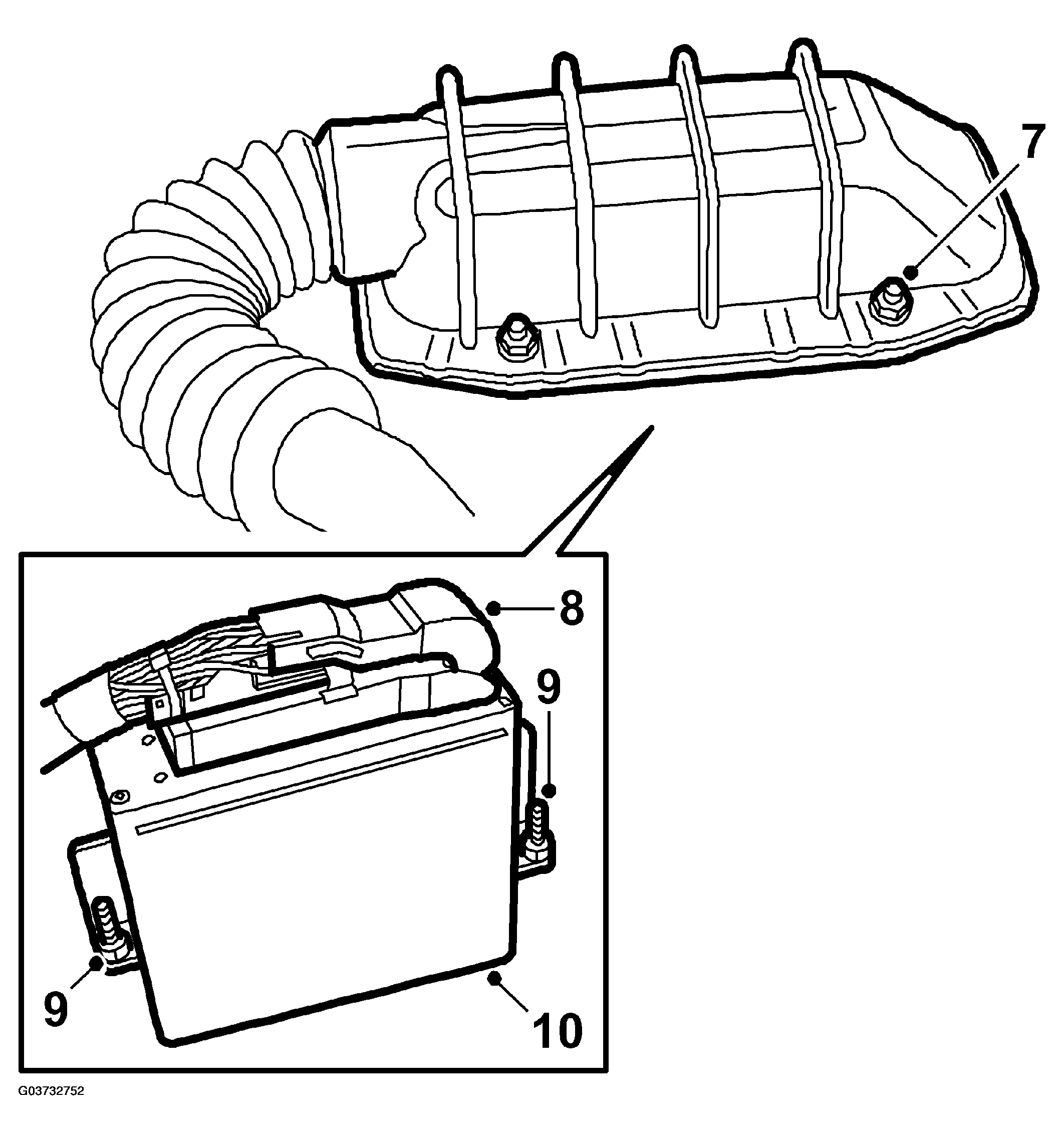

    Fig 2: Illustration For Steps 7 To 10
    G03732752Courtesy of SAAB-SCANIA OF AMERICA, INC.
  8. Tilt up the cover and unplug the control module multi-connector by releasing the catch on the right.
  9. Undo the control module's 2 retaining nuts and remove them. A 10 mm magnetic socket will be useful for this.
  10. Lift the control module straight up.
    IMPORTANT: ESD-SENSITIVE COMPONENT
    Earth yourself by touching the car body before plugging in/unplugging components. Do not touch the component pins  . Read BEFORE CHANGING A CONTROL MODULE  before changing a control module.
