To remove

  1. Remove the upper engine cover.

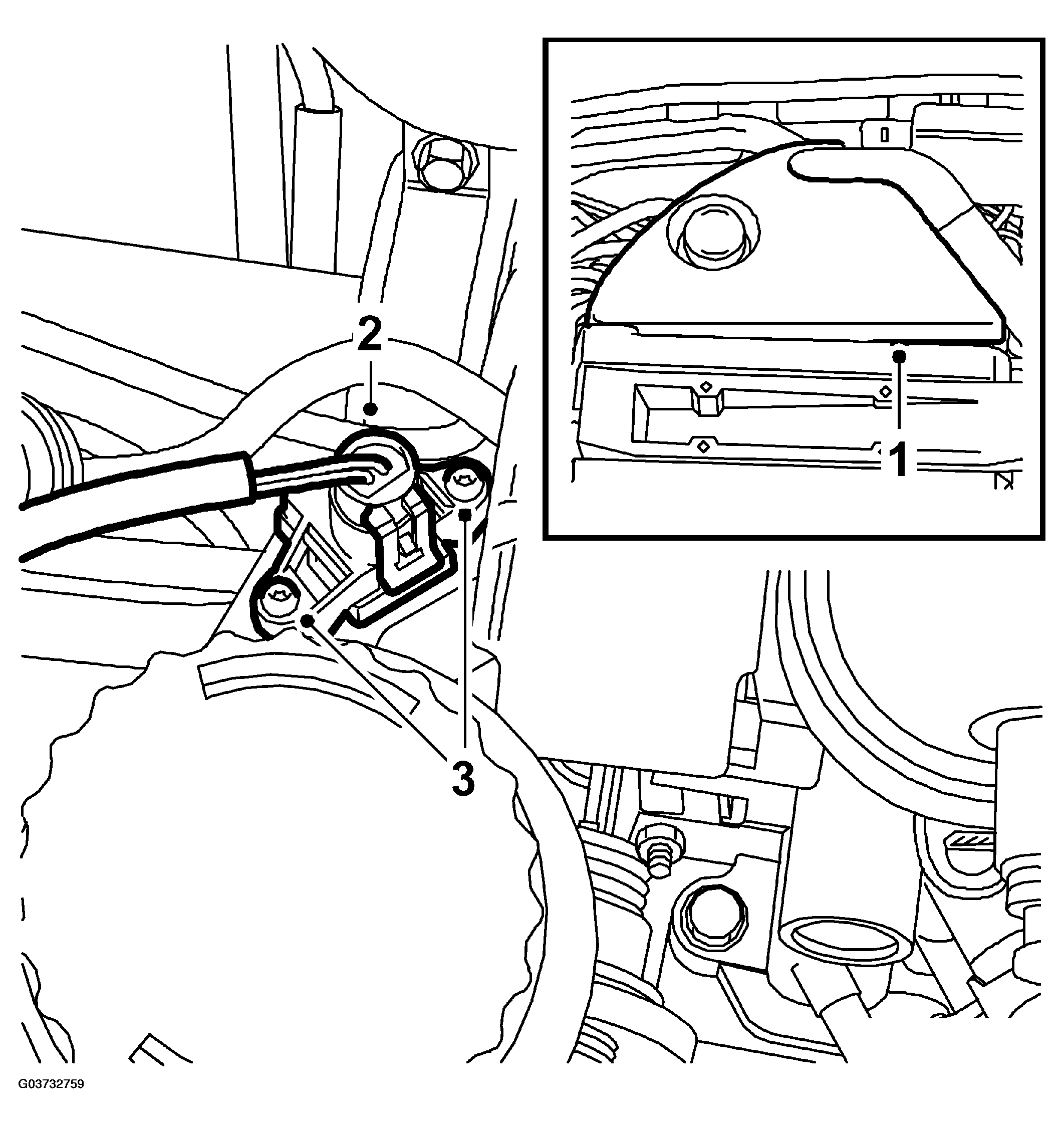

    Fig 1: Illustration For Steps 1 To 3
    G03732759Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Unplug the connector.
  3. Remove the sensor.
