To remove

  1. Unplug the connector.

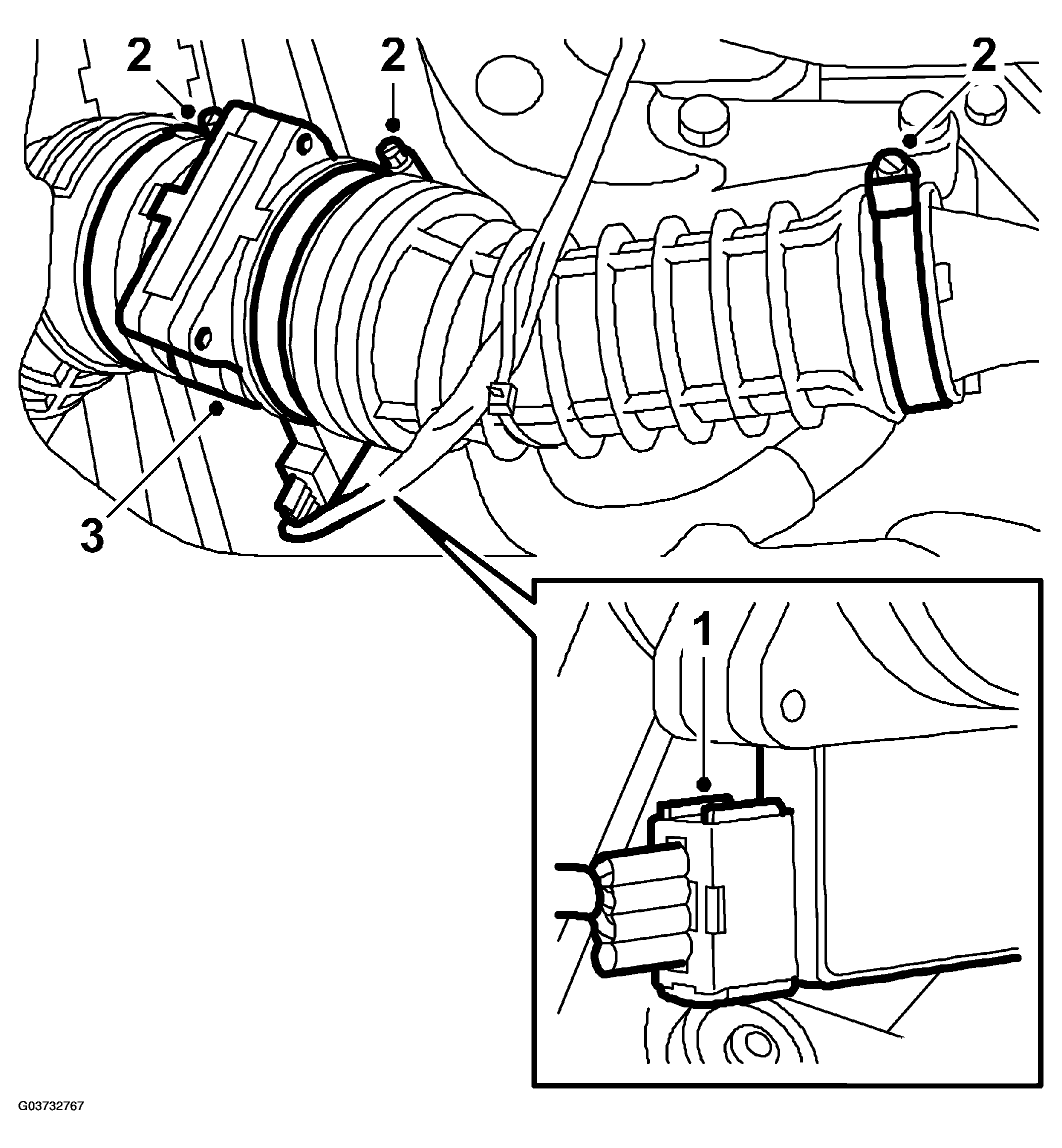

    Fig 1: Illustration For Steps 1 To 3
    G03732767Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Loosen the hose clips on the connecting hoses.
  3. Remove the mass air flow sensor.
