To remove

  1. Remove the lid on the box containing relays and fuses in the engine bay.

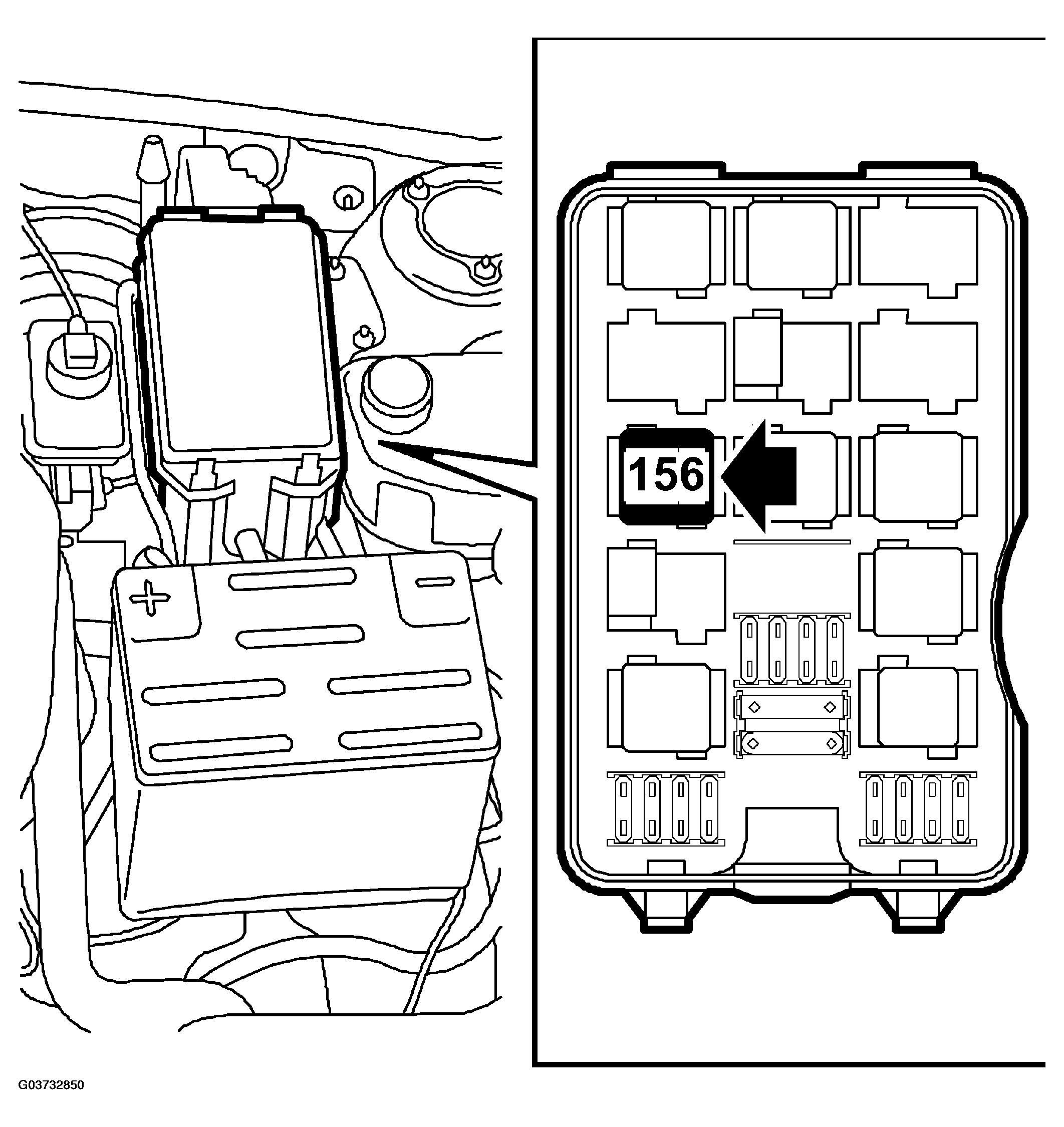

    Fig 1: Removing Lid On Box Containing Relays And Fuses In Engine Bay
    G03732850Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Remove the relay by moving the catch to the side and pulling up the relay.
