To remove

Turn the ignition to the OFF position.
Remove the upper engine cover.

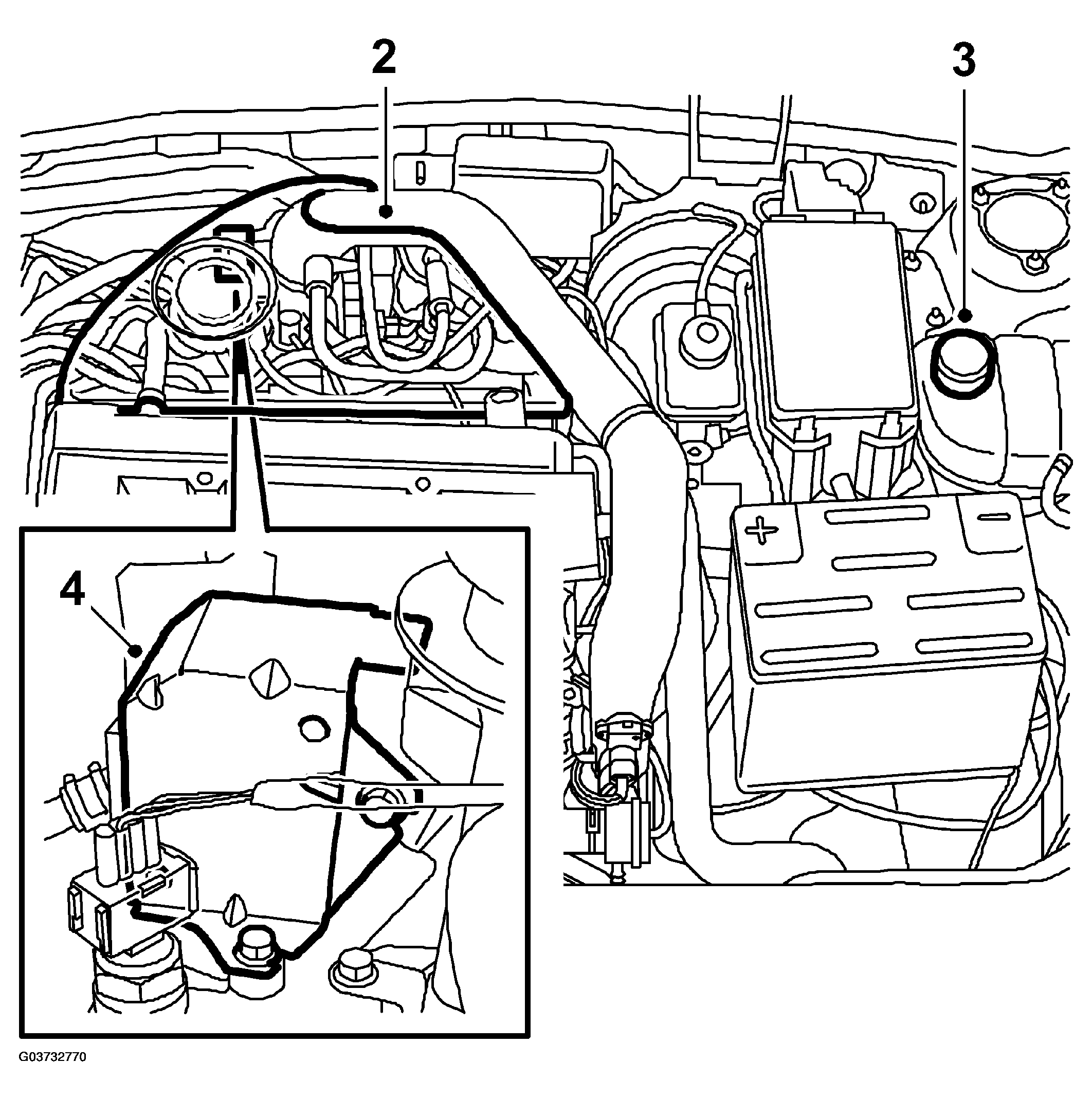

Fig 1: Illustration For Steps 2 To 4
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Undo the coolant expansion tank cap to release any pressure and then retighten it.
Remove the cover on the throttle body pedal arm.
Pinch together the 2 coolant hoses to the throttle body.

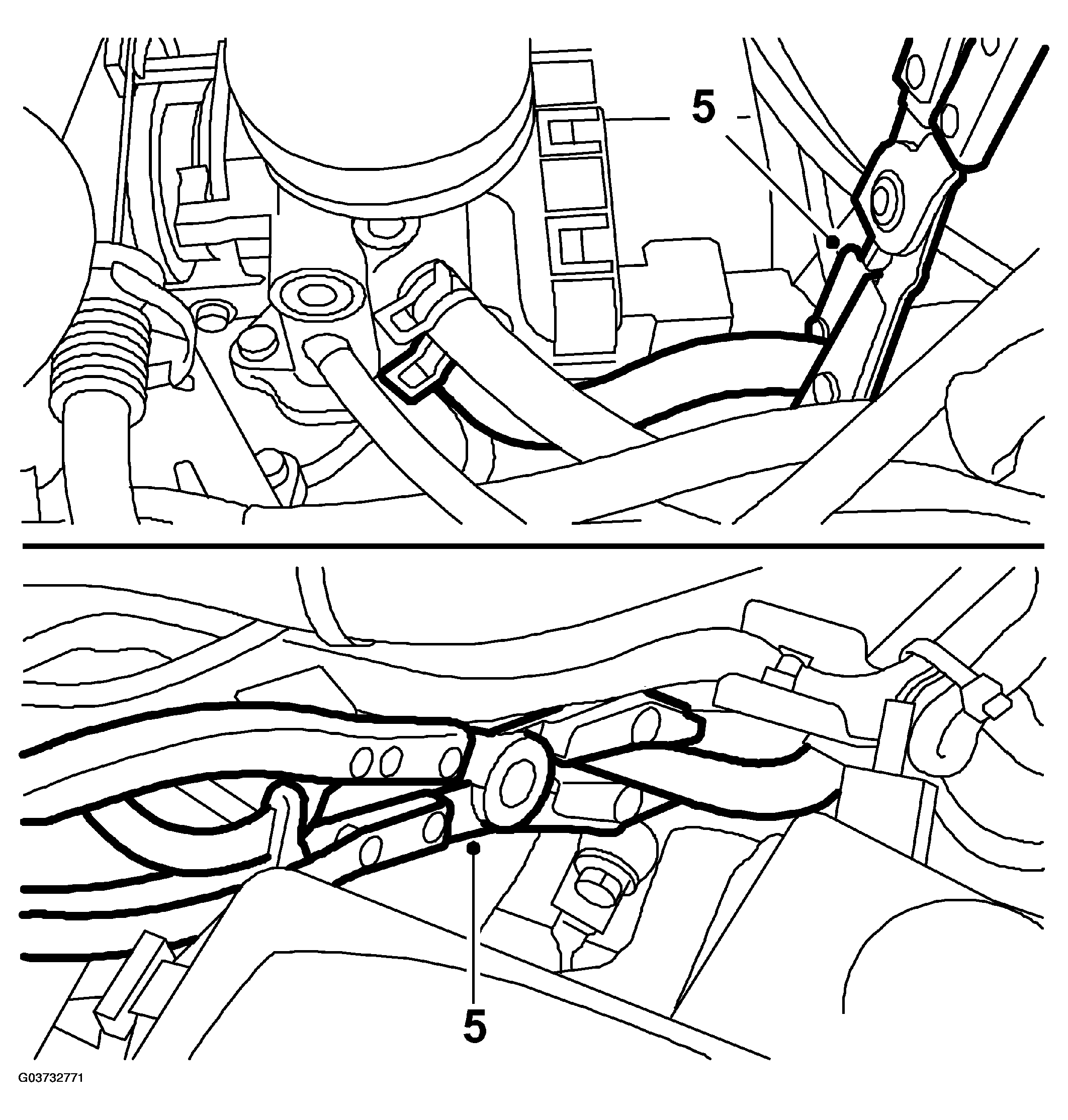

Fig 2: Illustration For Step 5
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Undo the charge air bypass valve hose and the two preheating hoses.

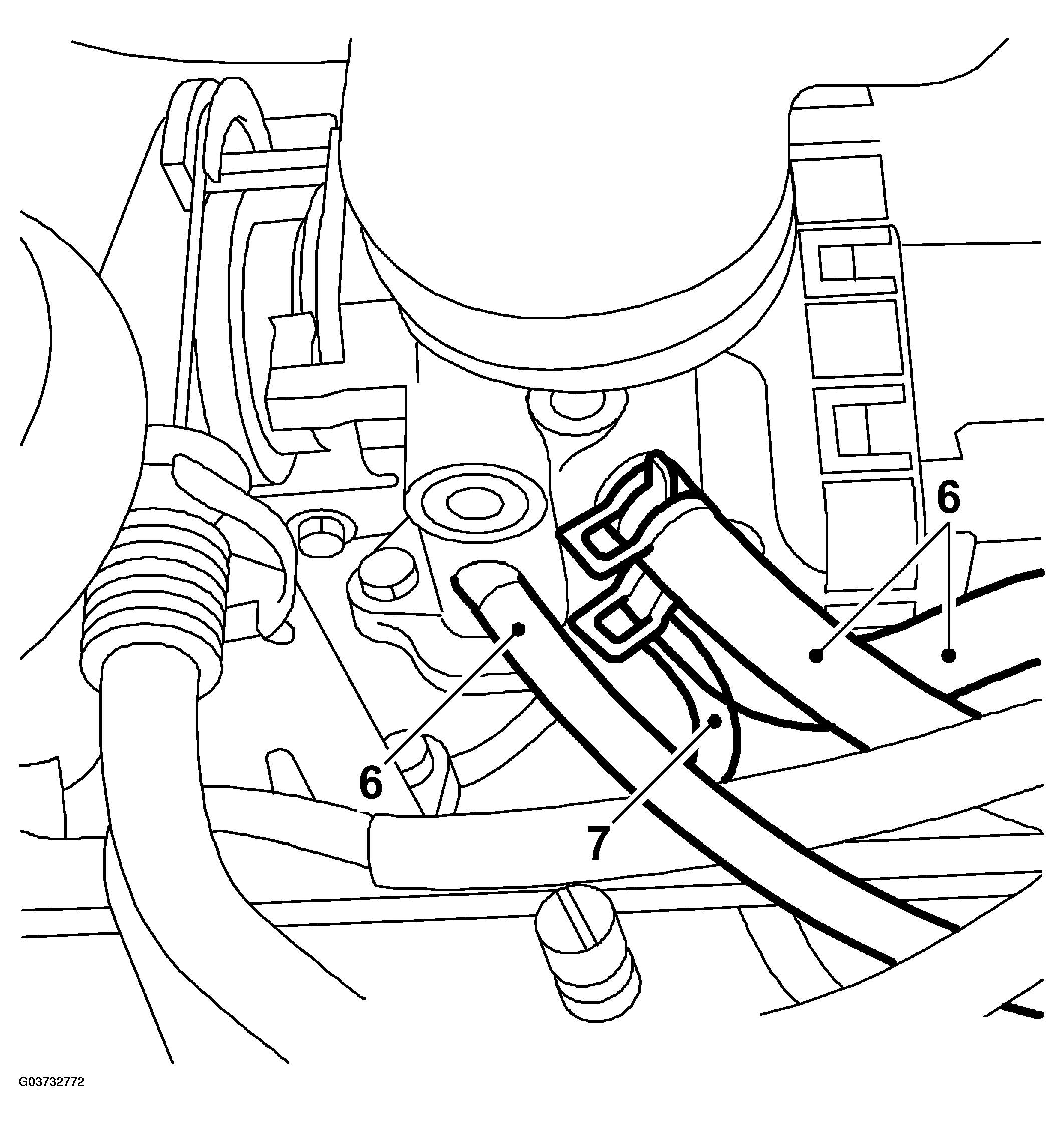

Fig 3: Illustration For Steps 6 To 7
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Detach the lower vacuum hose.
Undo the turbocharger delivery pipe retaining screw in the cylinder head.

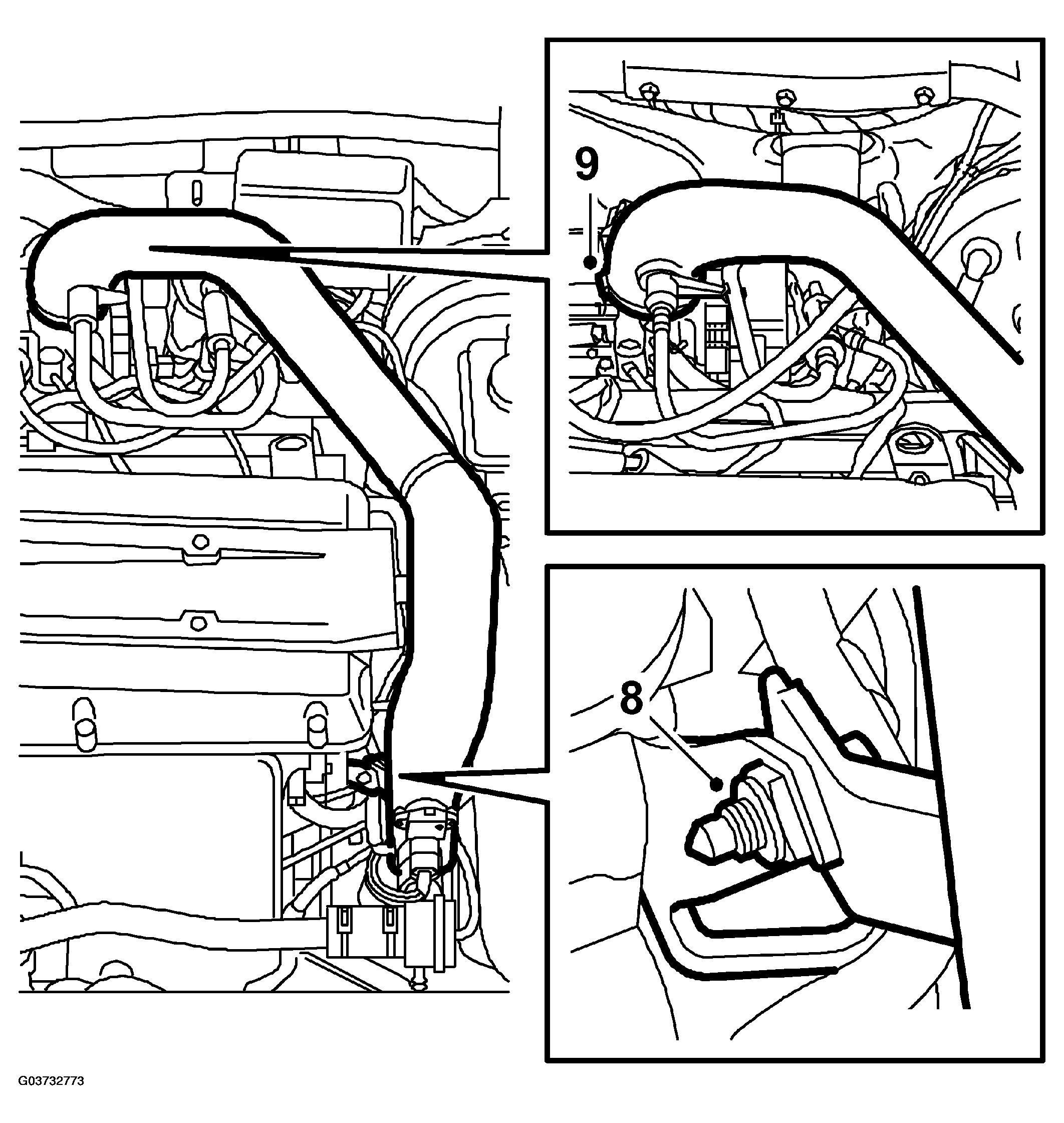

Fig 4: Illustration For Steps 8 To 9
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Undo the hose clip and carefully tilt up the turbocharger delivery pipe.
Detach the accelerator pedal wire from the throttle body pedal arm.

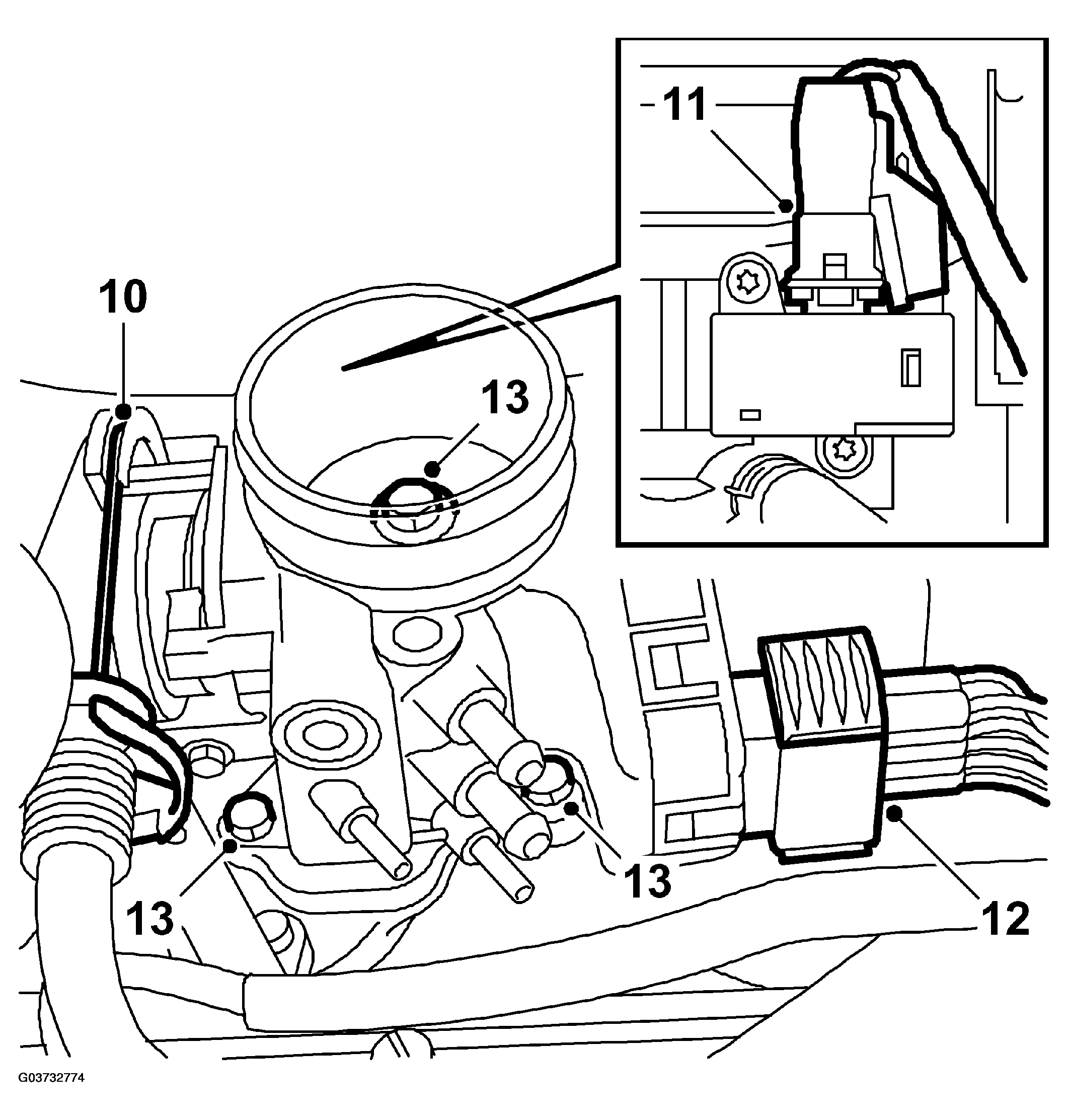

Fig 5: Illustration For Steps 10 To 13
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Lift off the rubber seal and unplug the limp-home solenoid connector.
Unplug the throttle body 10-pin connector.
Undo the 3 throttle body retaining screws.
Lift up the throttle body and detach the hose under the limp-home solenoid.

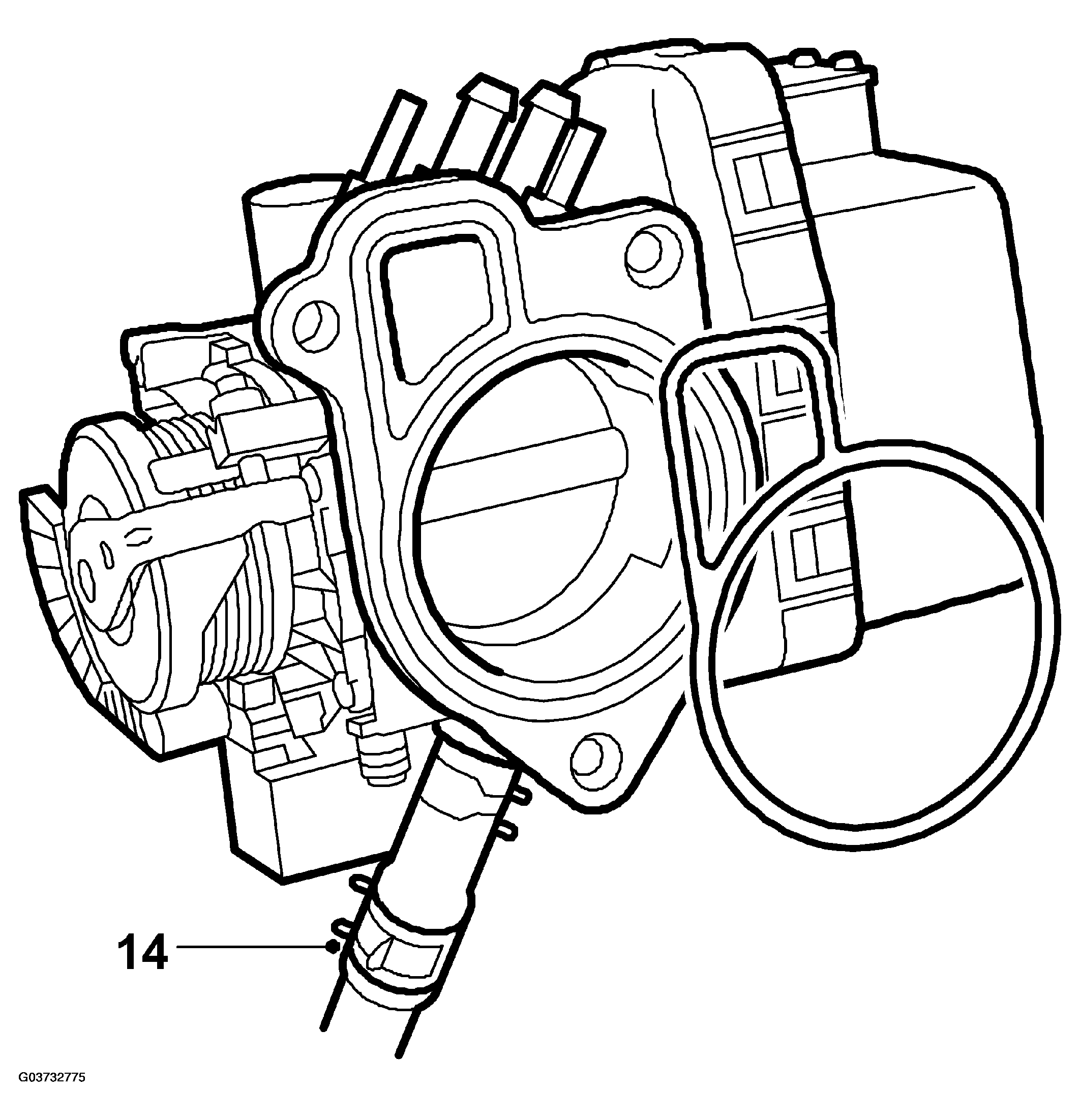

Fig 6: Illustration For Step 14
Courtesy of SAAB-SCANIA OF AMERICA, INC.
