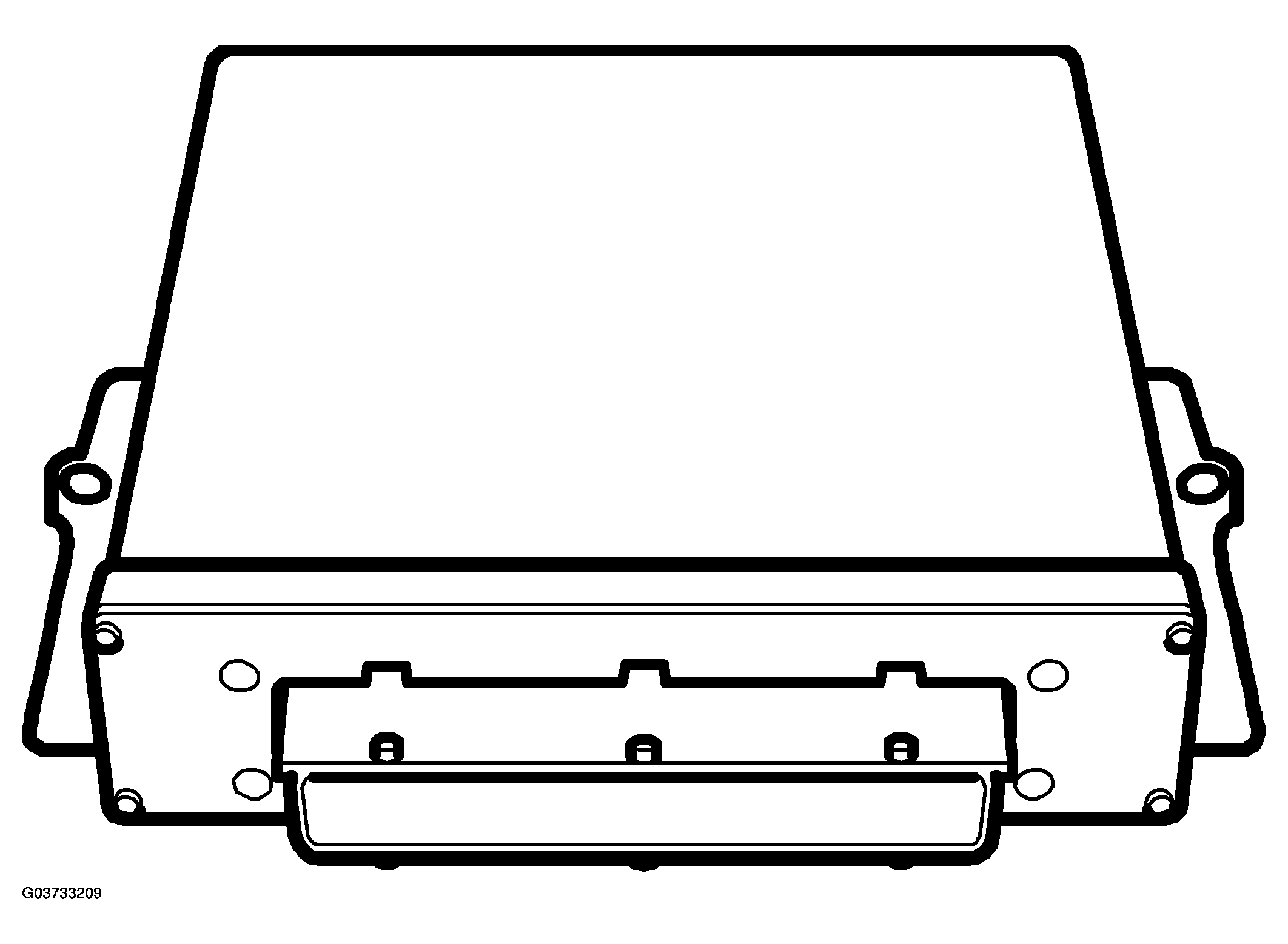

Control module, Trionic T7 (589)
Courtesy of SAAB-SCANIA OF AMERICA, INC. TOOL COMPATIBILITY DESCRIPTION
| Location |
|
In well (cabin side) in front of windscreen on passenger side |
| No. of pins |
|
70 |
| Power supply +30 |
Pin no. |
23 |
| Power supply +15 |
Pin no. |
43 |
| Power supply from main relay |
Pin no. |
1 |
| Power ground |
Pin no. |
47 and 25 |
| P-bus + |
Pin no. |
66 |
| P-bus - |
Pin no. |
19 |
