EVAP pressure sensor (585)

Fig 1: Identifying EVAP Pressure Sensor

Courtesy of SAAB-SCANIA OF AMERICA, INC.

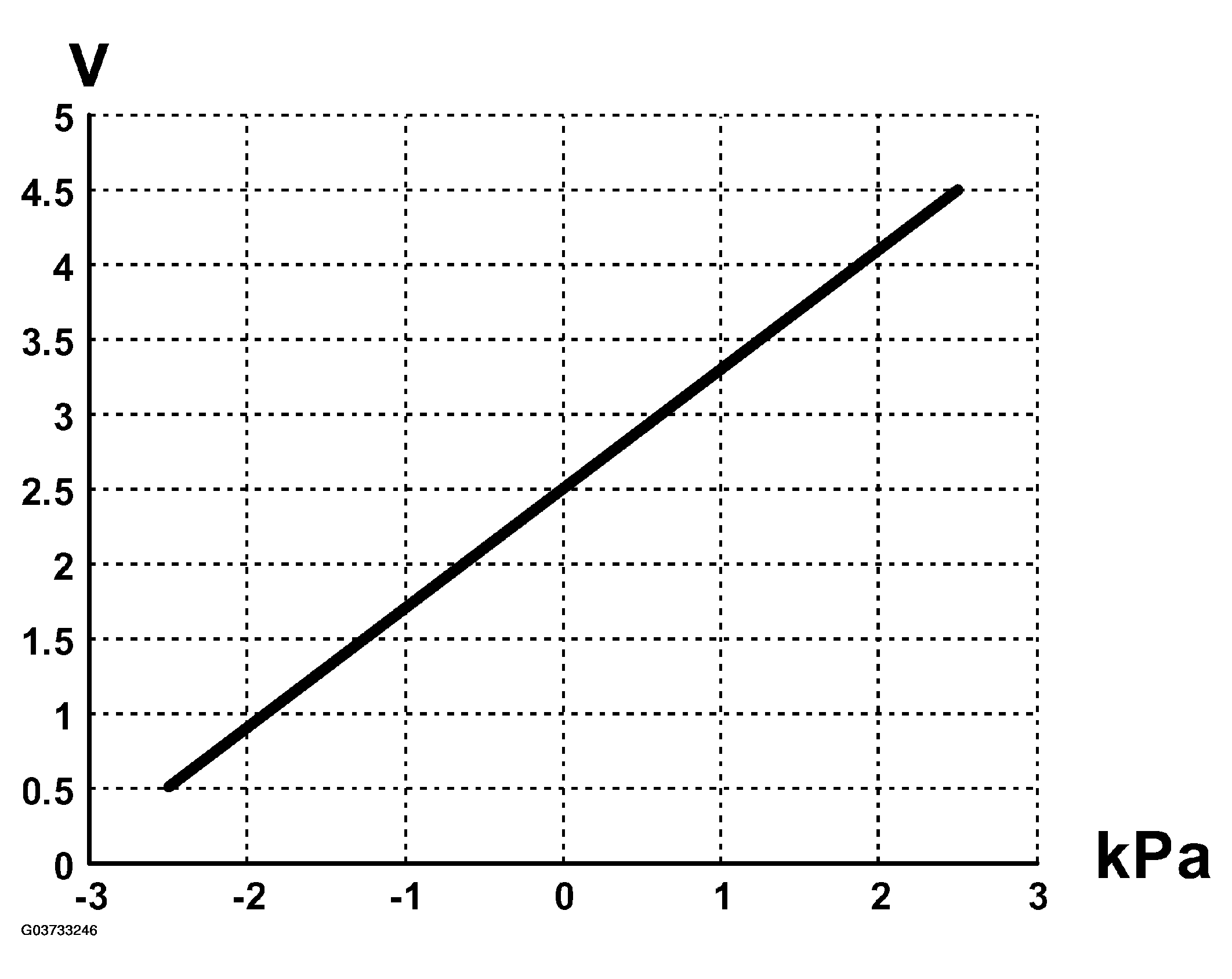

Fig 2: EVAP Pressure Sensor - Performance Graph

Courtesy of SAAB-SCANIA OF AMERICA, INC.

On certain models.

EVAP PRESSURE SENSOR DESCRIPTION

Location		On fuel tank by petrol pump
Power supply	V	5
Differential pressure
-3.75 kPa (-0.0375 bar)	V	approx. 0.5
0 kPa (0 bar)	V	approx. 3.5
1.25 kPa (0.0125 bar)	V	approx. 4.5

The pressure sensor determines the difference in pressure between the tank and the atmosphere, and supplies the control module with a proportional voltage.
