General data

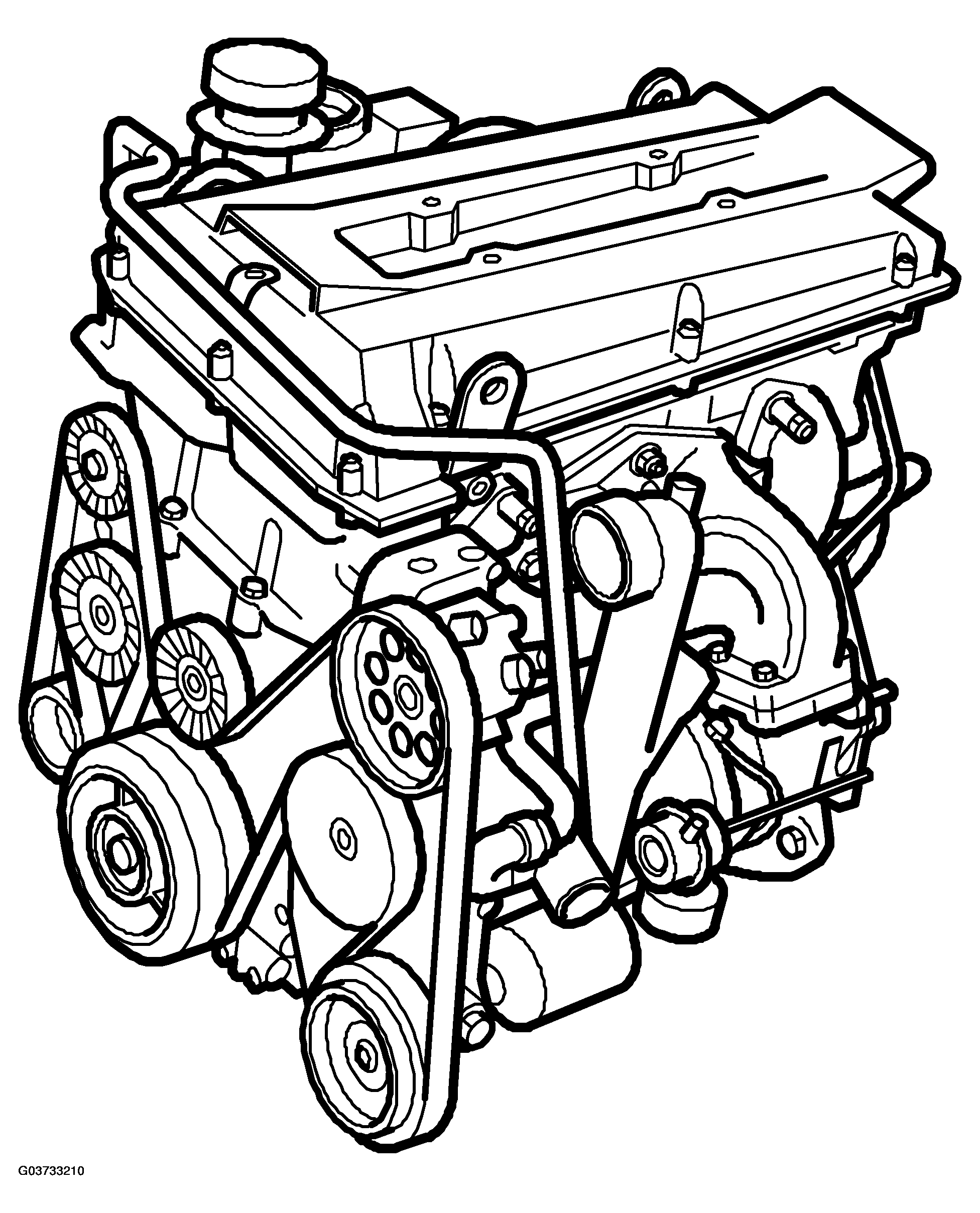

Fig 1: View Of Engine

Courtesy of SAAB-SCANIA OF AMERICA, INC.

ENGINE GENERAL DATA

		B205E	B205E 185 hp	B235E	B235L	B235R	B235R 280 hp	B235R 305 hp
Engine type		4-cyl, 4-stroke engine with 4 valves per cylinder, 2 overhead camshafts and 2 balancer shafts.
Cylinder bore	mm	90	90	90	90	90	90	90
Stroke	mm	78	78	90	90	90	90	90
Swept volume	cm³	1985	1985	2290	2290	2290	2290	2290
Firing order		1-3-4-2	1-3-4-2	1-3-4-2	1-3-4-2	1-3-4-2	1-3-4-2	1-3-4-2
Compression ratios		8.8: 1	8.8: 1	9.3: 1	9.3: 1	9.3: 1	9.3: 1	9.3: 1
Weight	kg (lb)	140 (305)/156 (340)	150 (330)	150 (330)	150 (330)	150 (330)	150 (330)	150 (330)
Max output, EEC 5500 RPM	hp (kW)	150 (110)	185 (135)	185 (136)	220 (162)	250 (184) (5300 RPM)	280 (206)	305 (224)
Max. torque, EEC 1800- 4500 RPM	Nm	240	280	280	310	350 (overboost man. 370)	400	420
Spark plugs, NGK	type	BCPR6ES-11	BCPR6ES-11	PFR6H-10	PFR6H-10	PFR6H-10	PFR6H-10	PFR6H-10
Electrode gap, spark plugs	mm	1.10 +/-0.00-0.10	1.10 +/-0.00-0.10	0.95+/-0.05	0.95+/-0.05	0.95+/-0.05	0.95+/-0.05	0.95+/-0.05
Engine management system		Trionic 7	Trionic 7	Trionic 7	Trionic 7	Trionic 7	Trionic 7	Trionic 7
Nominal idling speed, warm engine	RPM	Drive: 860 Neutral: 825 Man: 825	Drive: 860 Neutral: 825 Man: 825	Drive: 860 Neutral: 825 Man: 825	Drive: 860 Neutral: 825 Man: 825	Drive: 860 Neutral: 825 Man: 825	Drive: 860 Neutral: 825 Man: 825	Drive: 860 Neutral: 825 Man: 825
Fuel, recommended octane/cetane rating	RON	95	95	95	98	98	98	98
V	kg (lb)	140 (305)/156 (340)	150 (330)	150 (330)	150 (330)	150 (330)	150 (330)	150 (330)
