Relay, A/C (156)

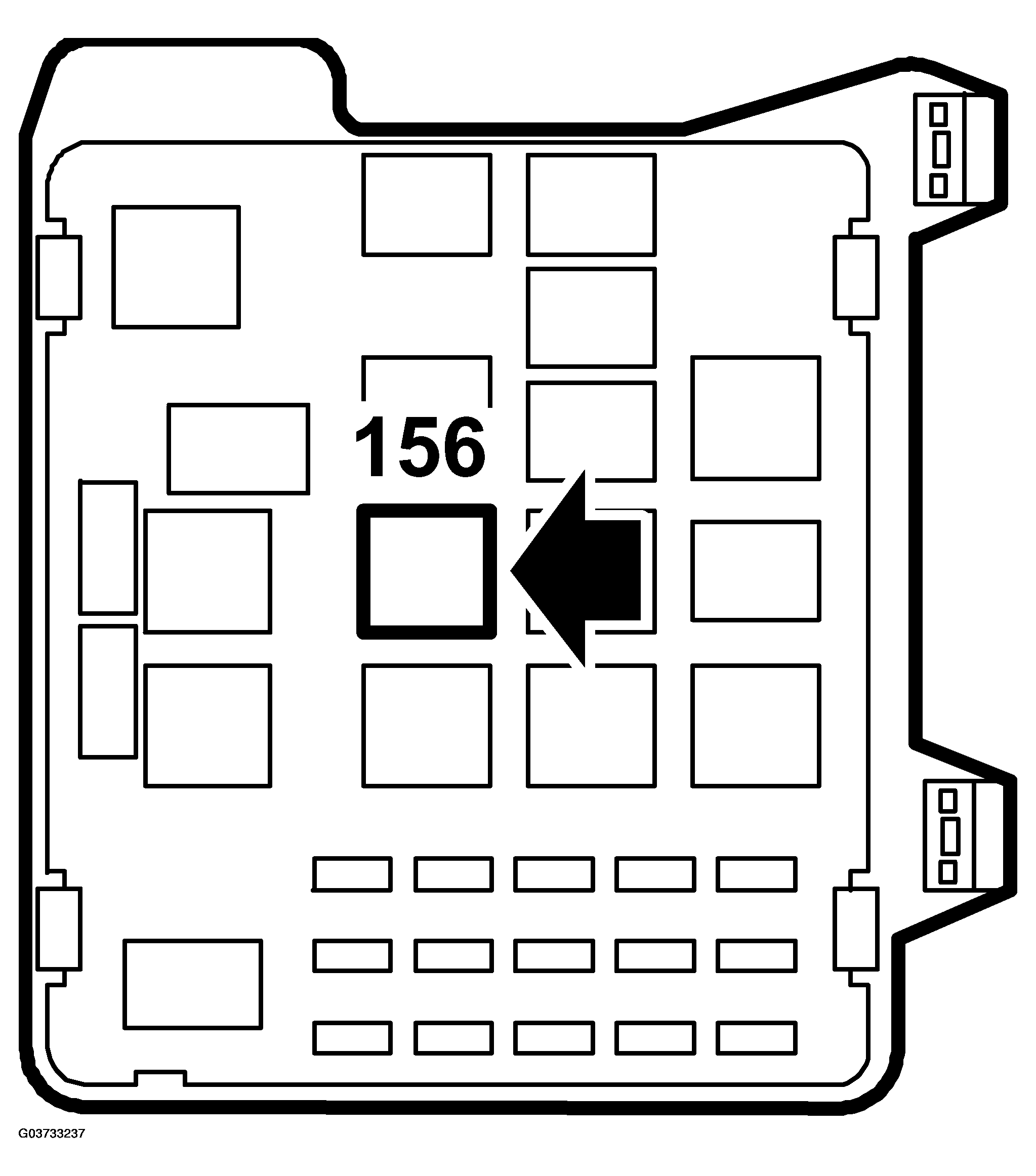

Fig 1: Identifying Relay - A/C (156)
G03733237Courtesy of SAAB-SCANIA OF AMERICA, INC.
A/C RELAY DESCRIPTION

Location   In main relay board in engine bay
Resistance, coil at 20°C (68°F) Ohm 85+/-5
Nominal control voltage V 12
Rated current A 30
