Input shaft speed sensor: Fitting

Plug in the sensor's connector.

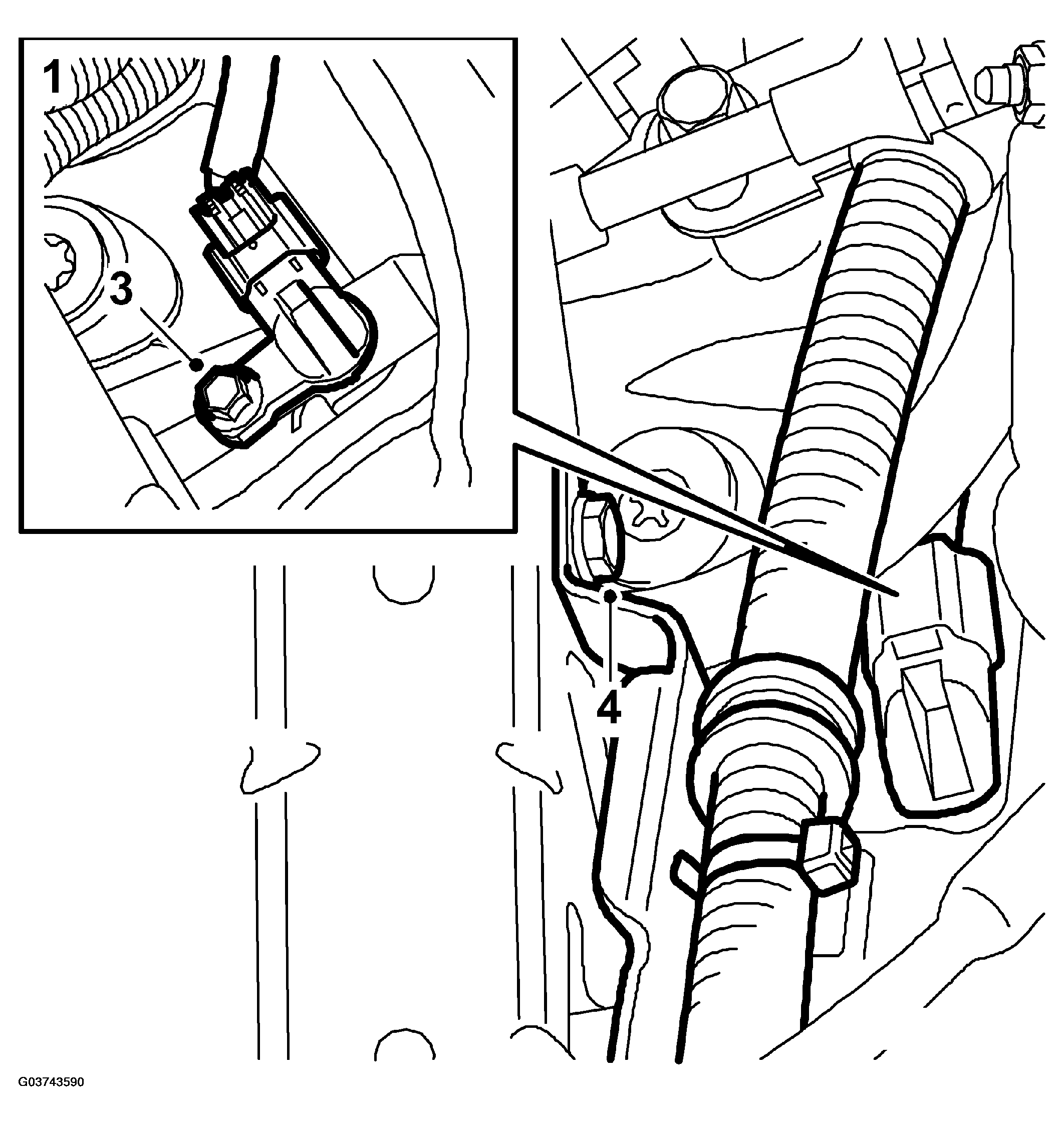

Fig 1: Illustration For Steps 3-4
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Fit the sensor in place.
Tighten the sensor's retaining bolt.
Tightening torque: 6 Nm (4.5 lbf ft)
Fit the battery cable bracket.

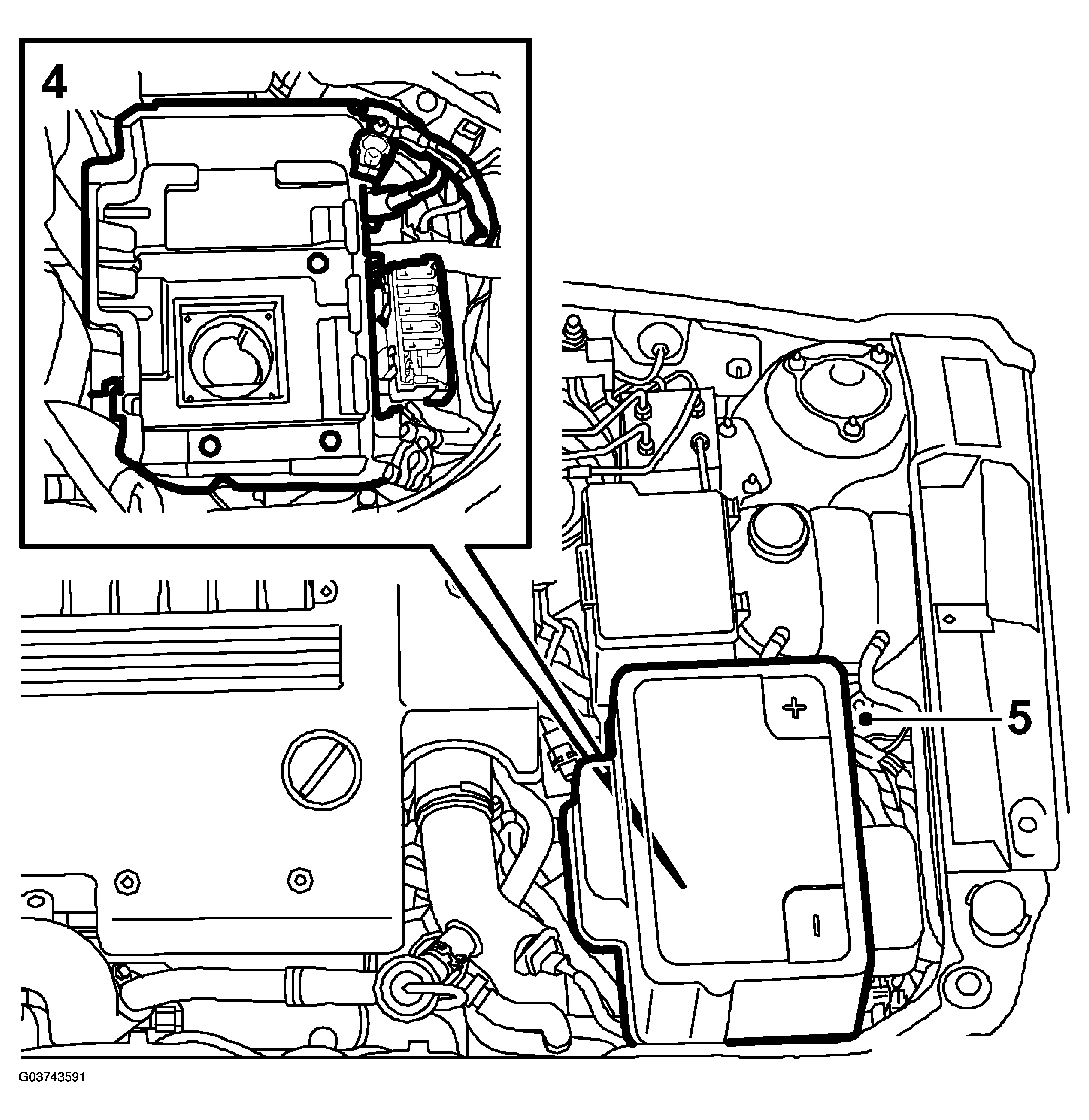

Fig 2: Illustration For Steps 4-5
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Fit the battery tray, MAXI fuse board, battery and battery cover.
Set the right time on the clock.
