Grounding point, G41P: Notes

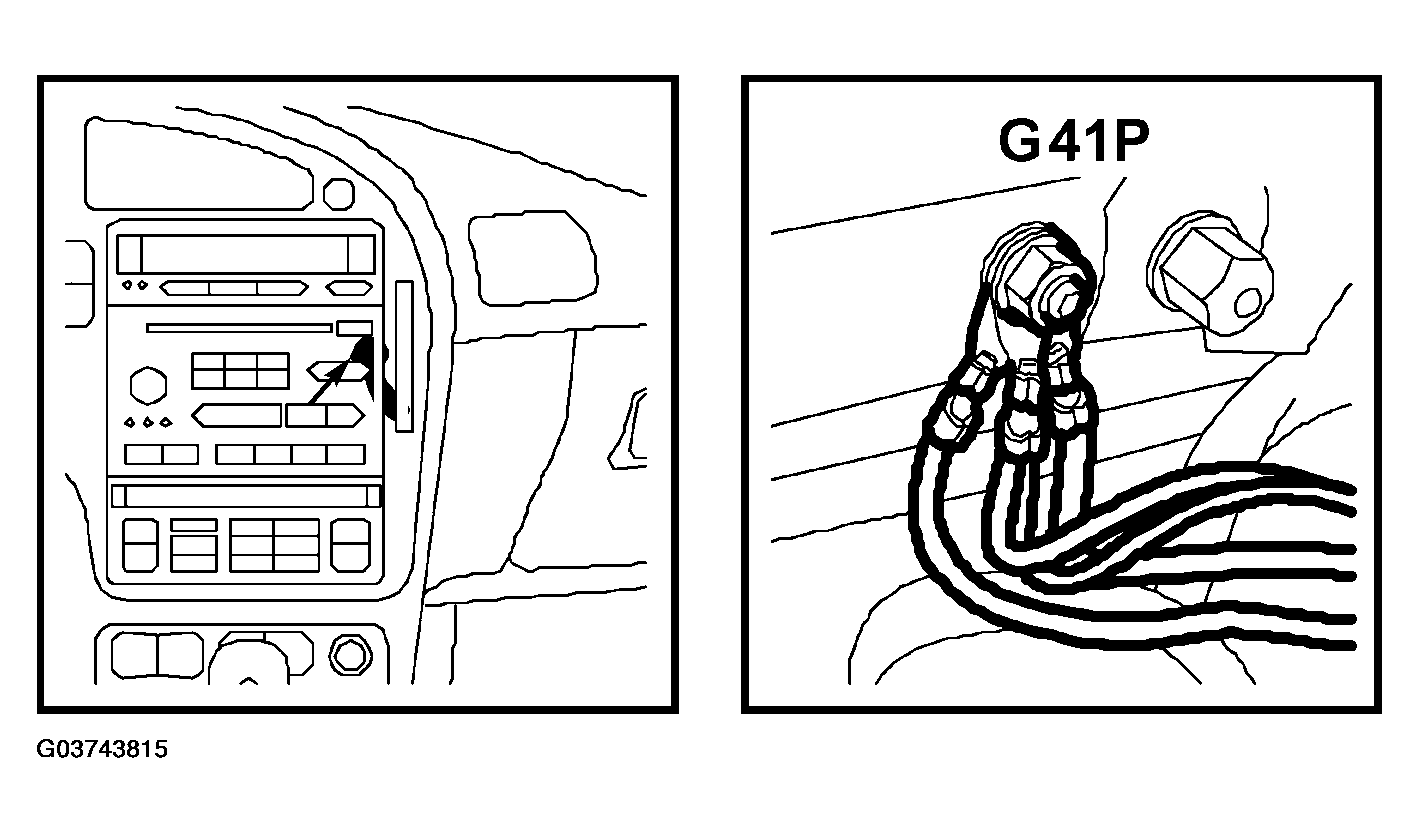

Fig 1: Identifying Grounding Point, G41P
G03743815Courtesy of SAAB-SCANIA OF AMERICA, INC.

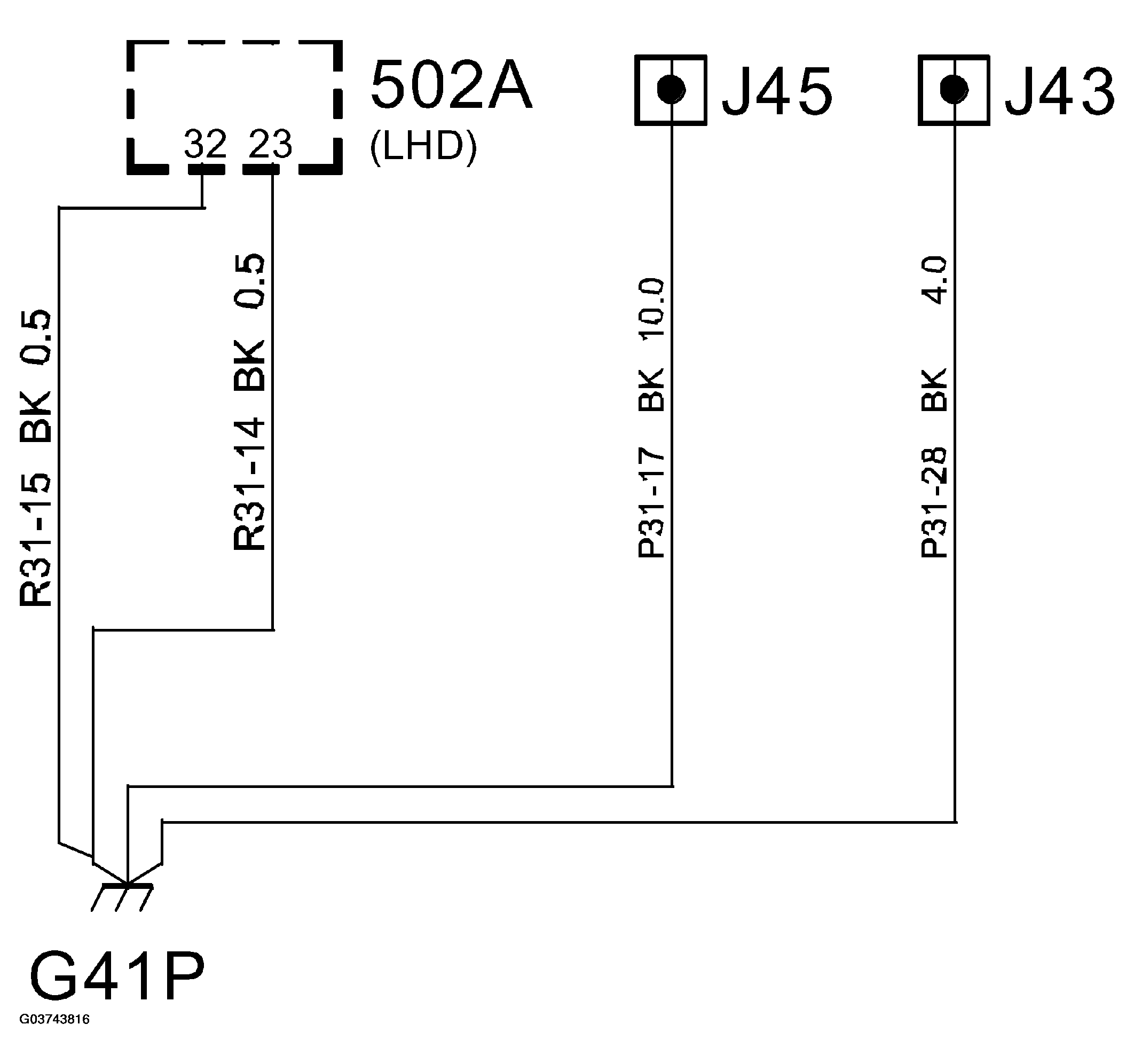

Fig 2: Grounding Point, G41P Wiring Diagram
G03743816Courtesy of SAAB-SCANIA OF AMERICA, INC.
