Sensor, input speed

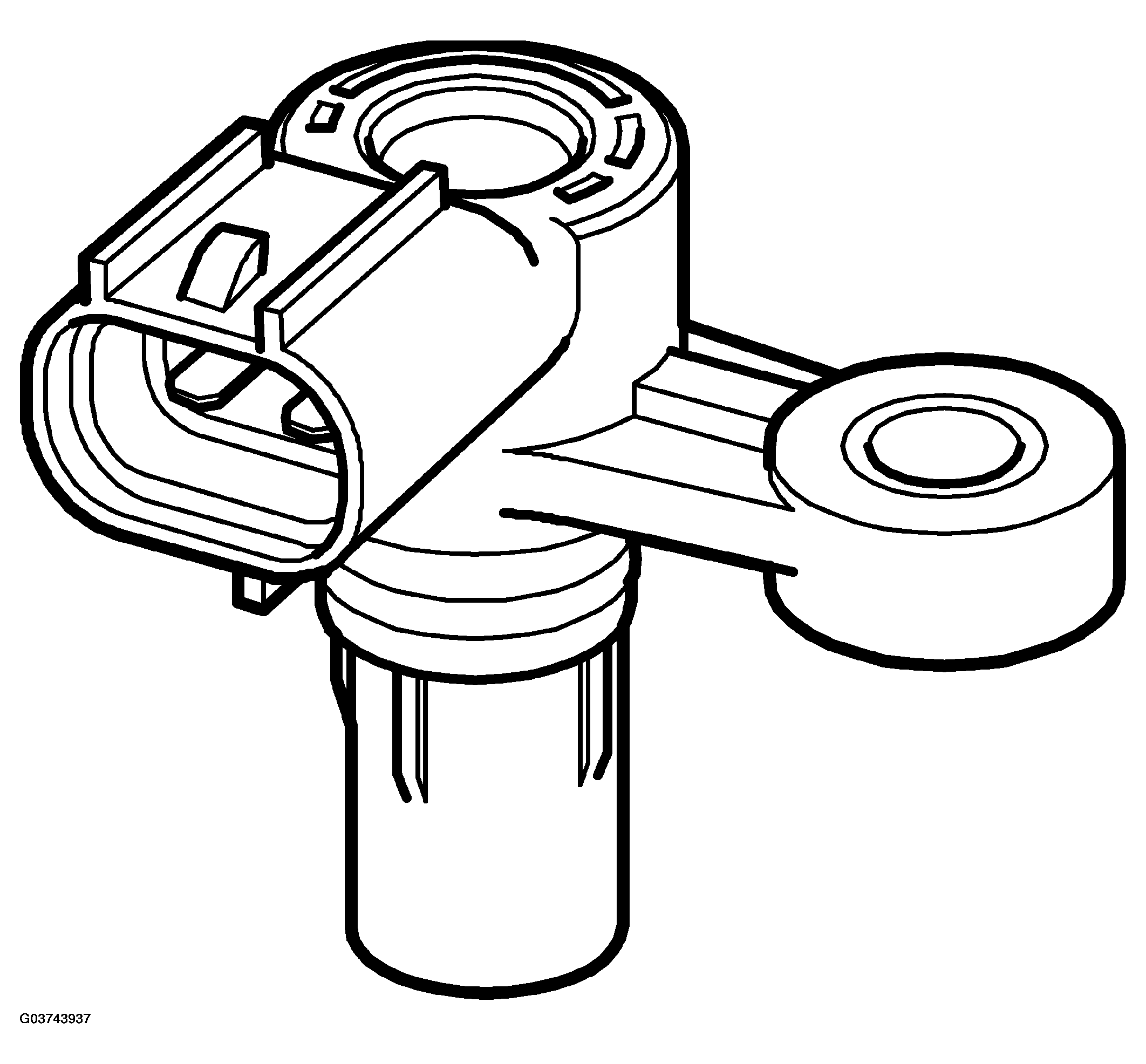

Fig 1: Identifying Sensor, Input Speed
G03743937Courtesy of SAAB-SCANIA OF AMERICA, INC.
INPUT SPEED SPECIFICATION

Location On the transmission casing
Type Hall sensor
Toothed Wheel 12 Teeth
