Input shaft speed sensor: Diagnostics

Diagnostics If input speed is absent, fault code P0717 is generated and the TCM goes into limp-home.

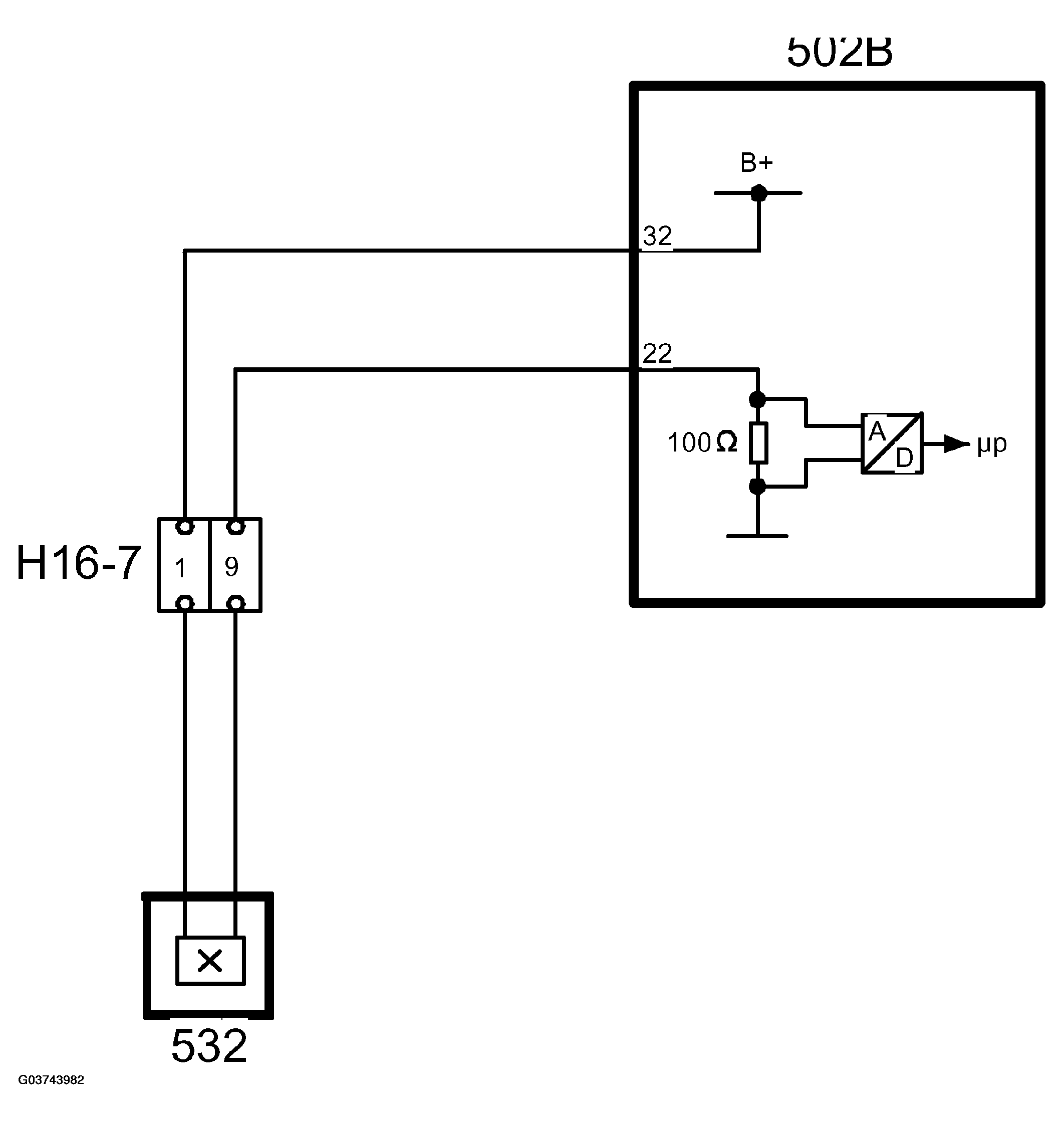

Fig 1: Identifying Input Shaft Speed Sensor Connection Diagram

Courtesy of SAAB-SCANIA OF AMERICA, INC.
