Power flow, reverse gear

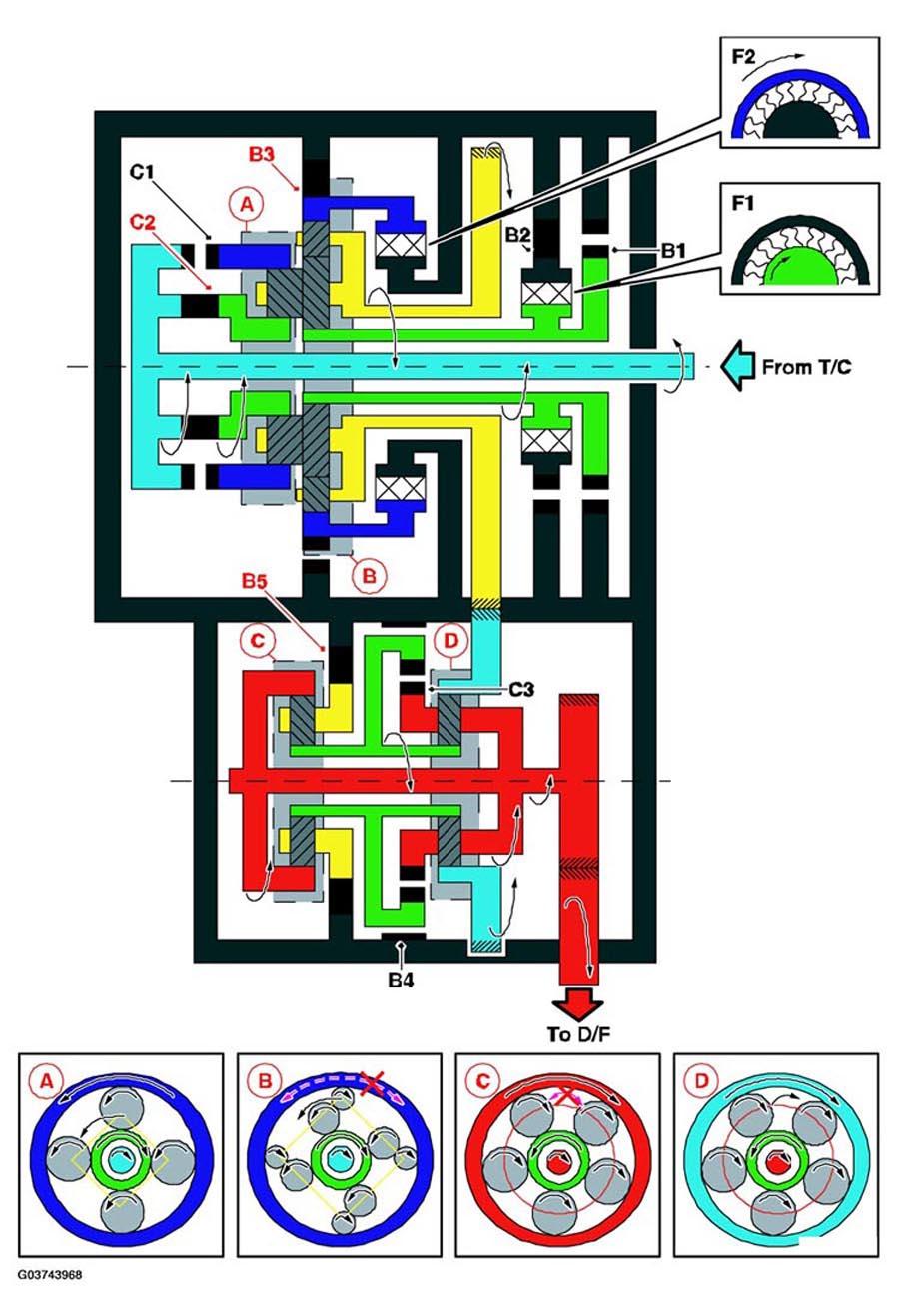

Fig 1: Identifying Reverse Gear Power Flow
G03743968Courtesy of SAAB-SCANIA OF AMERICA, INC.
GEAR POWER FLOW SEQUENCE

Position S1 S2 S3 S4 S5 C1 C2 C3 B1 B2 B3 B4 B5 F1 F2
R  Speed = 7 km/h  OFF OFF ON OFF ON OFF ON OFF OFF OFF ON OFF ON OFF OFF
R  Speed 7 km/h  ON OFF OFF OFF OFF OFF OFF OFF OFF OFF OFF OFF ON OFF OFF
