Cylinder head

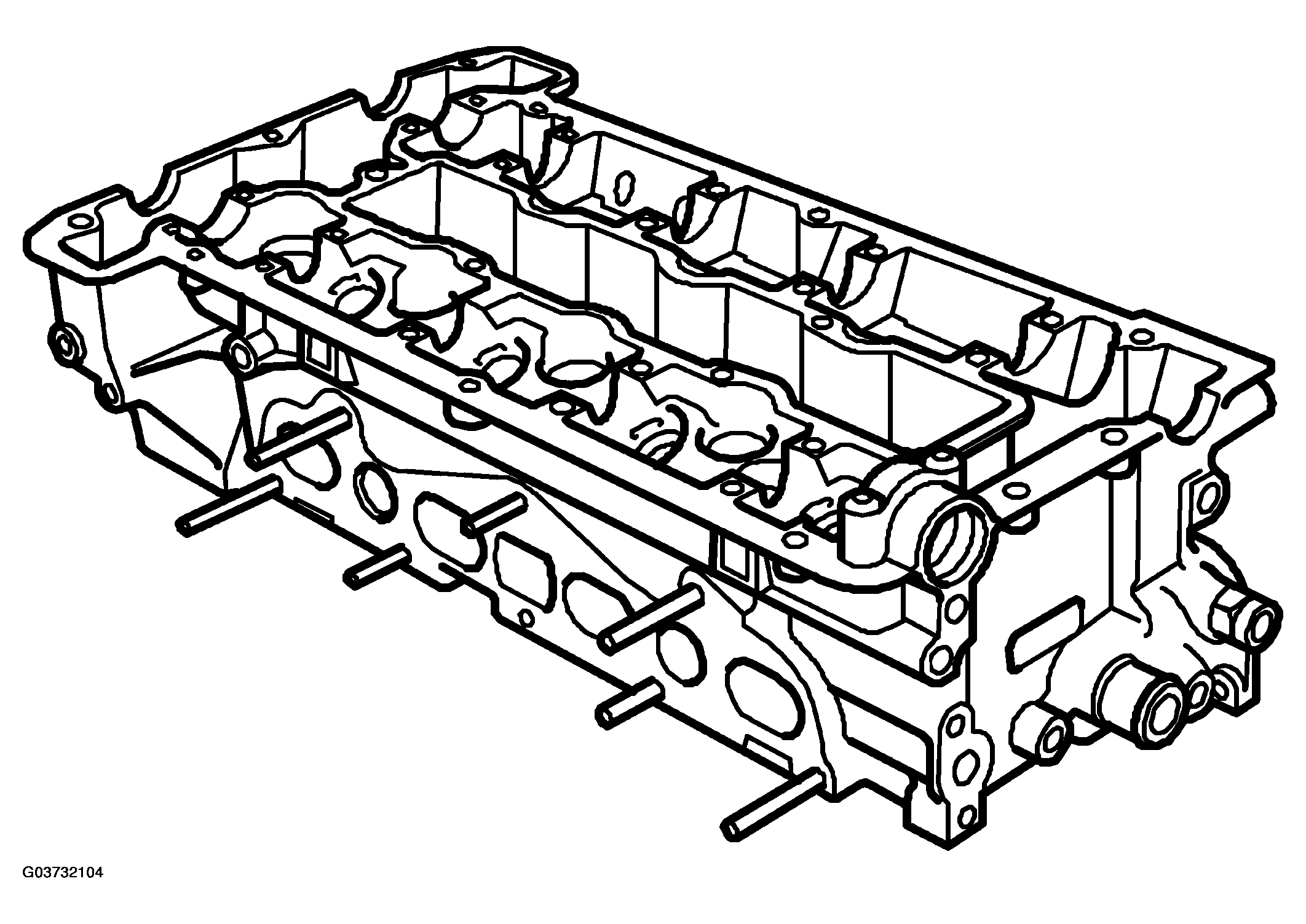

Fig 1: Identifying Cylinder Head
G03732104Courtesy of SAAB-SCANIA OF AMERICA, INC.
CYLINDER HEAD TECHNICAL SPECIFICATION

Height, new cylinder head 139.4 - 139.6 mm
Height, minimum after regrinding 139.0 mm
