Control values, pressure

CONTROL VALUES, PRESSURE SPECIFICATION

  B205 B235
Compression ratios 8.8: 1 9.3: 1
Compression, maximum variation between cylinders 2.0 bar 2.0 bar
Nominal compression 12 bar 14 bar

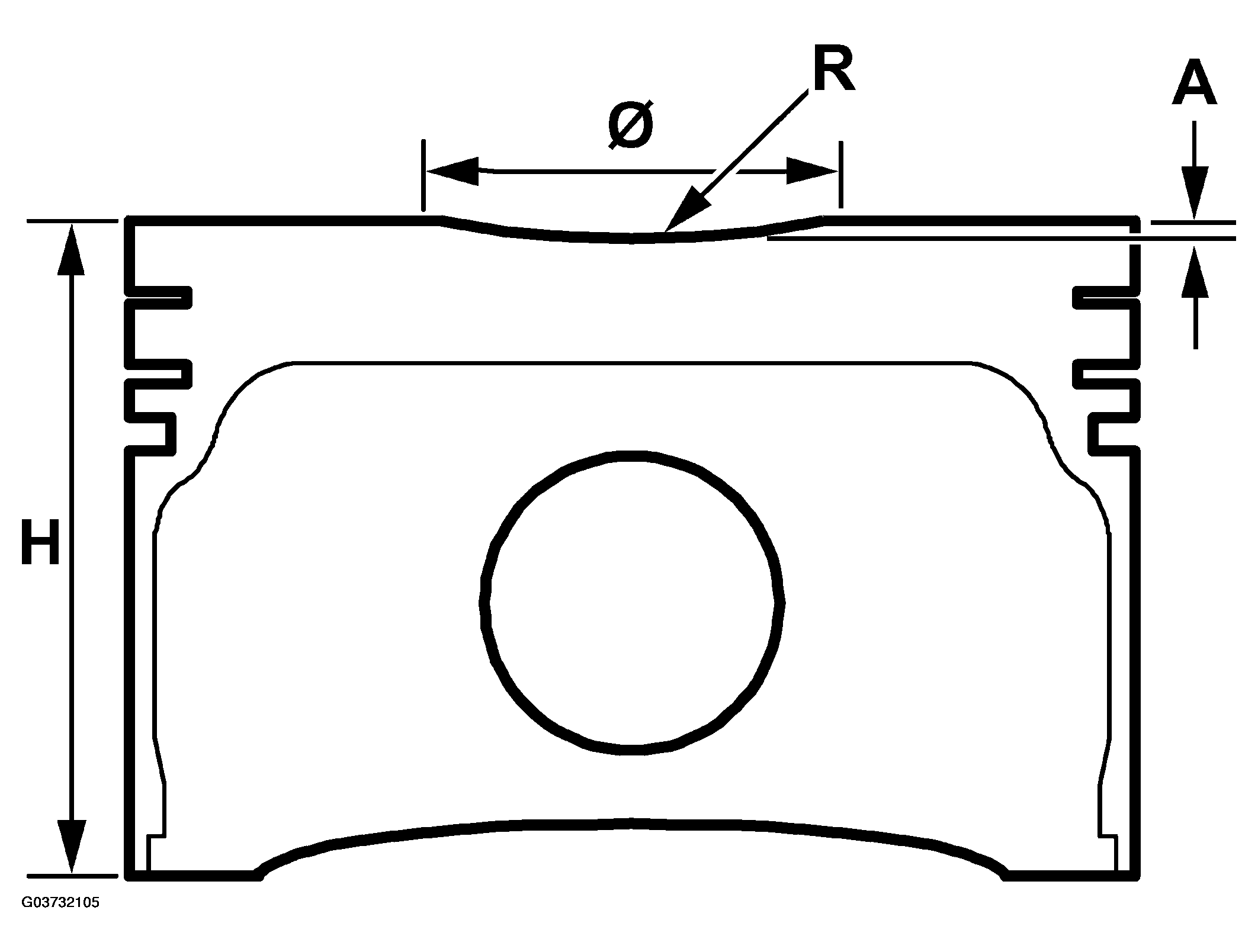

Fig 1: Measuring Piston Diameter
G03732105Courtesy of SAAB-SCANIA OF AMERICA, INC.

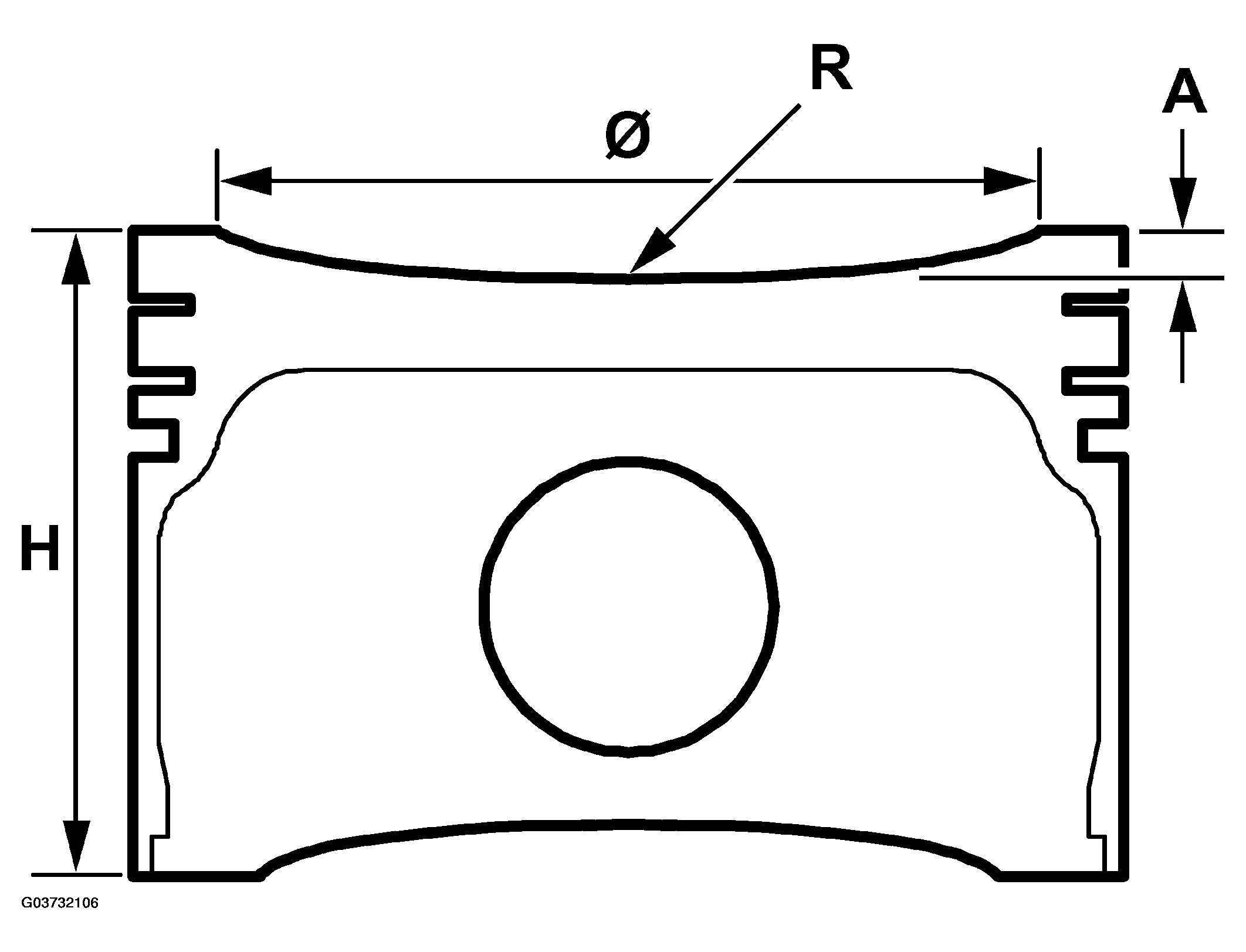

Fig 2: Measuring Piston Diameter
G03732106Courtesy of SAAB-SCANIA OF AMERICA, INC.
