Torque and power graphs: B235L
220hp

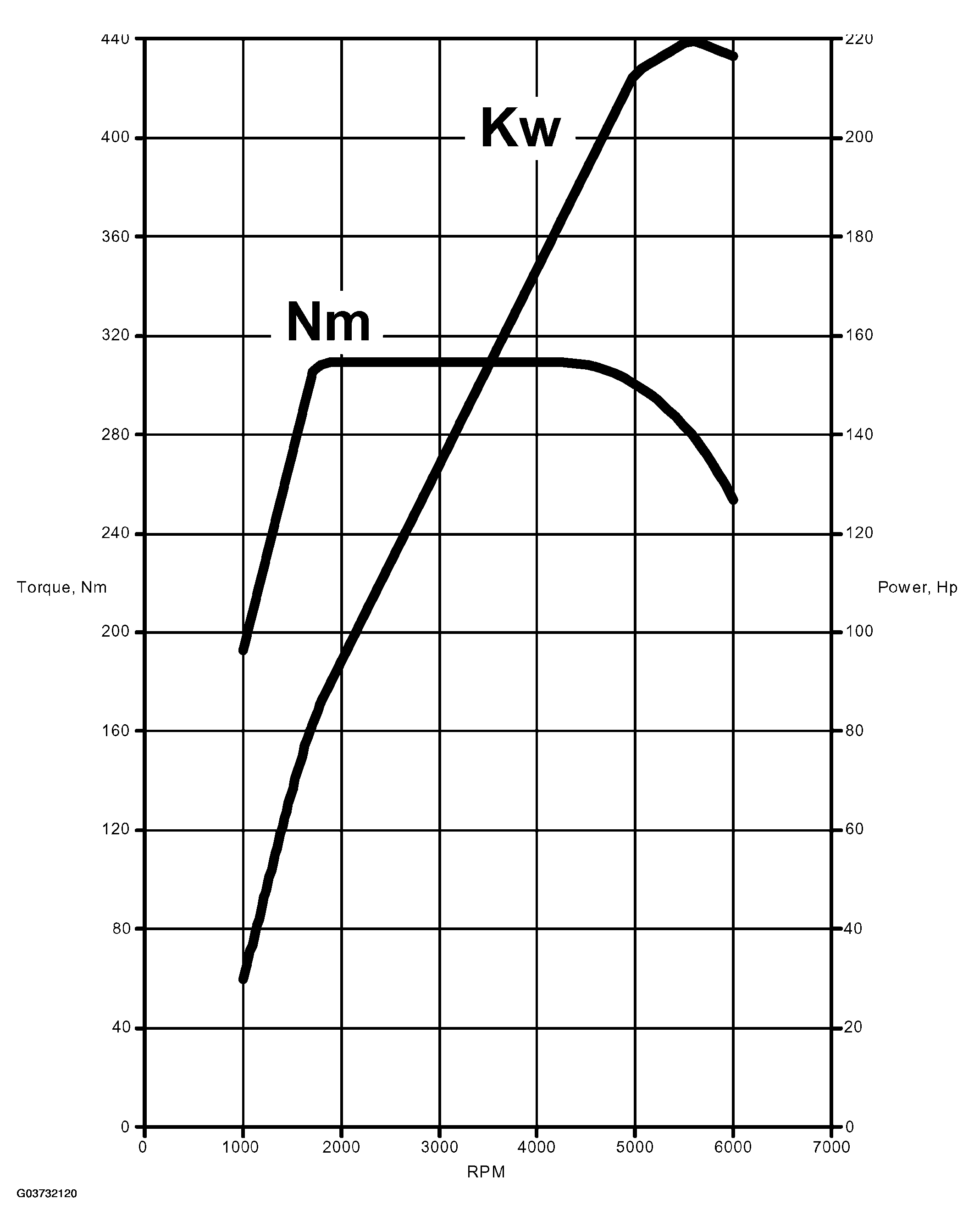

Fig 1: Torque And Power Graph (4 Of 4)
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Courtesy of SAAB-SCANIA OF AMERICA, INC.
