To remove

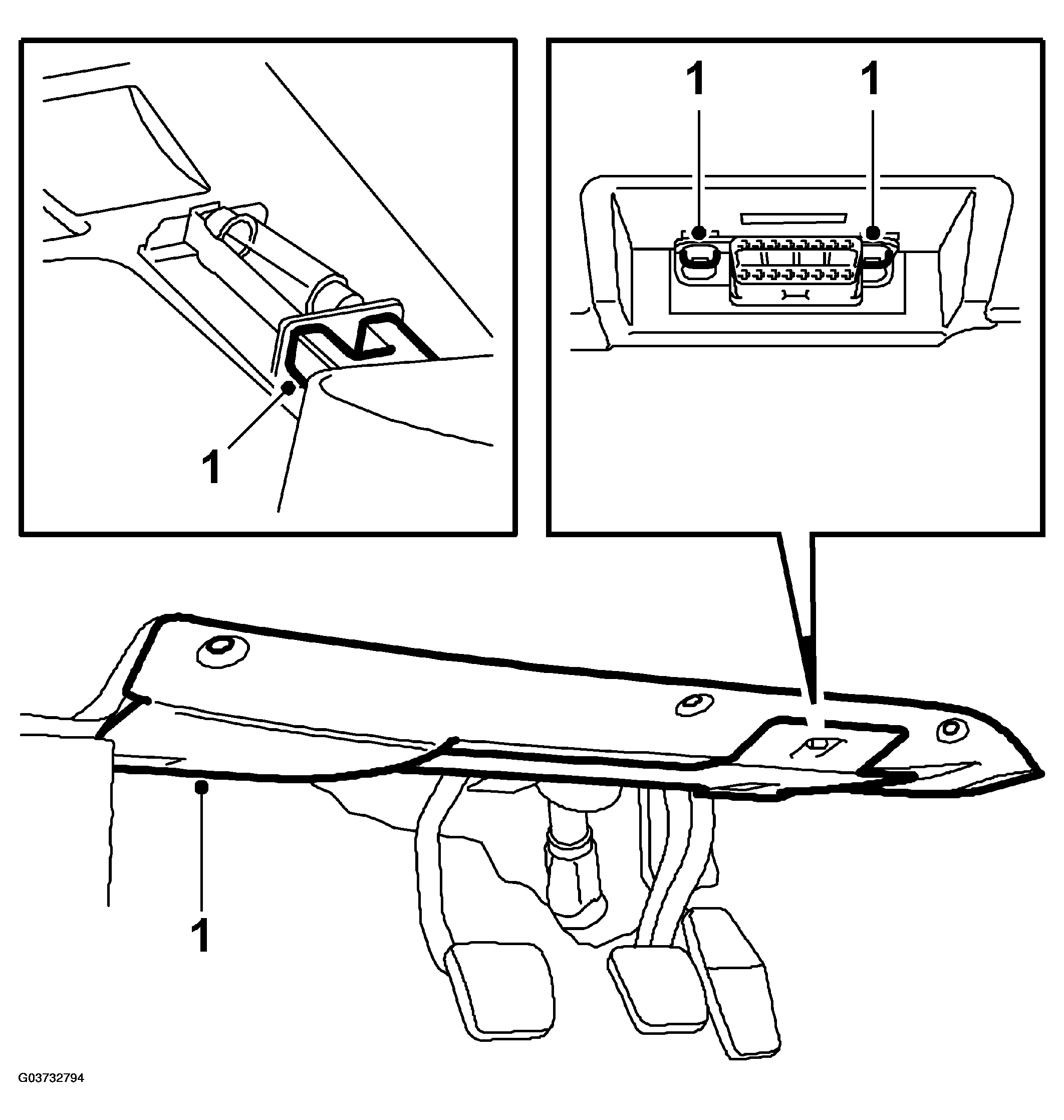

Remove the pedal bracket cover by undoing the 3 screws and the clip. Tilt the cover and carefully pull it out. Pay attention to the cables for the diagnostic tool data link connector and the lighting.

Fig 1: Illustration For Step 1
Courtesy of SAAB-SCANIA OF AMERICA, INC.

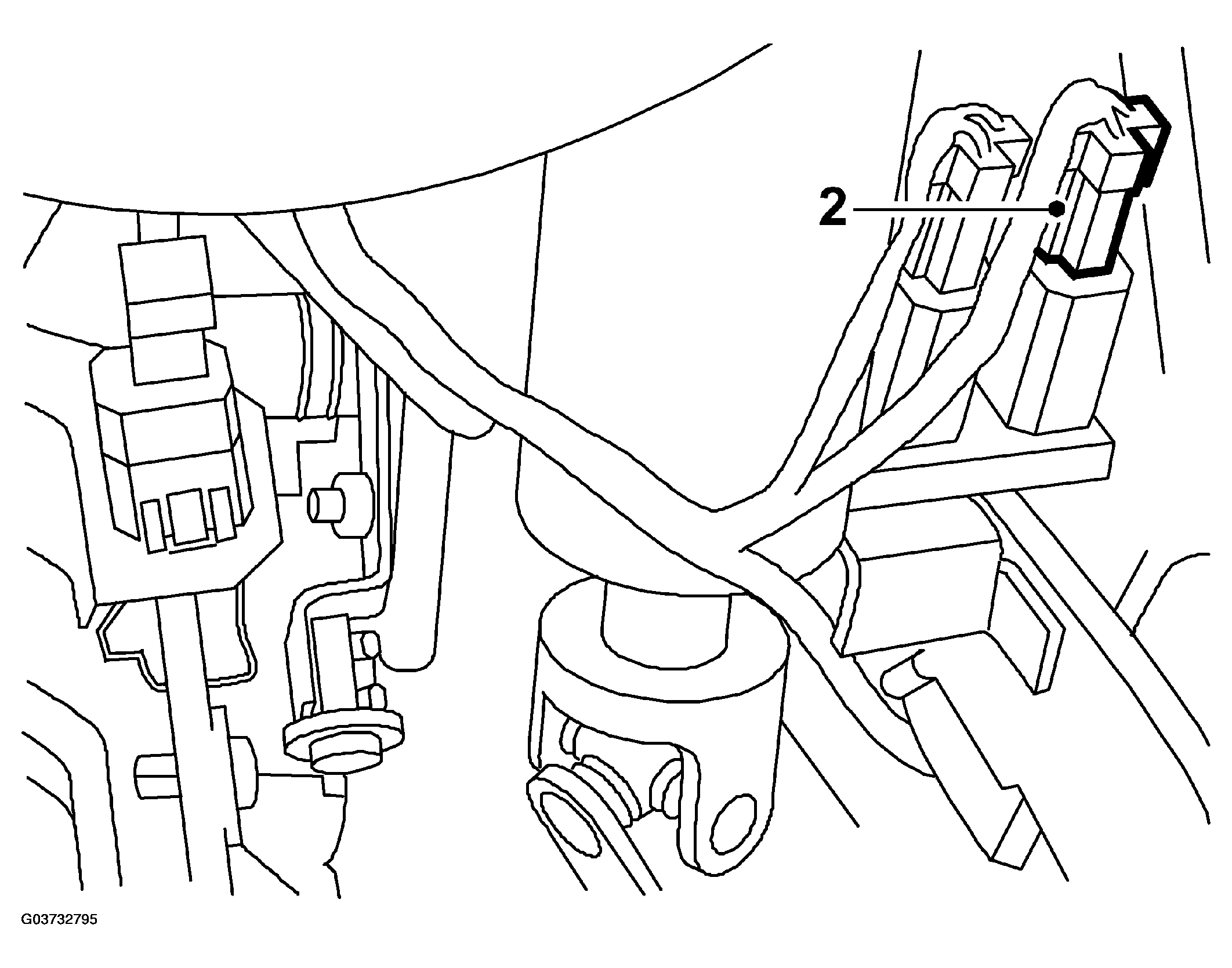

Carefully turn switch 190° clockwise and pull it out of the holder.

Fig 2: Illustration For Step 2
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Unplug the connector
