To fit

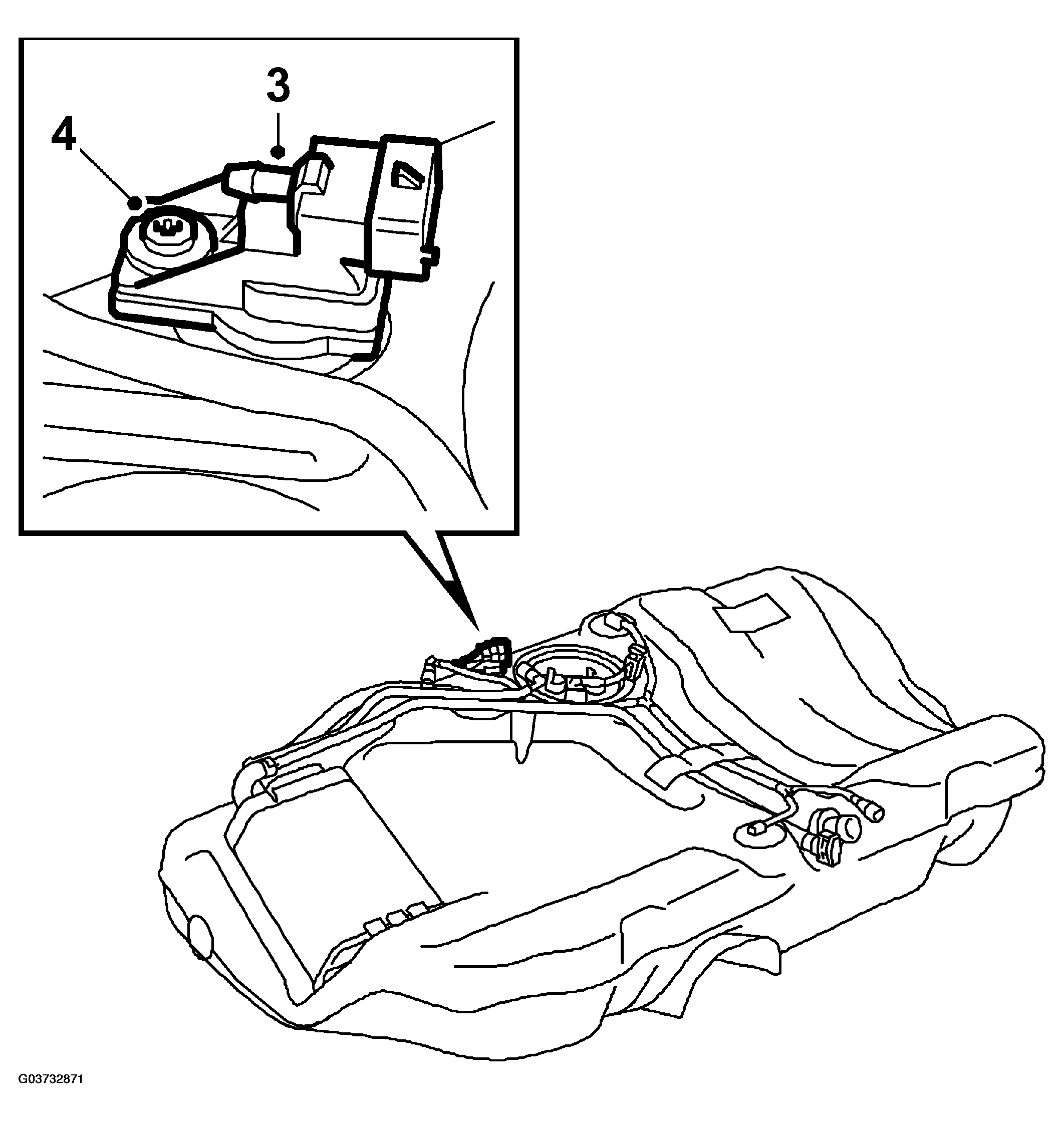

Fig 1: Illustration For Steps 3 To 4
G03732871Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Make sure the sealing surfaces are clean.
  2. Apply acid-free vaseline or equivalent to the O-ring.
  3. Fit the pressure sensor.
  4. Tighten the screw.
  5. Fit the fuel tank, see ADJUSTMENT/REPLACEMENT , Fuel tank .
