To fit

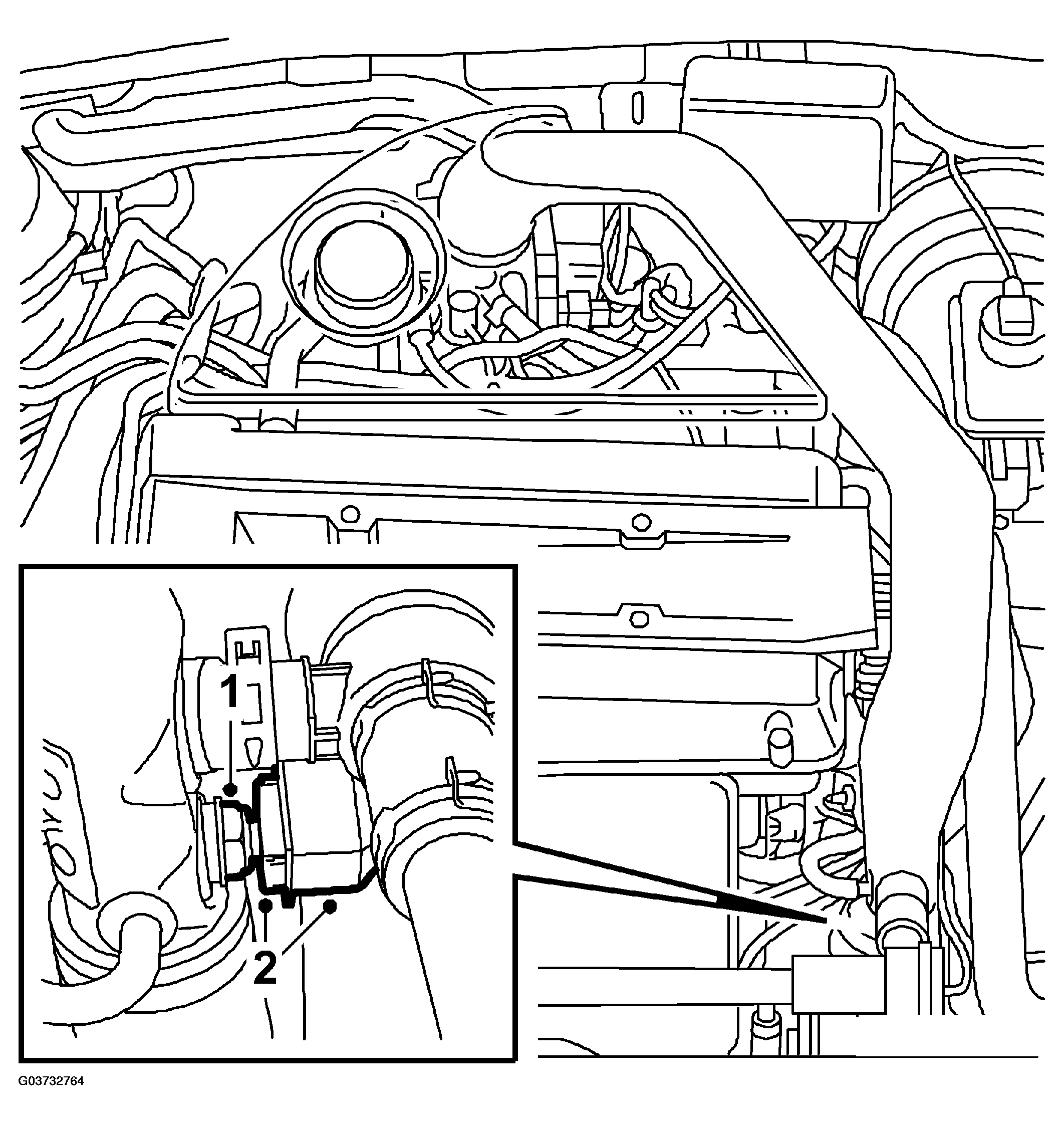

Fig 1: Illustration For Steps 1 To 2
G03732764Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Check the sealing washer and fit a new one if necessary.

    Apply vaseline (part no. 30 20 271) or equivalent to the sensor threads. Fit the sensor.

    Tightening torque 7 Nm (5 lbf ft)

  2. Spray the connector with Kontakt 61 (part no. 30 04 520). Plug in the connector.
  3. Fit the rubber cap.
