To remove

  1. Remove the engine cover.

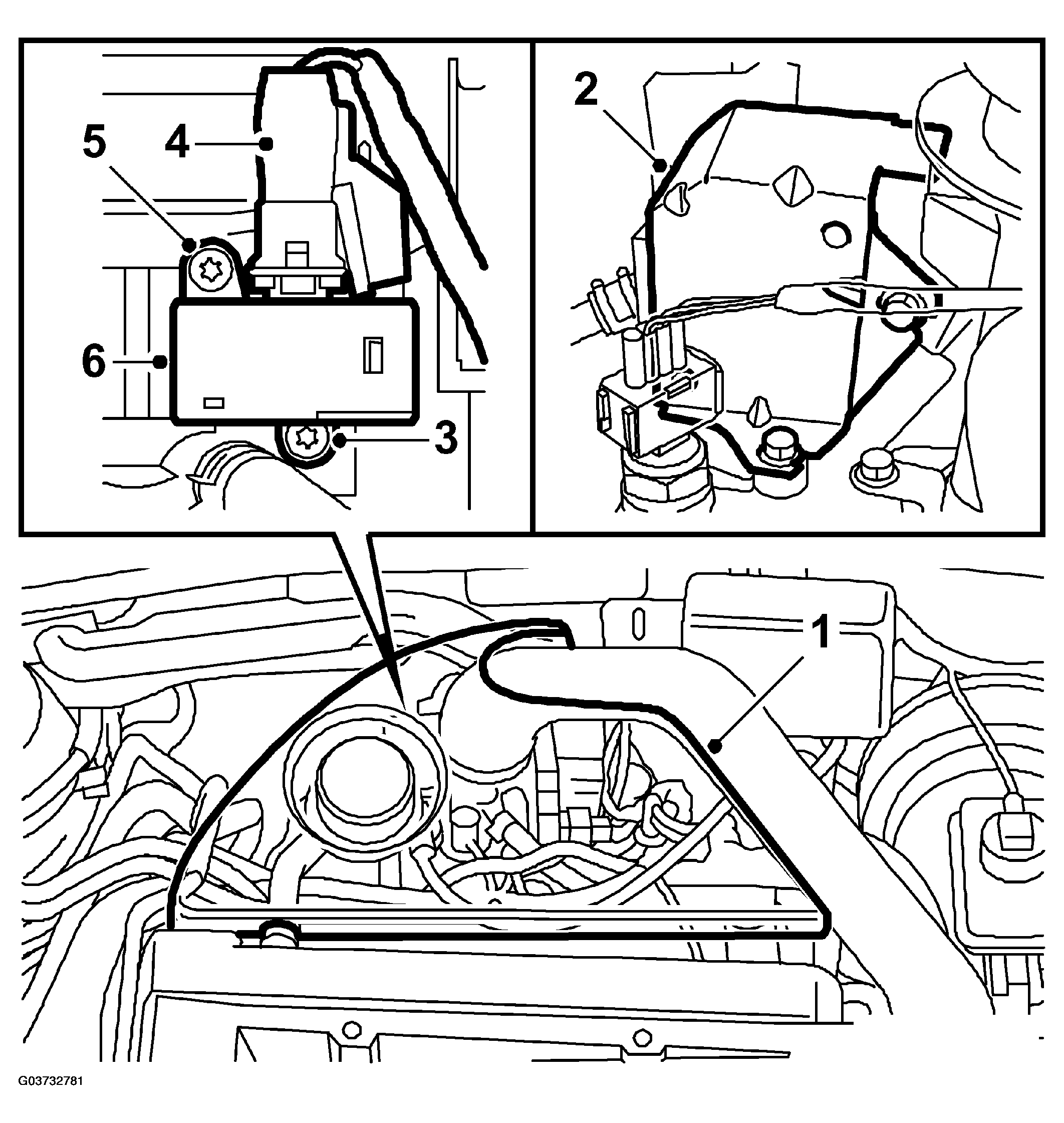

    Fig 1: Illustration For Steps 1 To 6
    G03732781Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Remove the cover on the throttle body pedal arm.
  3. Undo the lower bolt (it may be difficult to reach), using a magnetic T15 bit.
  4. Remove the rubber seal and unplug the connector.
  5. Remove the upper screw.
  6. Remove the solenoid. (Not available as a separate spare part)
