To remove

  1. Remove the cover over the engine harness connector.

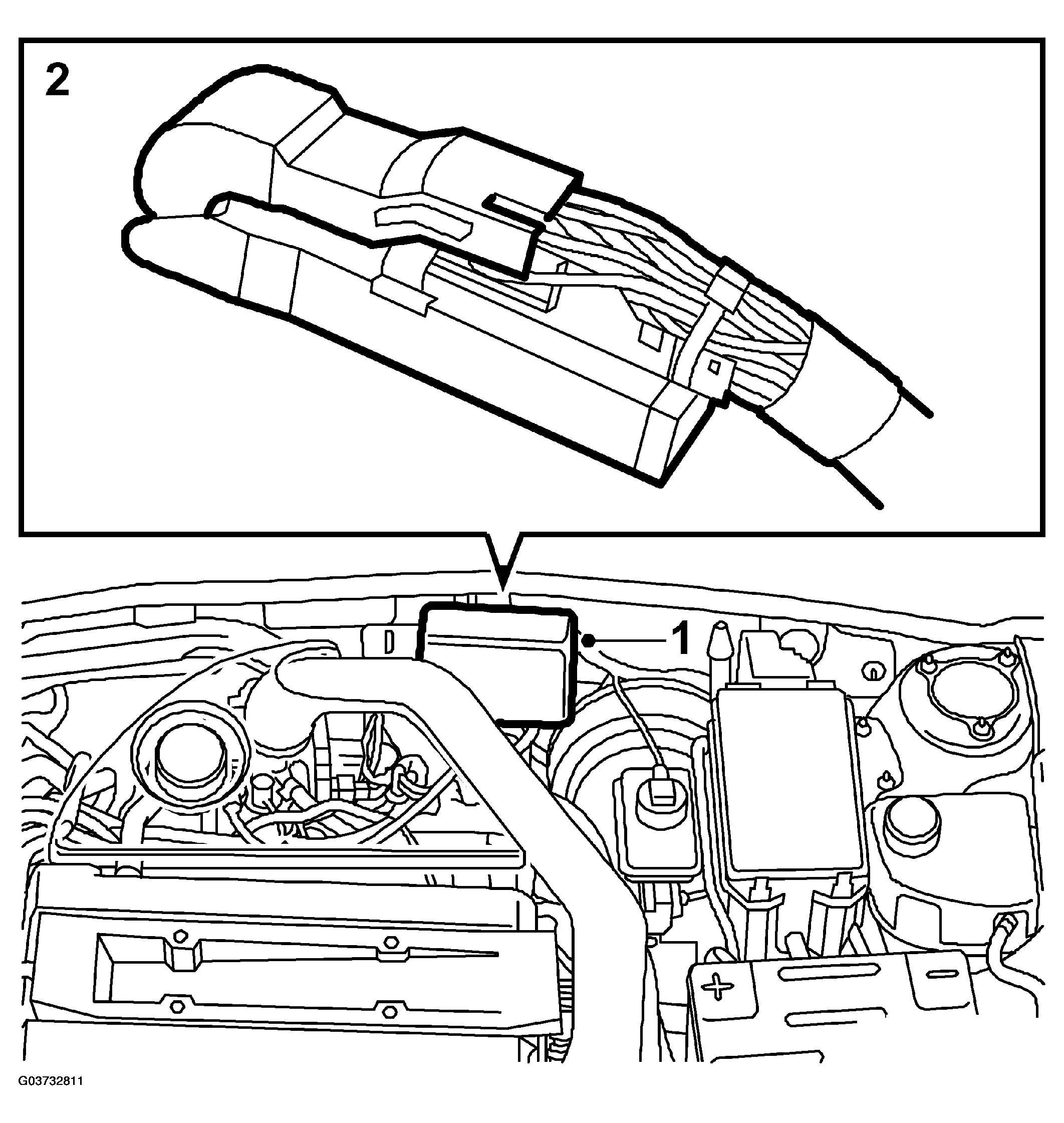

    Fig 1: Illustration For Steps 1 To 2
    G03732811Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Unplug the upper multi-connector.
  3. Unplug the two pin connector from the control valve.

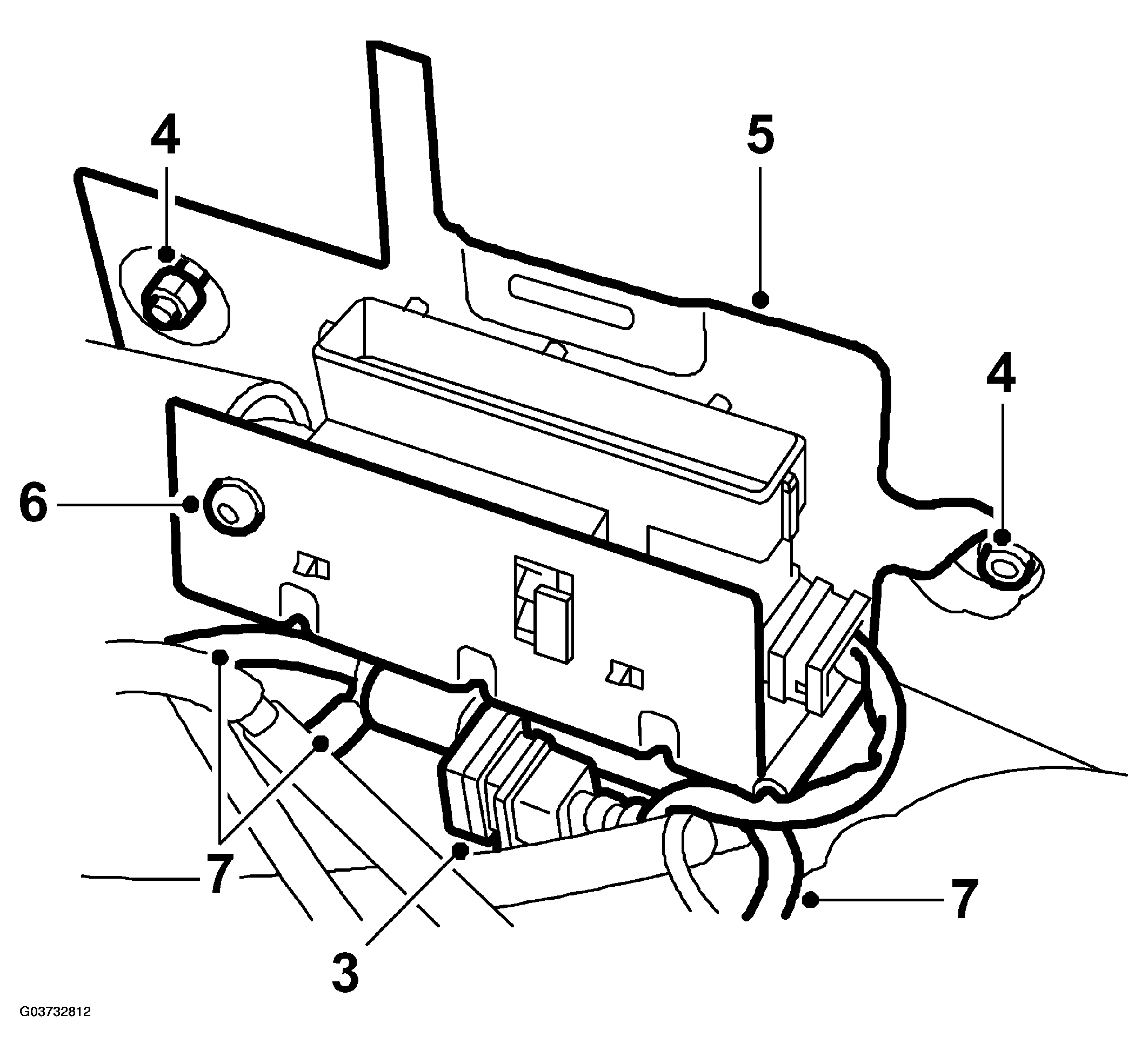

    Fig 2: Illustration For Steps 3 To 7
    G03732812Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Unscrew both retaining nuts and loosen the windscreen cover weatherstrip.
  5. Carefully pull out the mounting plate and unhook it from edge of the bulkhead. Lift up the unit.
  6. Unplug the lower multi-connector.
  7. Mark the vacuum hoses and detach them from the valve.
  8. Lift out the holder and drill away the pop rivets.

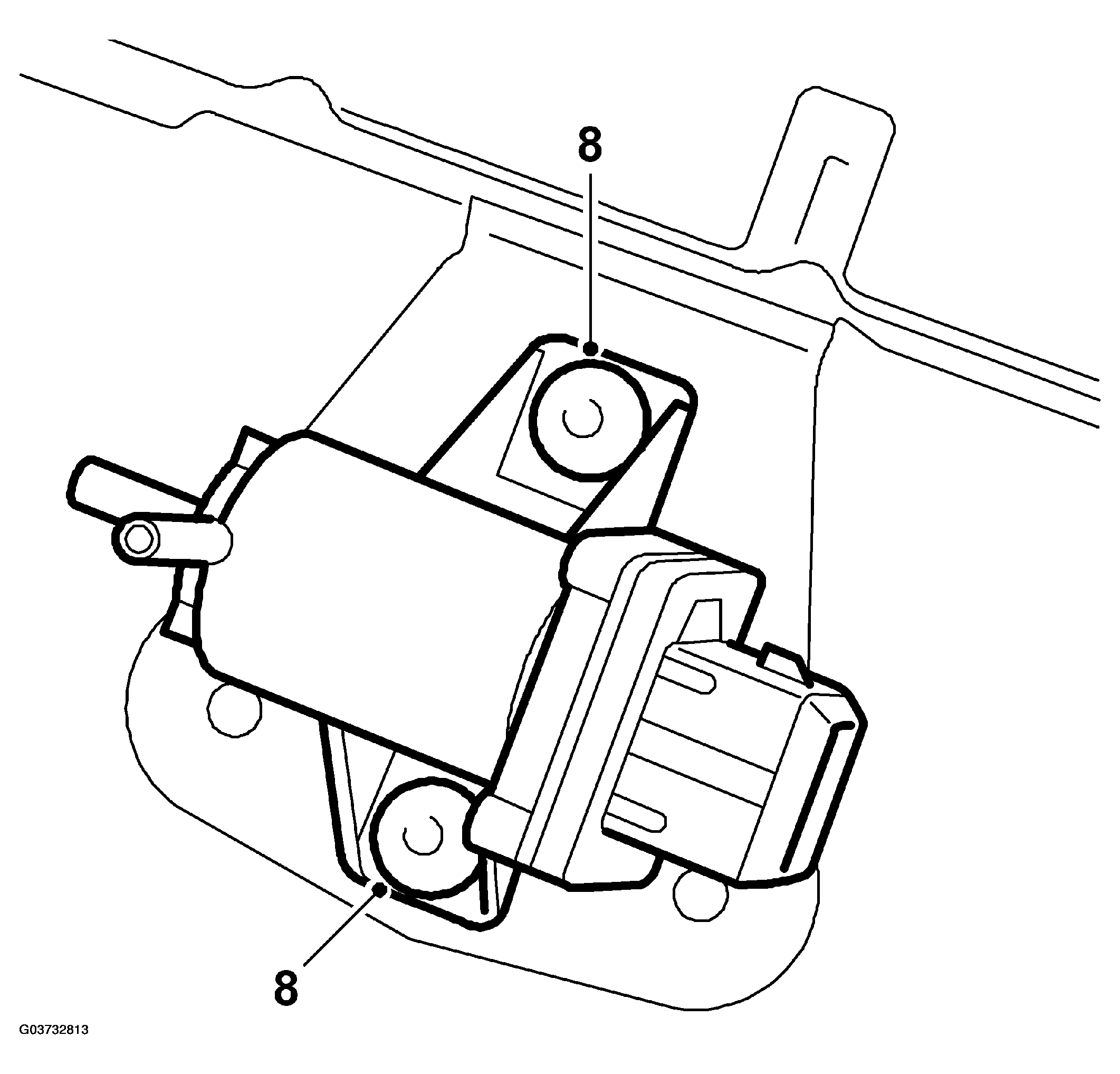

    Fig 3: Illustration For Step 8
    G03732813Courtesy of SAAB-SCANIA OF AMERICA, INC.
