Intake air temperature sensor (407)

4 cylinder petrol

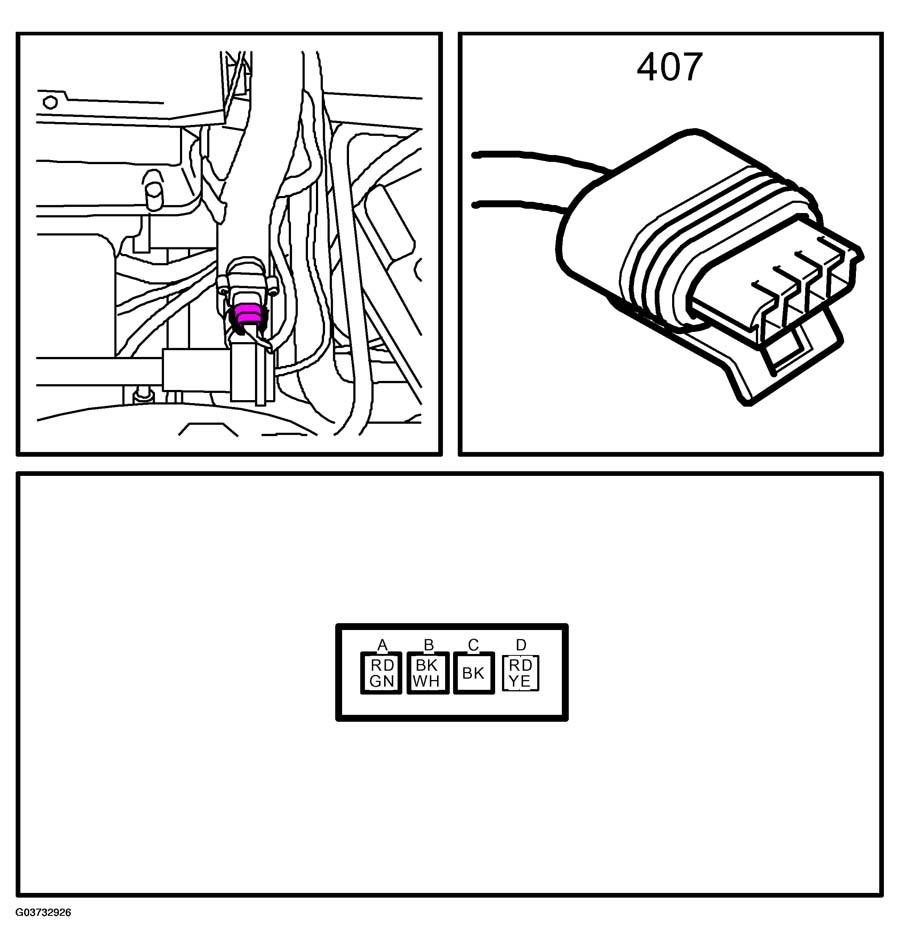

Fig 1: Identifying Intake Air Temperature Sensor (4 Cylinder Petrol) Connector Pinout
G03732926Courtesy of SAAB-SCANIA OF AMERICA, INC.

4-cyl diesel

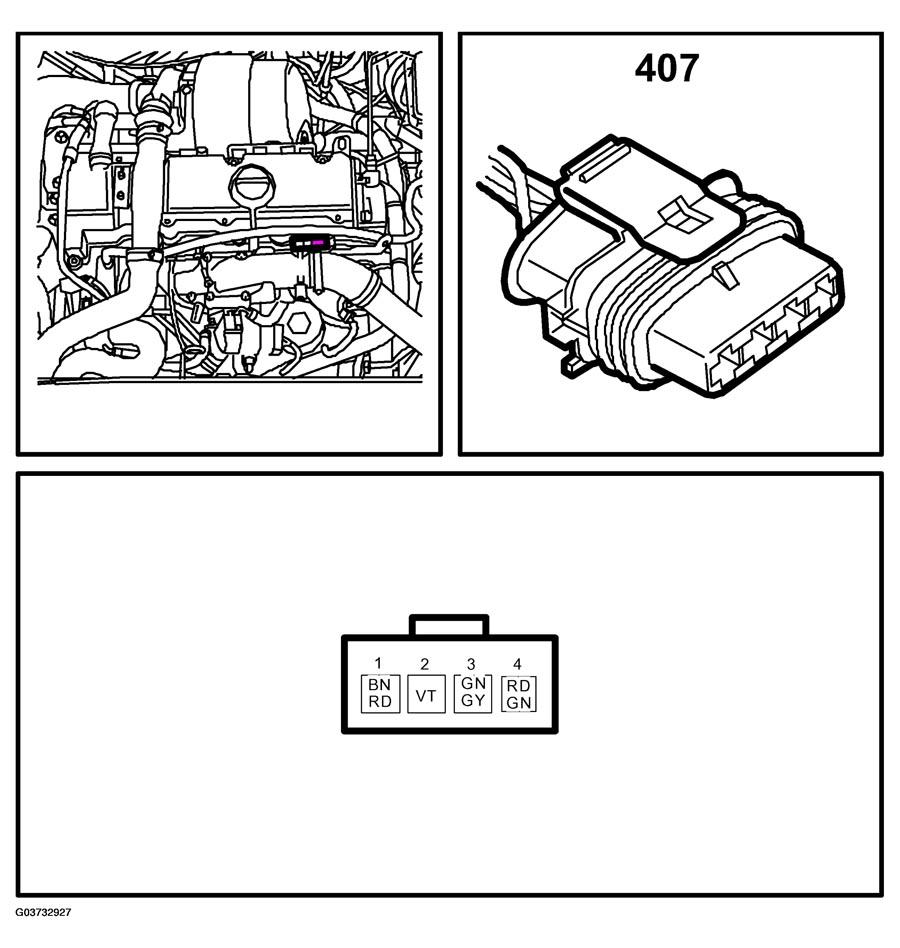

Fig 2: Identifying Intake Air Temperature Sensor (4-CYL DIESEL) Connector Pinout
G03732927Courtesy of SAAB-SCANIA OF AMERICA, INC.

V6 diesel

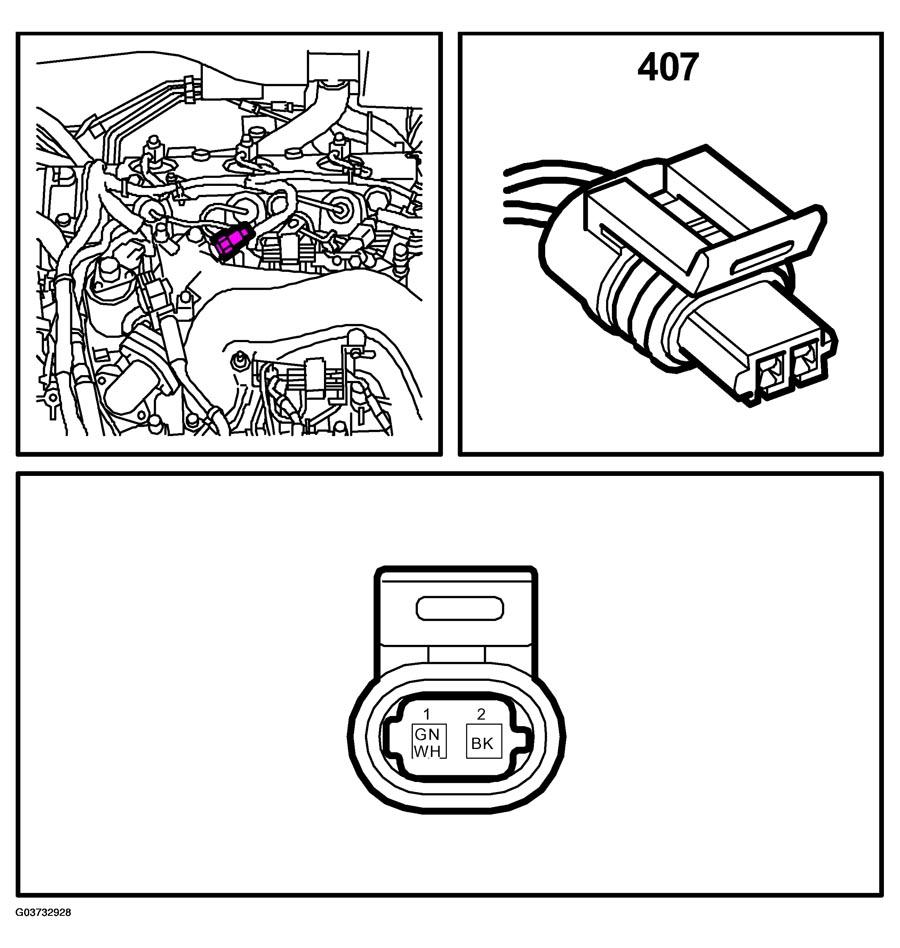

Fig 3: Identifying Intake Air Temperature Sensor (V6 Diesel) Connector Pinout
G03732928Courtesy of SAAB-SCANIA OF AMERICA, INC.
