Main instrument unit (540)

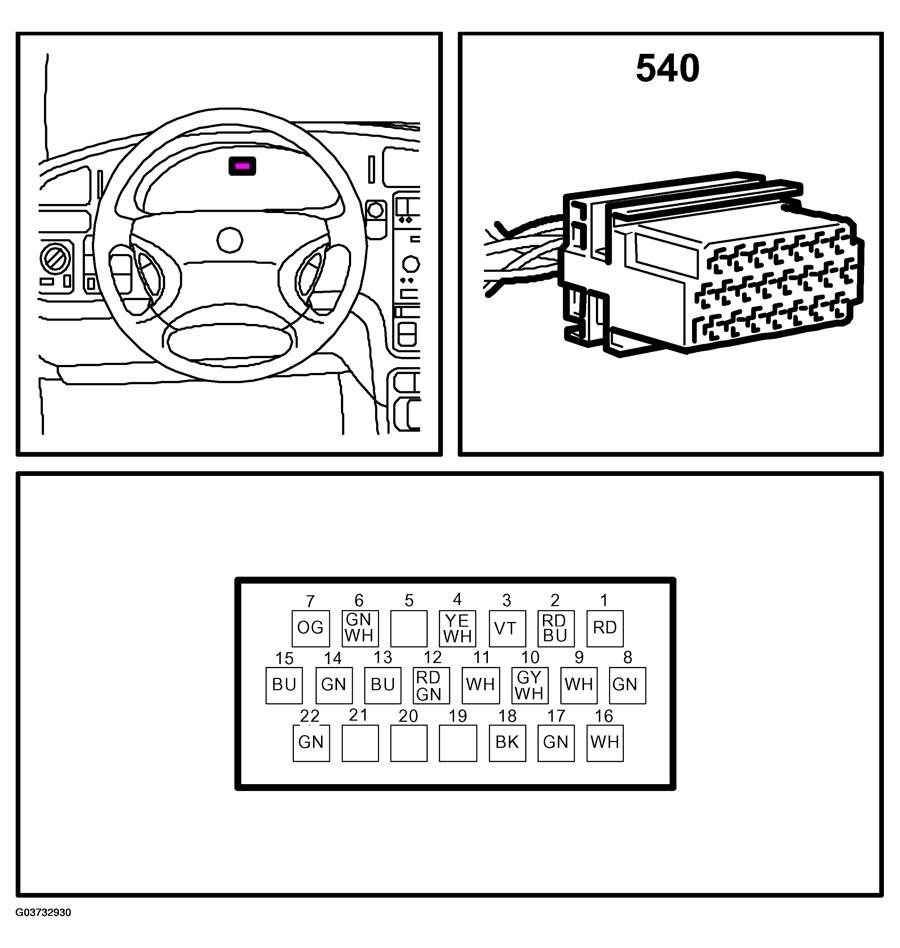

Fig 1: Identifying Main Instrument Unit Connector Pinout
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Courtesy of SAAB-SCANIA OF AMERICA, INC.
