EVAP close control valve (588)

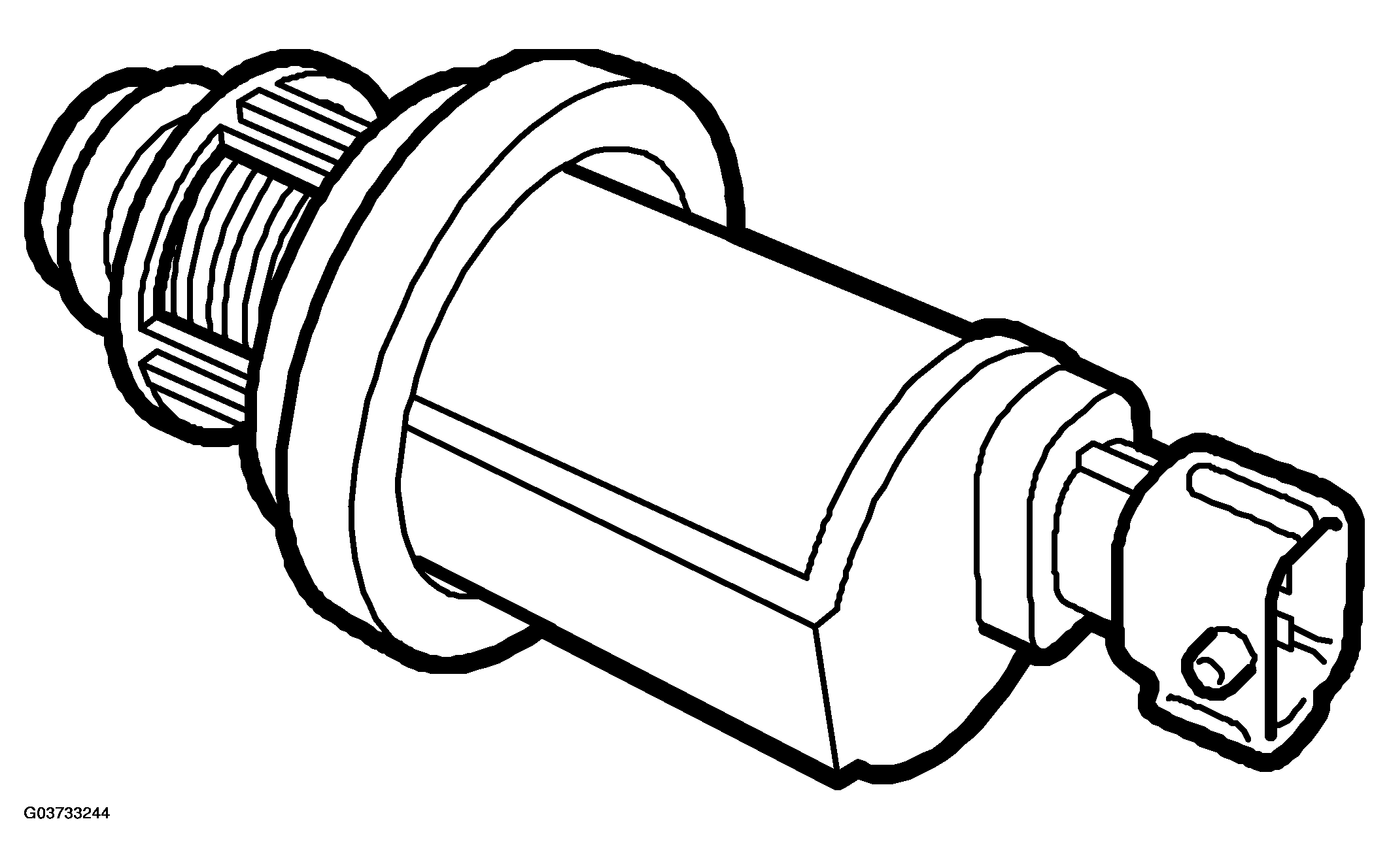

Fig 1: Identifying EVAP Close Control Valve
G03733244Courtesy of SAAB-SCANIA OF AMERICA, INC.

Present on certain models.

EVAP CLOSE CONTROL VALVE DESCRIPTION

Location   By fuel filler pipe
Type   Pierburg
Characteristics   Zero current open
Resistance at 20°C (68°F) Ohm 24.5+/-1.5
Power supply 12 V
