Fuel pump (323)

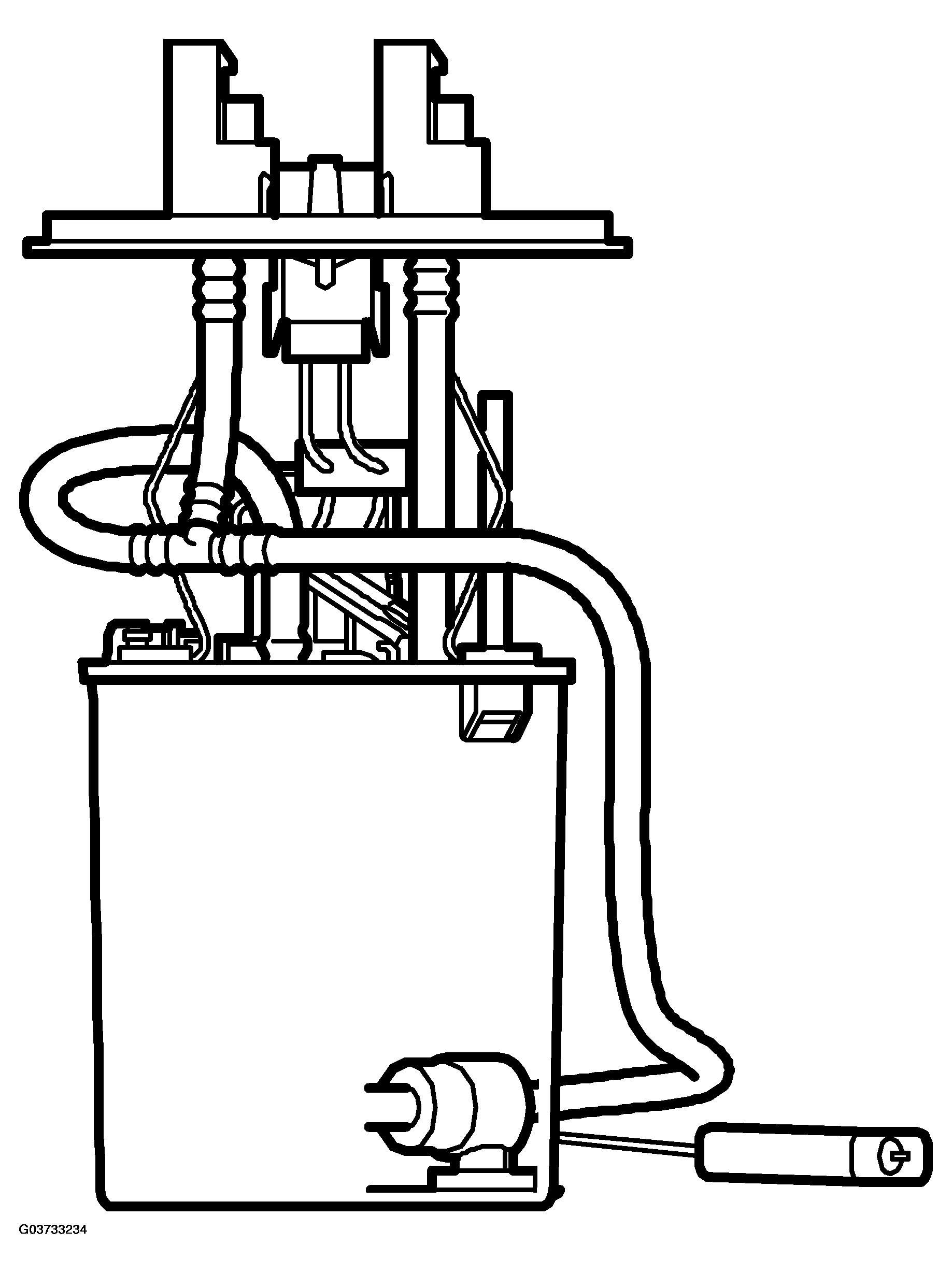

Fig 1: Identifying Fuel Pump

Courtesy of SAAB-SCANIA OF AMERICA, INC.

FUEL PUMP DESCRIPTION

Location		In the fuel tank
Capacity at 3.0 bar back pressure	ml/30 s	min 700
Resistance, level sensor	Ohm	Empty tank: 50 +/- 1.5 Full tank: 425 +/- 6.5
Tightening torque, screw cap	Nm (lbf ft)	75 (55)
