Switch, cruise control (141)

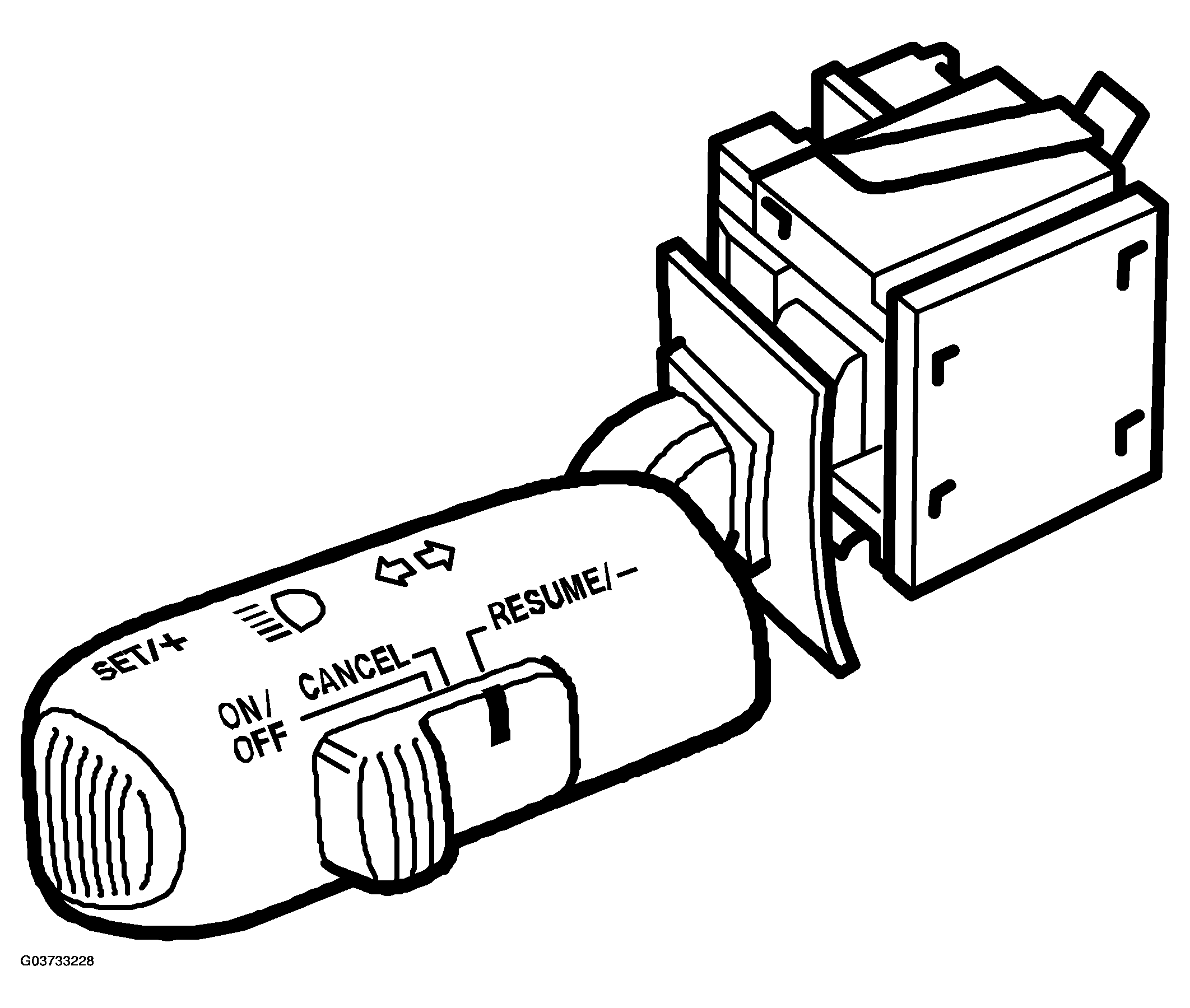

SWITCH - CRUISE CONTROL DESCRIPTION
| Location | Integrated in direction indicator stalk switch to left of steering wheel | ||||||
| Power supply +54 | Pin | 7 | |||||
| From switch pin | To control module pin | Input designation in diagnostic tool | SWITCH POSITION | ||||
| Zero position | ON/OFF | SET/+ | RESUME/- | CANCEL | |||
| 8 | 52 | A | 0 | 1 | 0 | 0 | 0 |
| 10 | 5 | B | 0 | 1 | 1 | 0 | 1 |
| 9 | 30 | C | 0 | 1 | 0 | 1 | 1 |
0 = open = OFF = 0V
1 = closed = ON = B+
