Rear Inner Remote



Rear Inner Remote

Removal
Remove the rear door trim.
Remove the sealing cover.

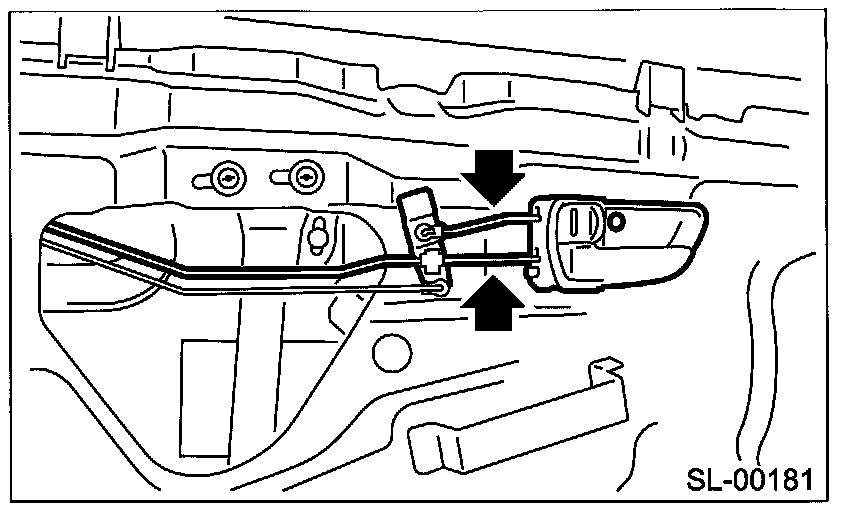

Remove a screw and two rod joints.
Remove the inner remote.







Installation
Install in the reverse order of removal.

NOTE: Make sure the inner remote works properly after installation.
