Control Valve and Harness Routing

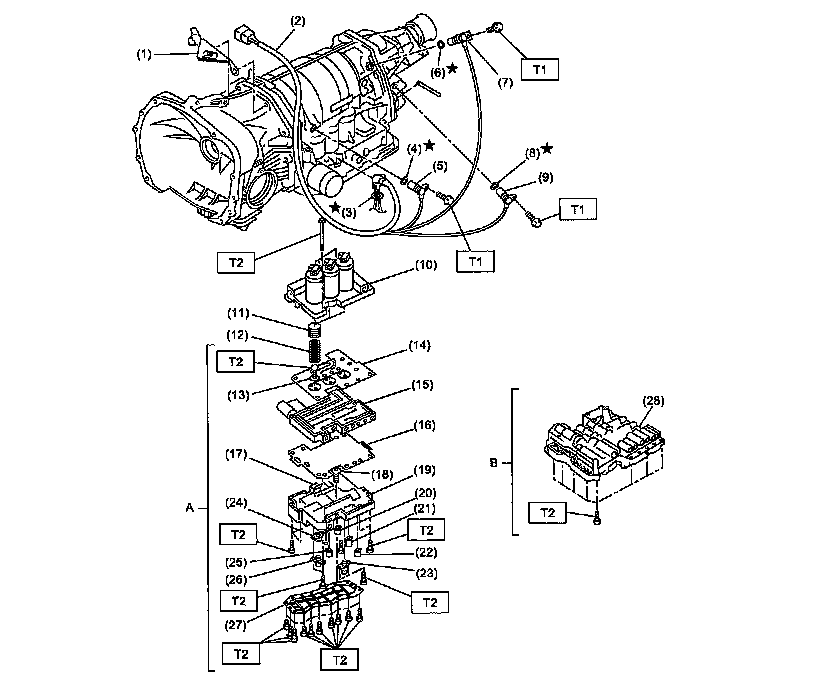

Control Valve and Harness Routing (Part 1):

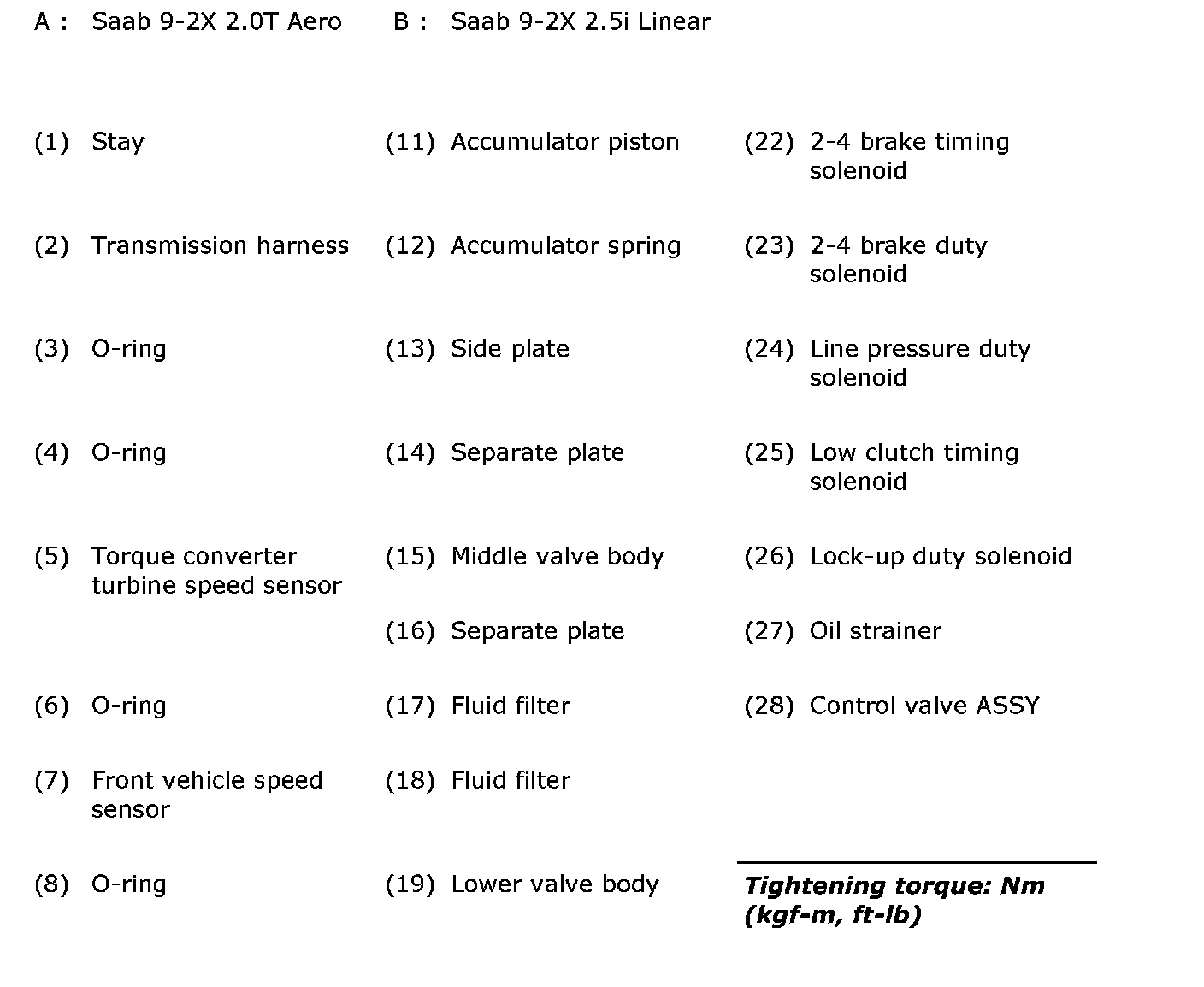

Control Valve and Harness Routing (Part 2):

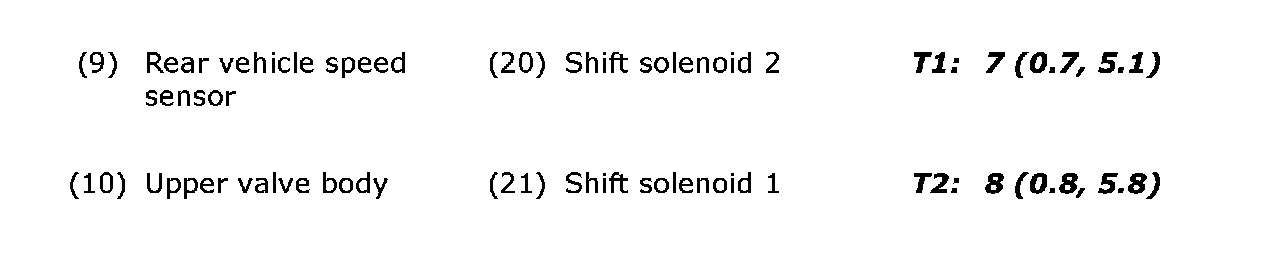

Control Valve and Harness Routing (Part 3):
