Reduction Gear With MPT

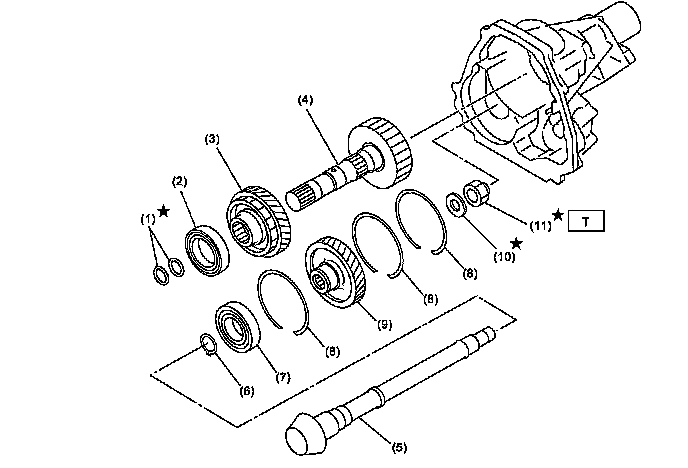

Reduction Gear With MPT (Part 1):

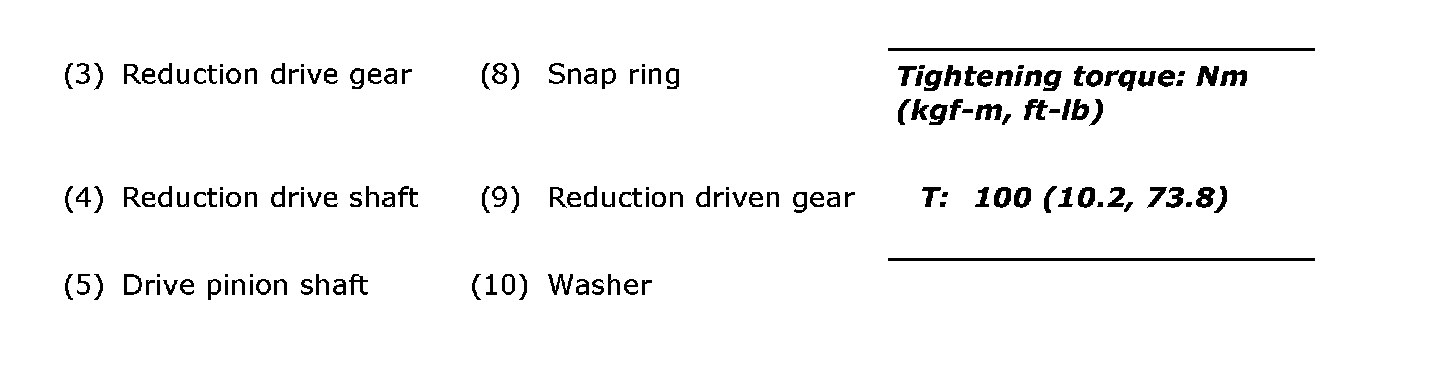

Reduction Gear With MPT (Part 2):

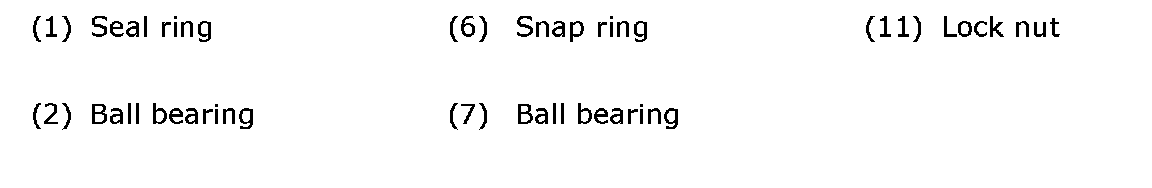

Reduction Gear With MPT (Part 3):
