Main Shaft Assembly

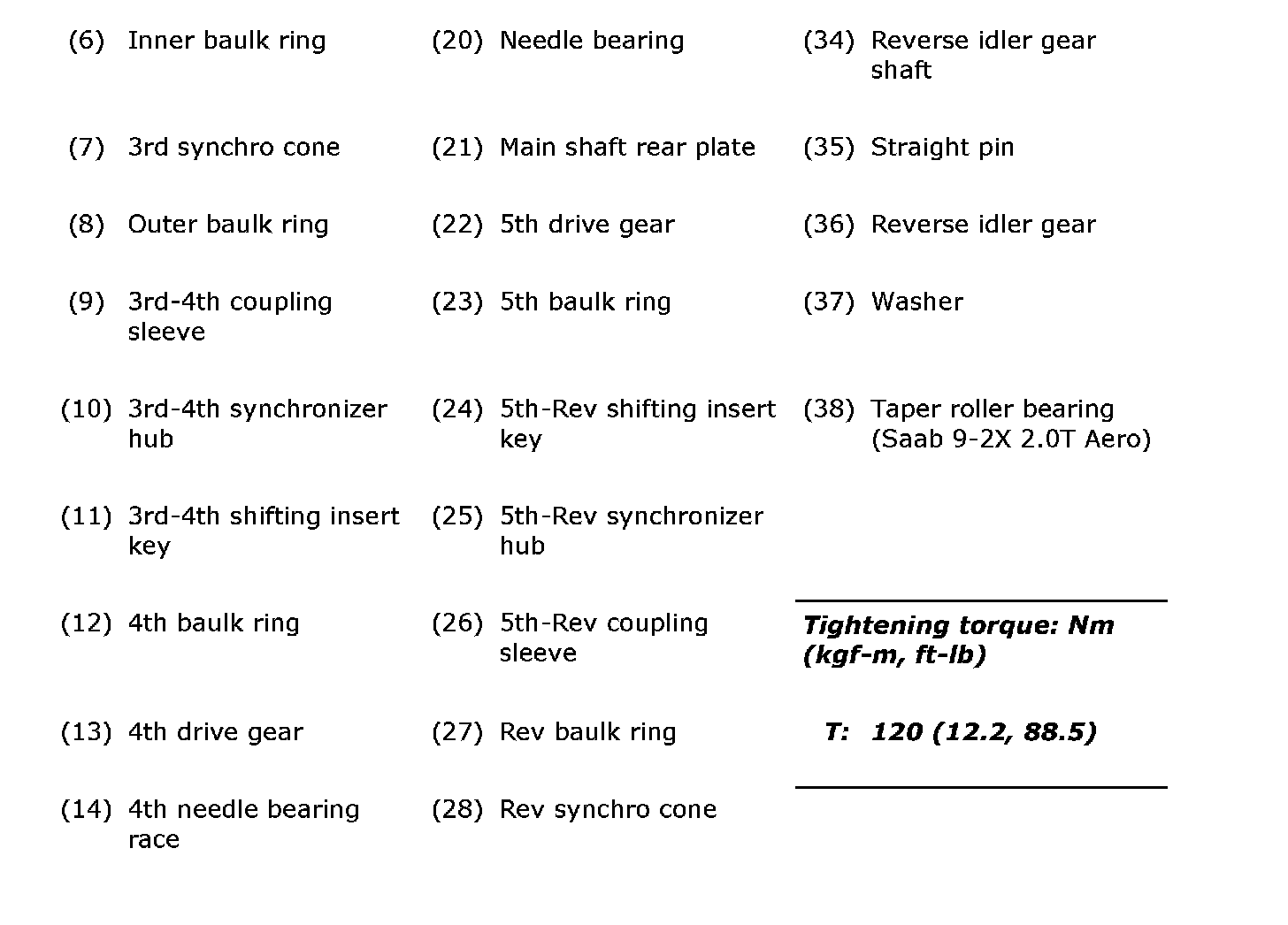

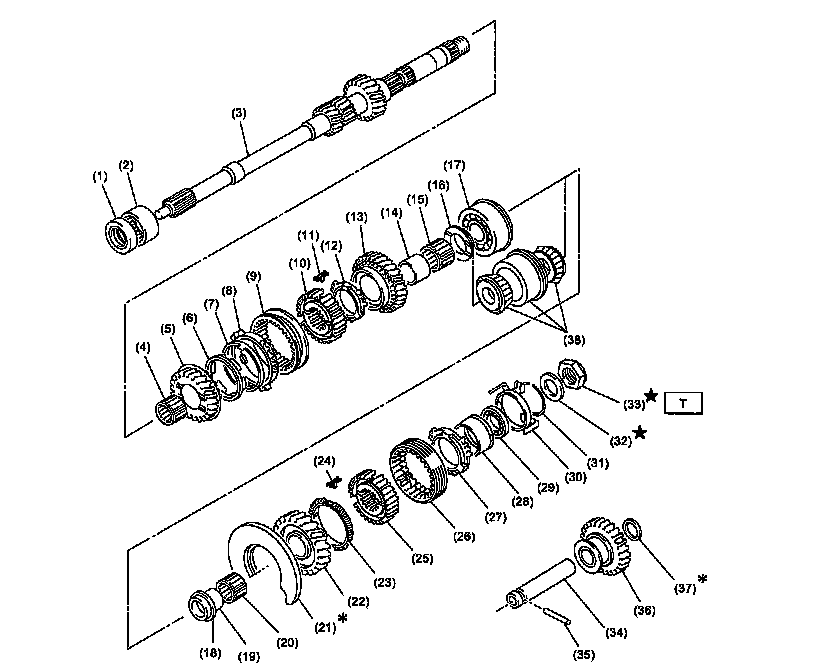

Main Shaft Assembly (Part 1):
Main Shaft Assembly (Part 2):
Main Shaft Assembly (Part 3):
