Service Data

General Description

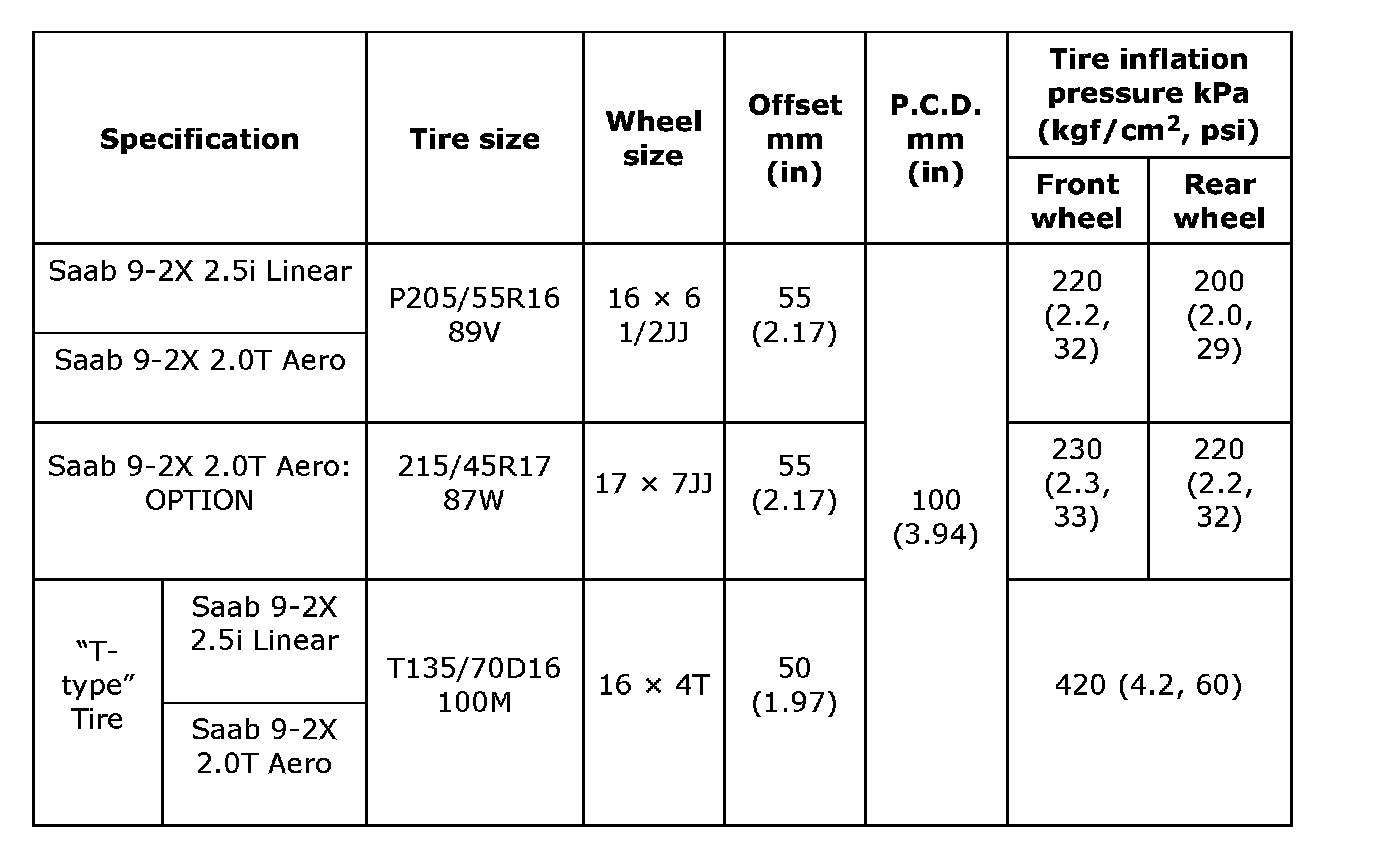

SPECIFICATION

Wheel And Tires:

Wheel and Tire Size

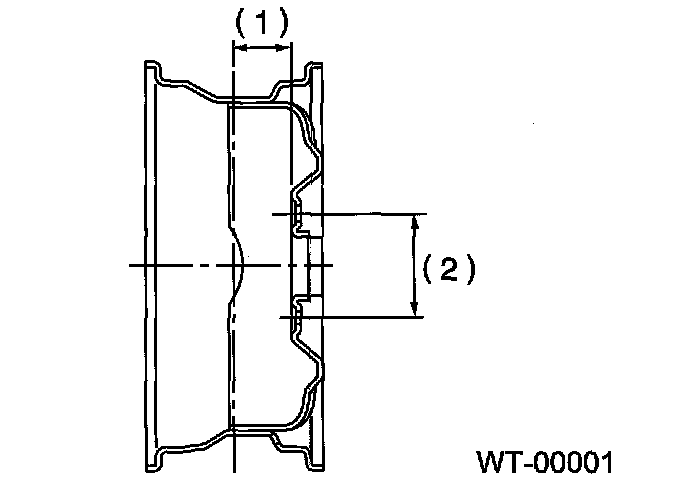

Adjusting (Part 6):

(1) Offset
(2) P.C.D.

Note:
^ Adjust the tire pressure to 250 kPa (2.5 kgf/cm2, 36 psi) when running at more than 160 km/h (99.4 MPH) with 5 persons and load.
^ "T-type" tire for temporary use is supplied as a spare tire.

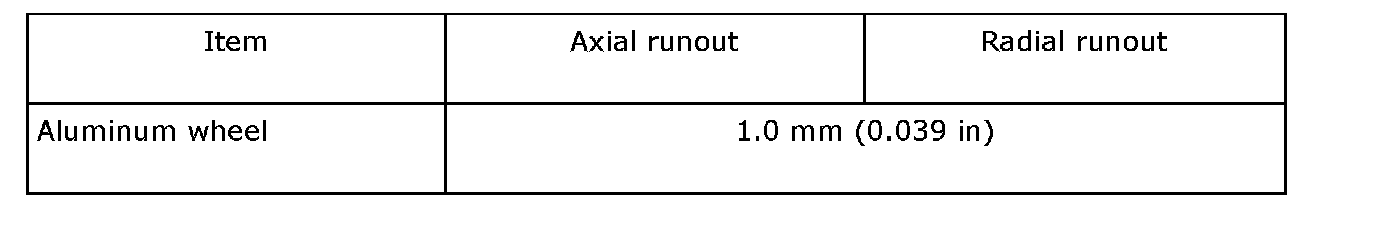

SERVICE DATA

Service Data:
