Data Link Connector: Diagrams

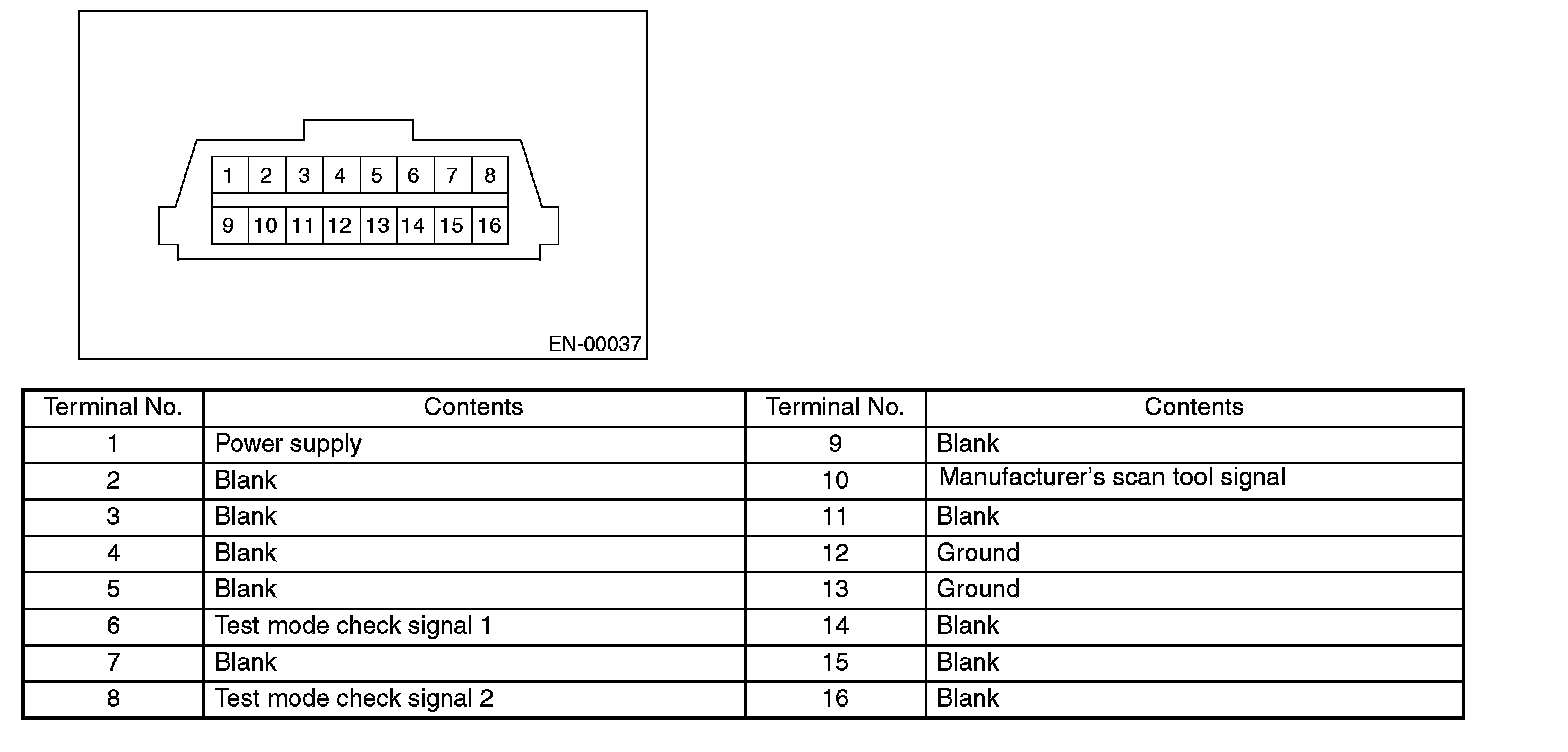

Data Link Connector






NOTE: This connector is used both for OBD II general scan tools and the Manufacturer's scan tool.

CAUTION: Do not connect any scan tools other than the OBD II general scan tools and the Manufacturer's scan tool, because the circuit for the Manufacturer's scan tool may be damaged.
