Fuel Tank Pressure Sensor: Service and Repair

Fuel Tank Pressure Sensor

REMOVAL

WARNING:
- Place "NO FIRE" signs near the working area.
- Be careful not to spill fuel.

1. Remove the fuel tank.

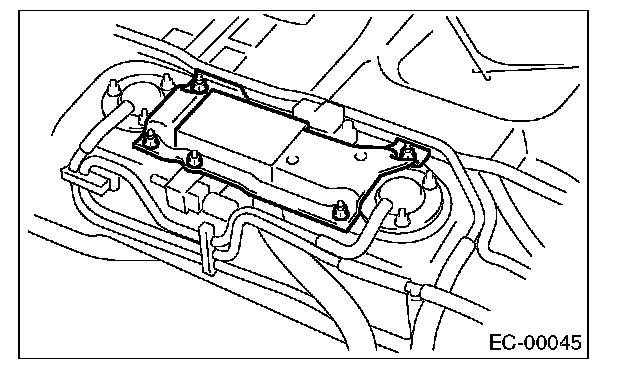

2. Remove the protector cover.
3. Disconnect the connector from fuel tank pressure sensor.

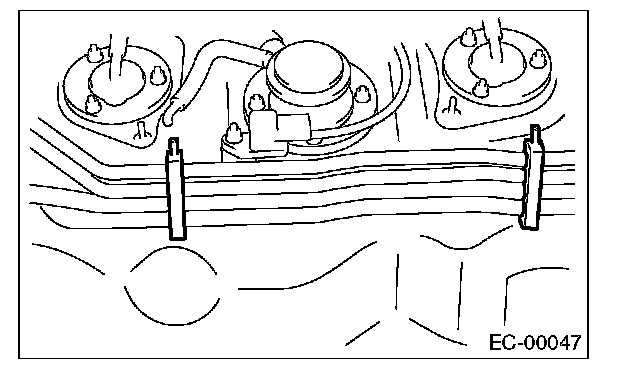

4. Release the clips which hold the fuel pipes onto fuel tank.

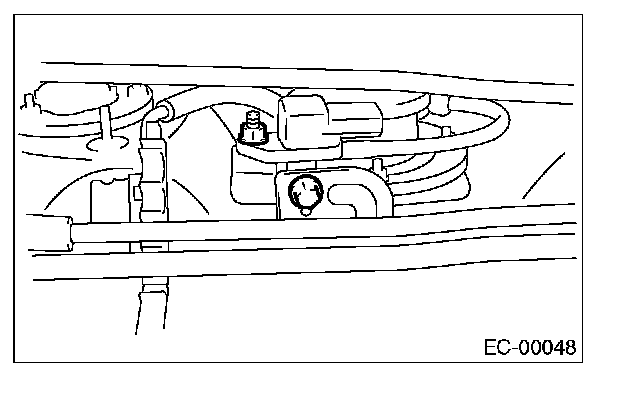

5. Remove the nuts and bolts which install the fuel tank pressure sensor on bracket.

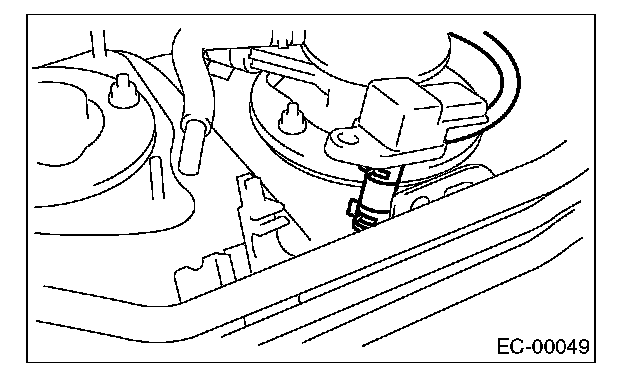

6. Disconnect the pressure hose from fuel tank pressure sensor.

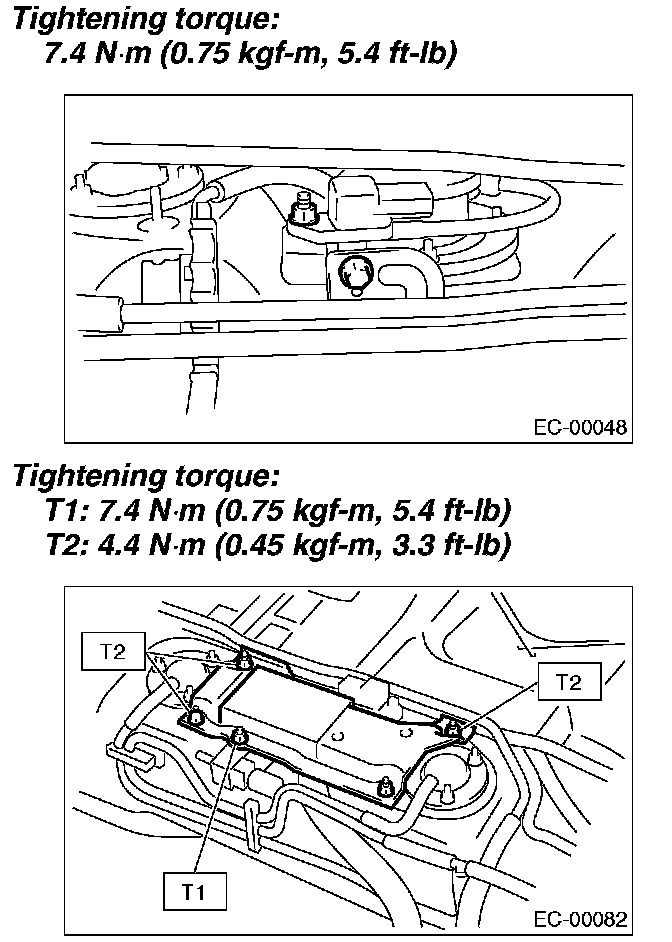

INSTALLATION




Install in the reverse order of removal.
