Computers and Control Systems: Locations

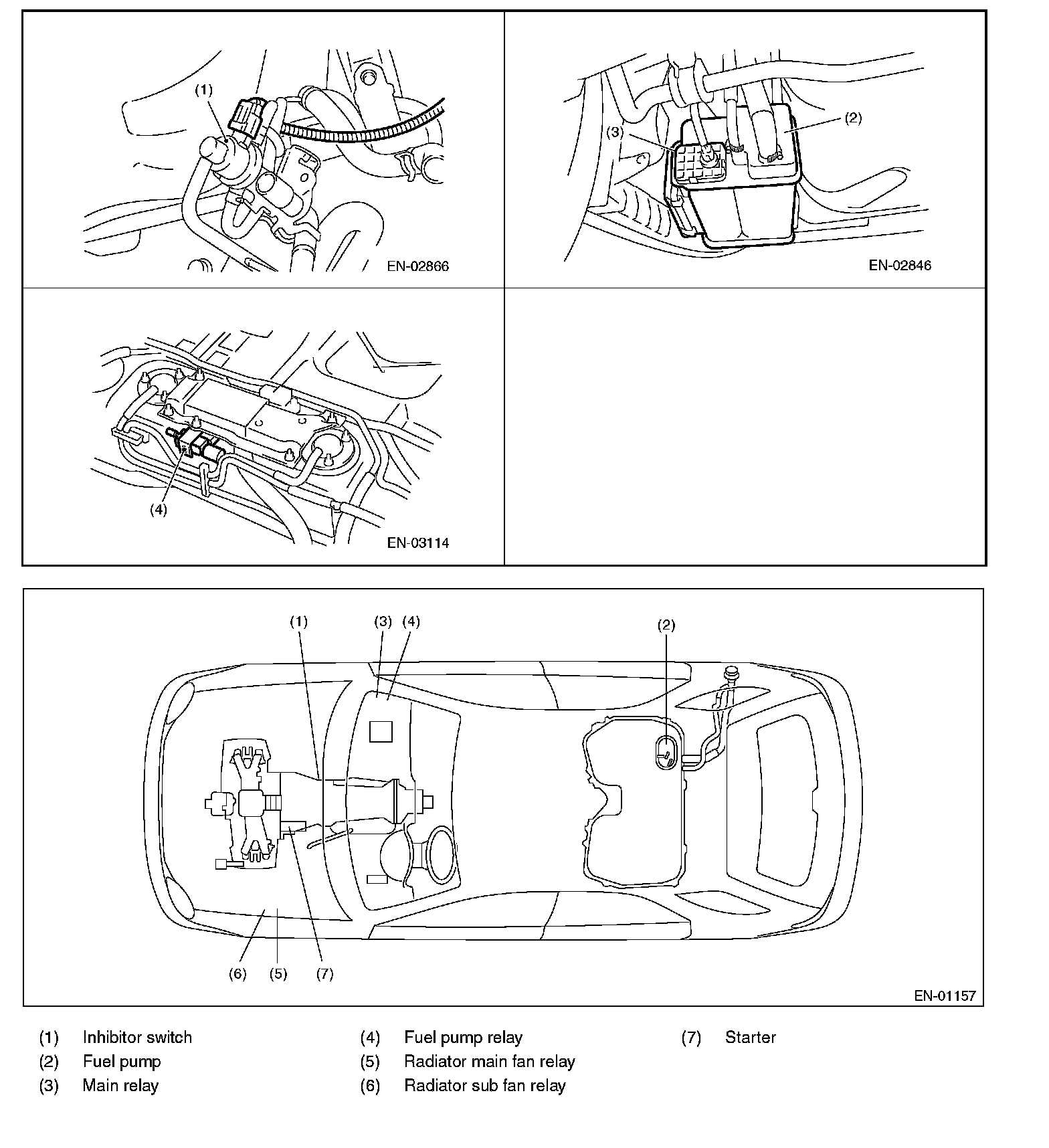

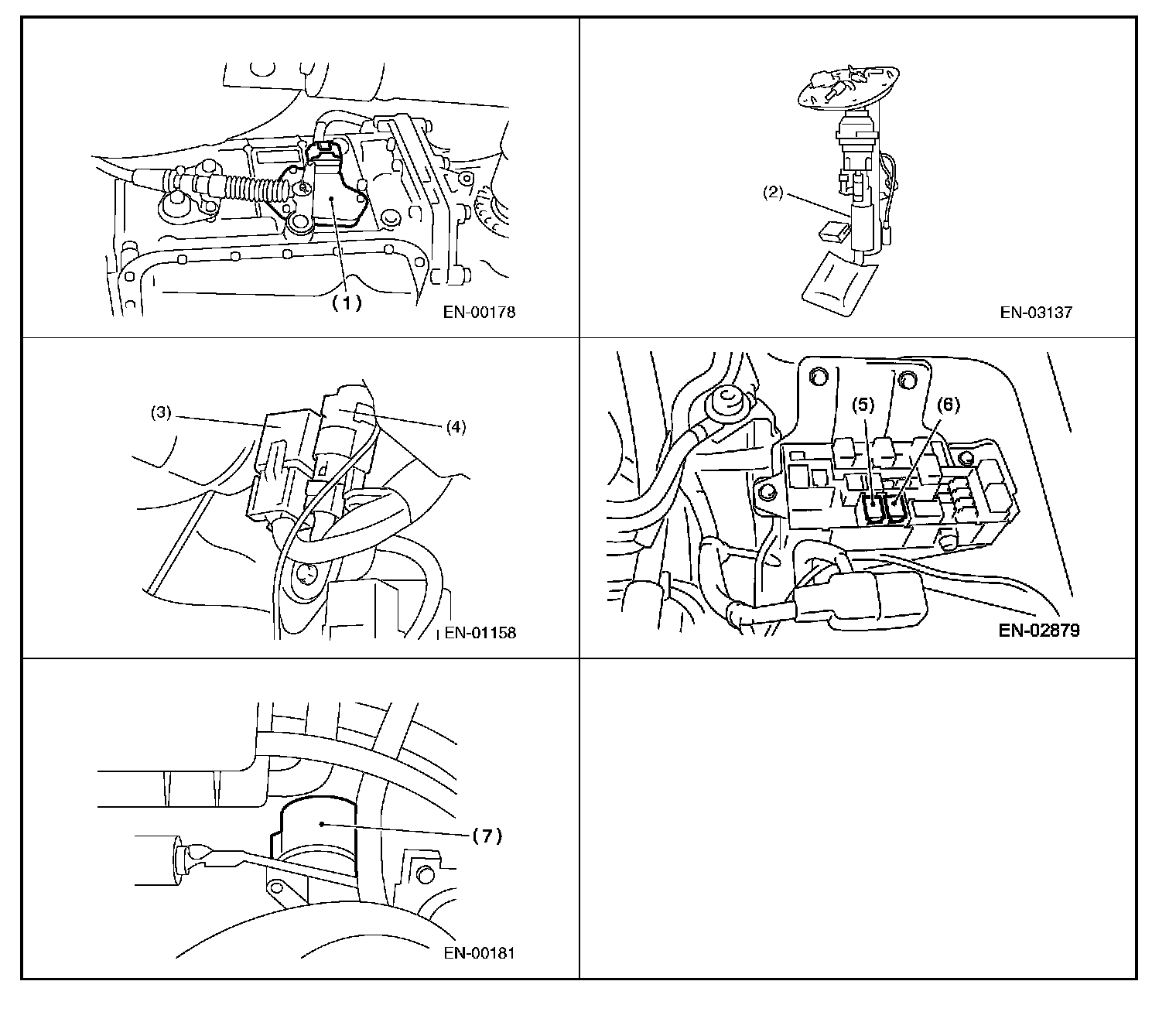

ENGINE

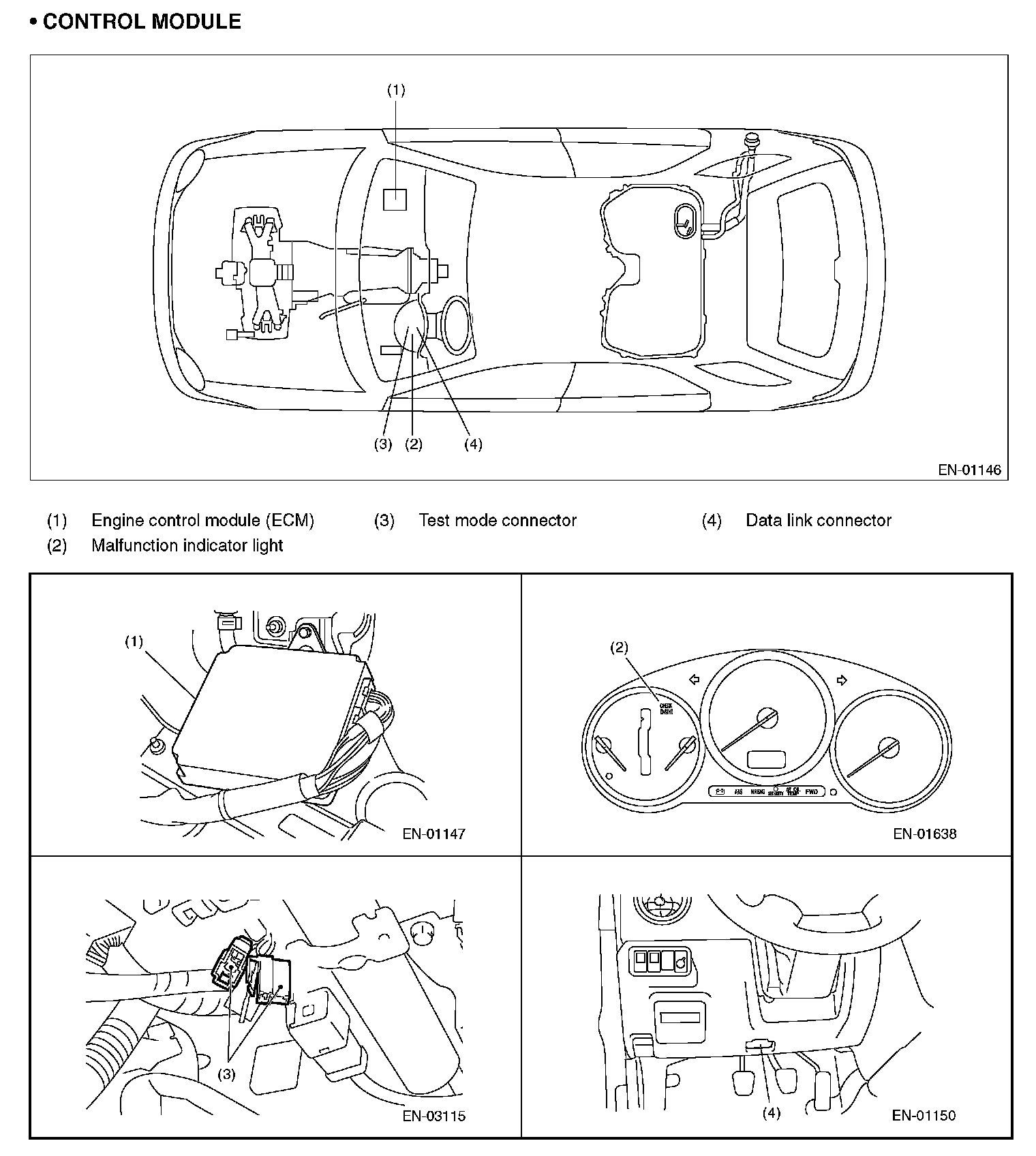

CONTROL MODULE

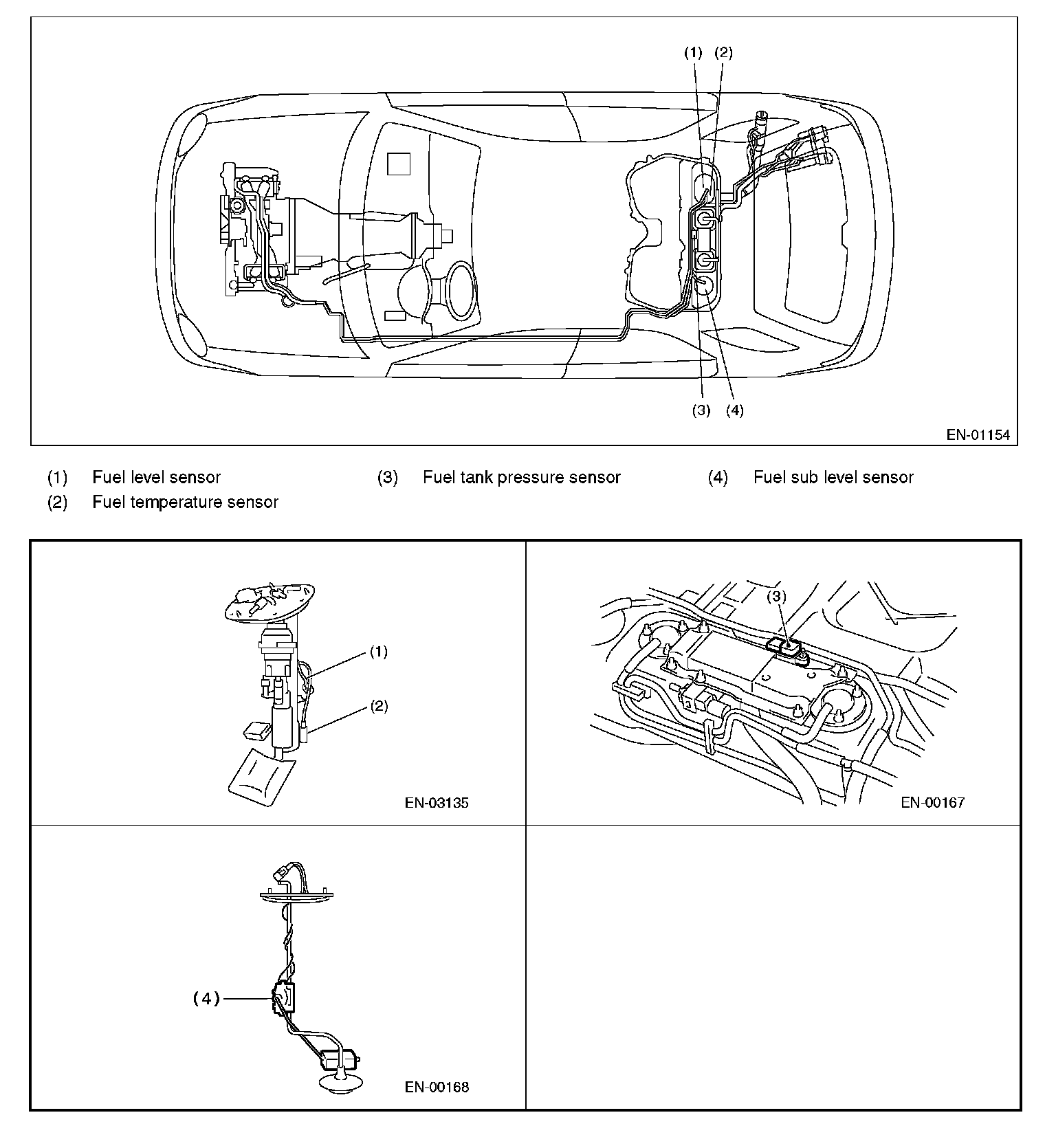

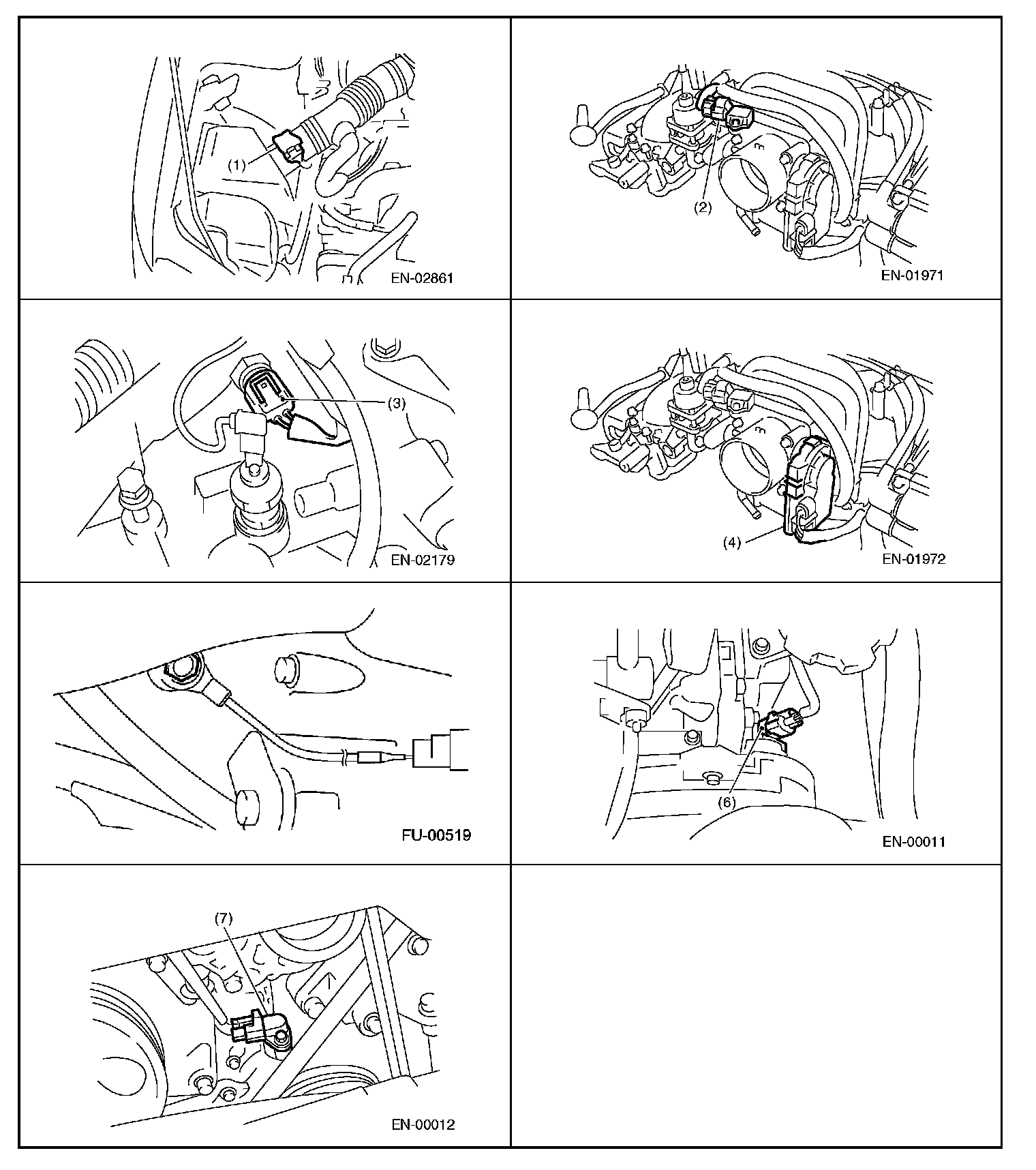

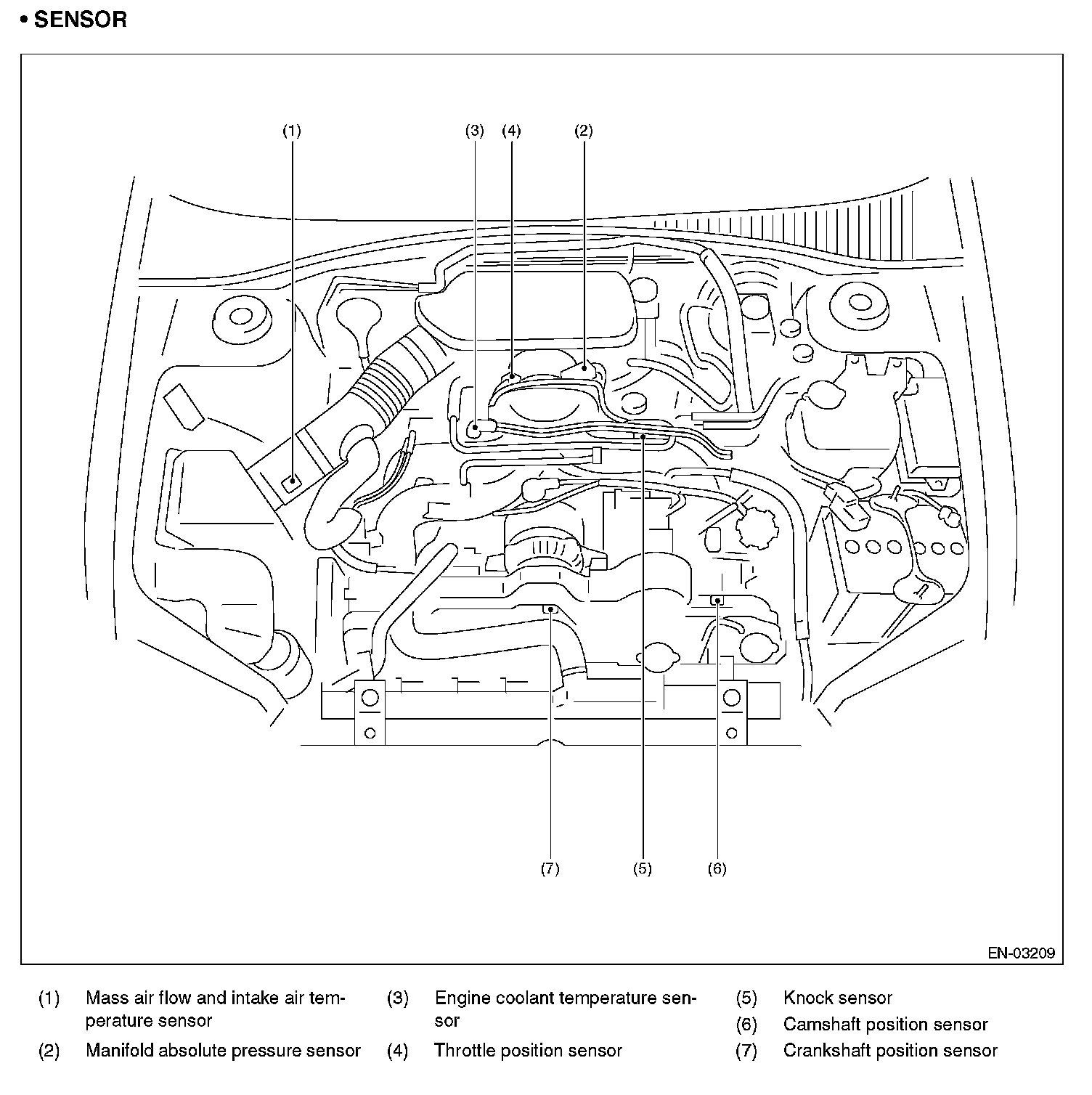

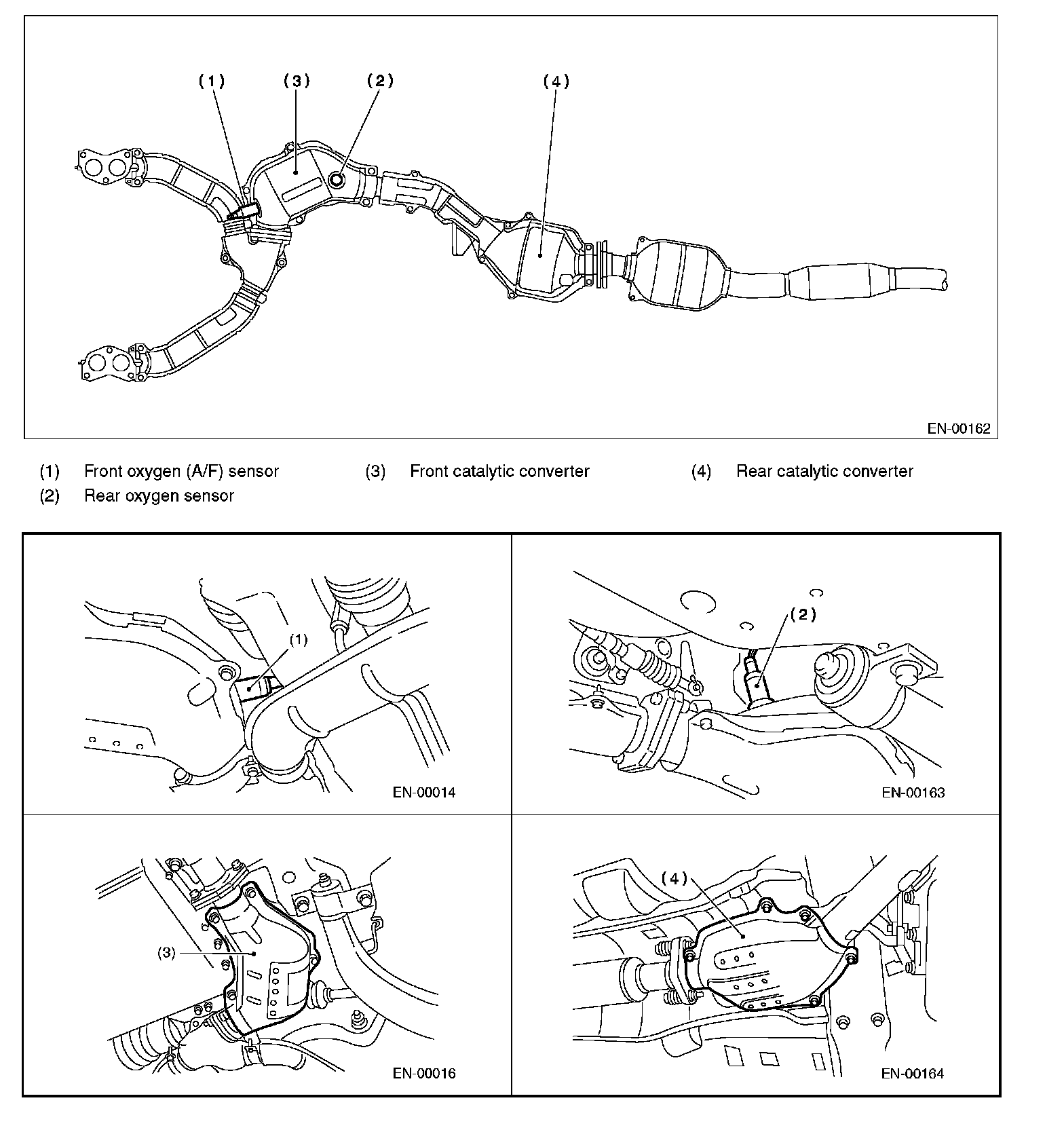

SENSOR

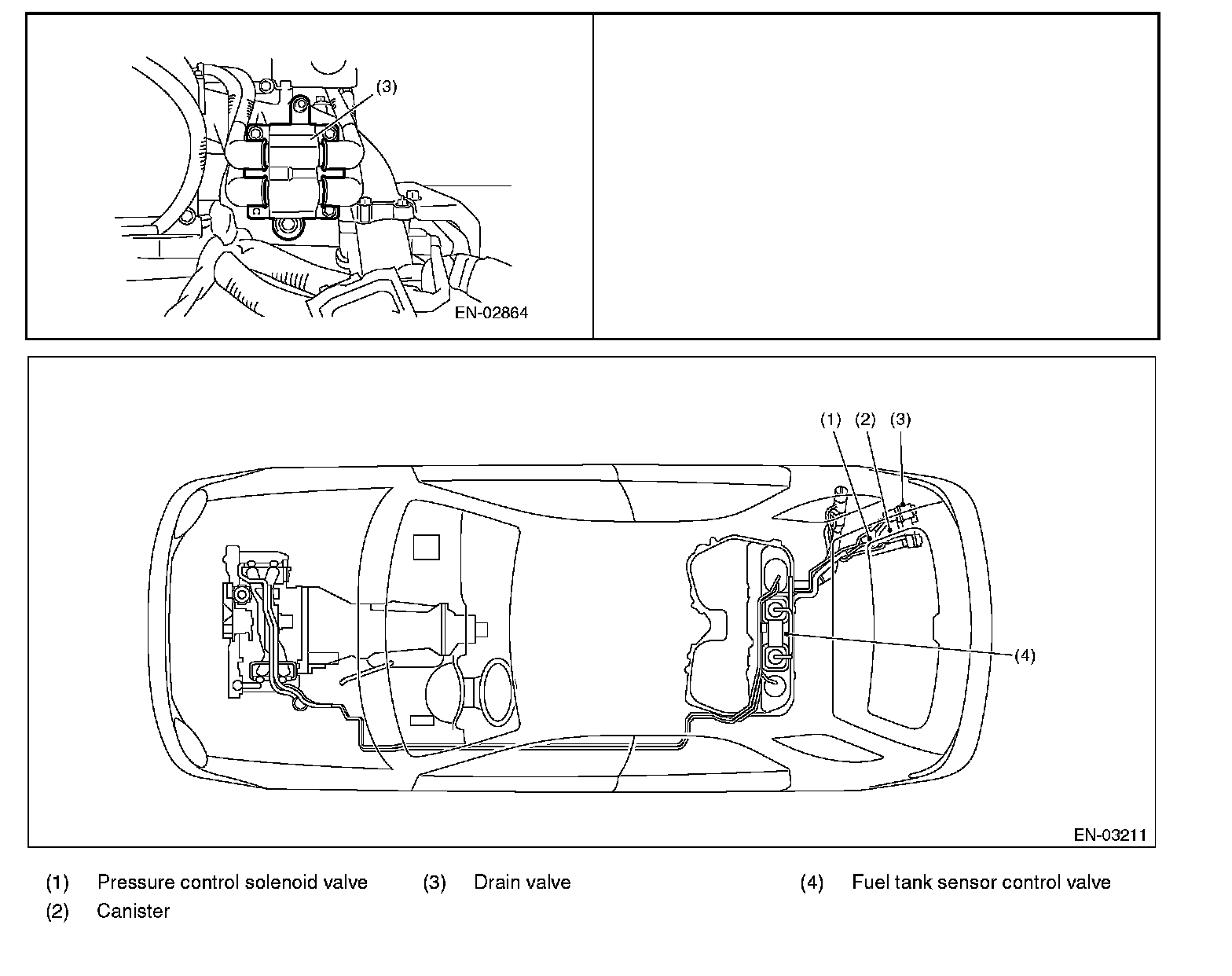

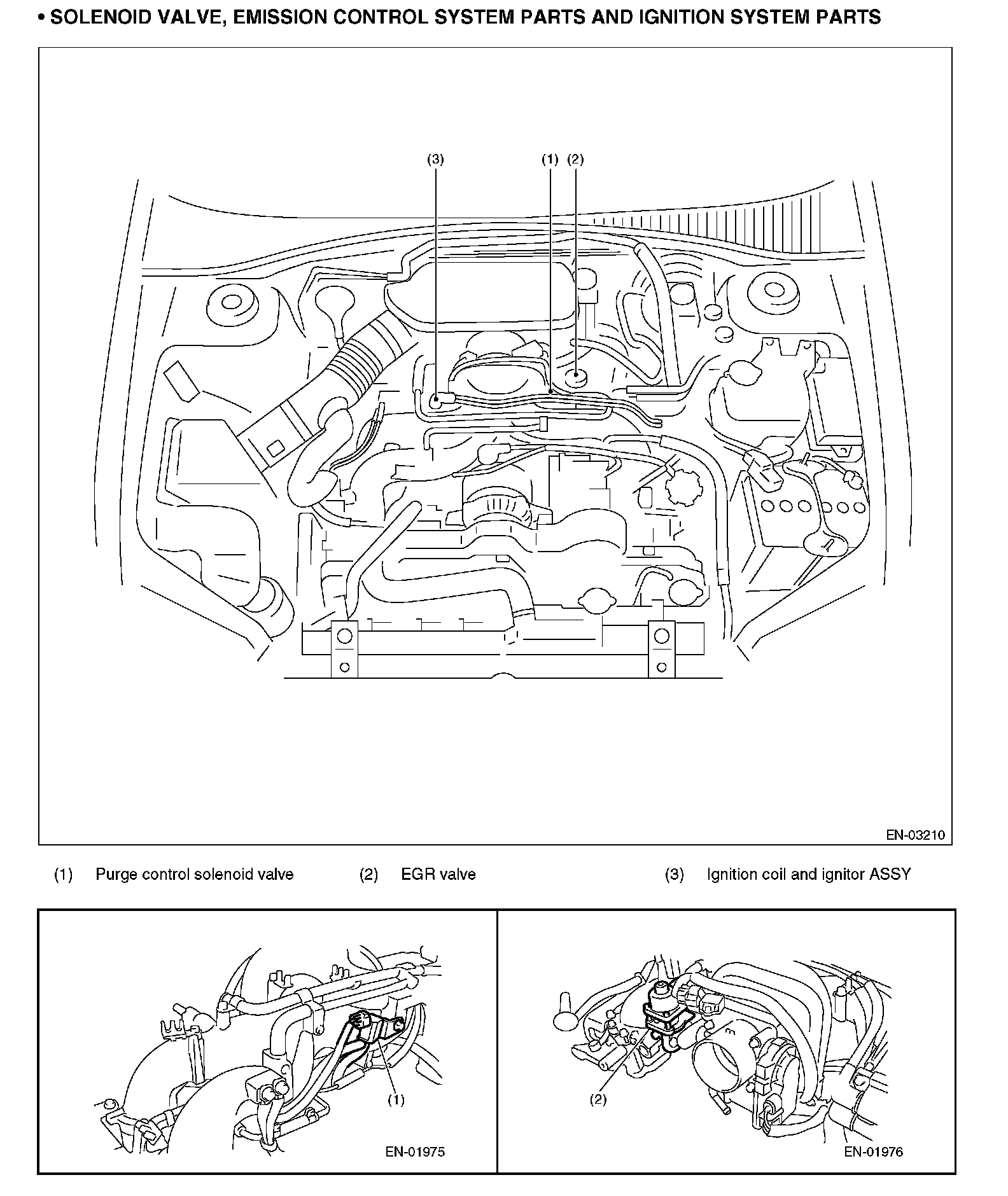

SOLENOID VALVE, EMISSION CONTROL SYSTEM PARTS AND IGNITION SYSTEM PARTS
