Main Relay (Computer/Fuel System): Service and Repair

Main Relay

REMOVAL

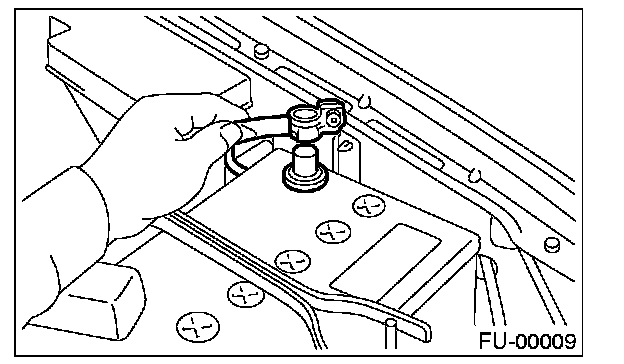

1. Disconnect the ground cable from battery.
2. Remove the passenger's side front side sill cover.

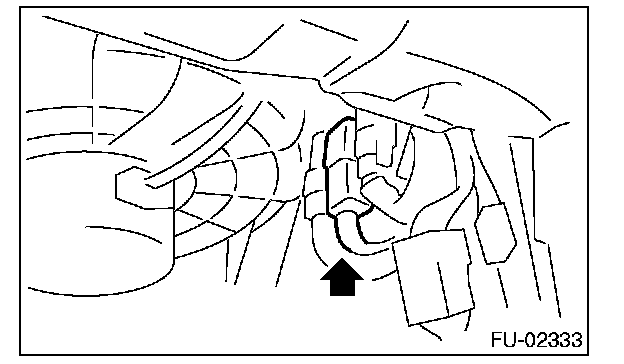

3. Disconnect the connectors from the main relay.

INSTALLATION
Install in the reverse order of removal.
