Control Module: Service and Repair

Transmission Control Module (TCM)
REMOVAL

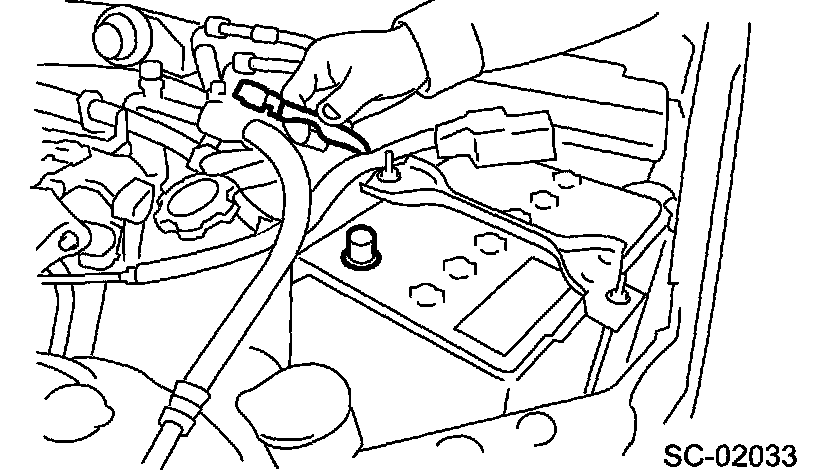

Disconnect the ground cable from battery.





Remove the lower cover and then disconnect the connector.

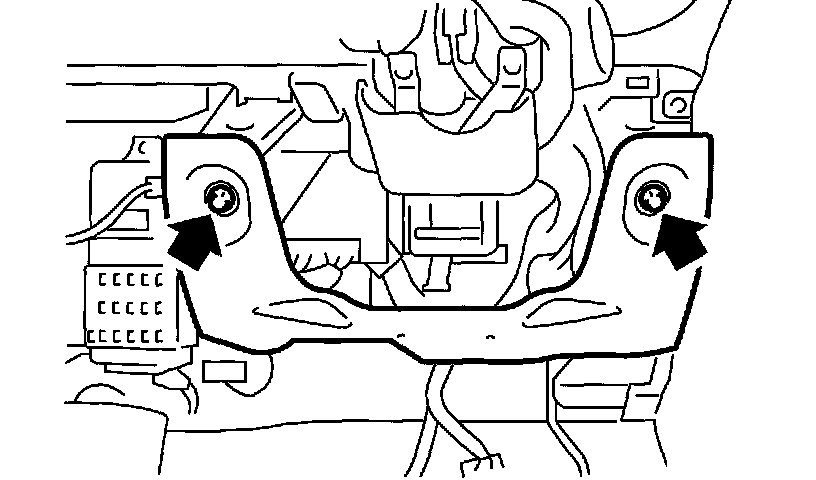

Remove the knee bolster.

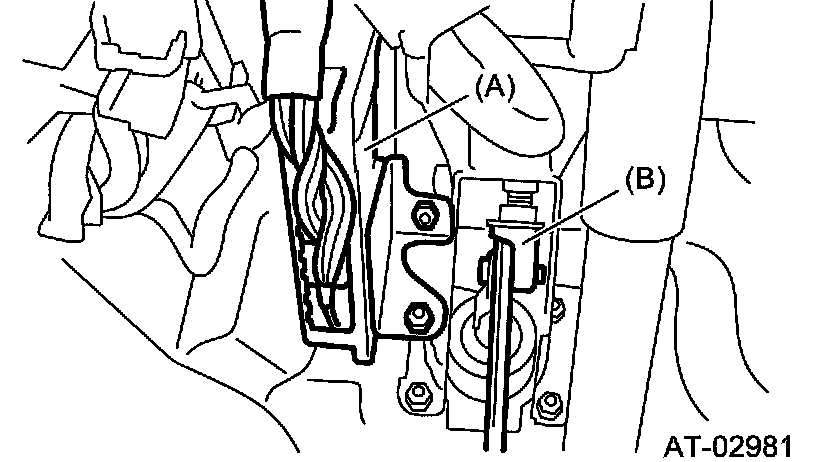

Disconnect the connectors from TCM.





(A) Transmission control module (TCM)
(B) Brake pedal
Remove the TCM.

INSTALLATION

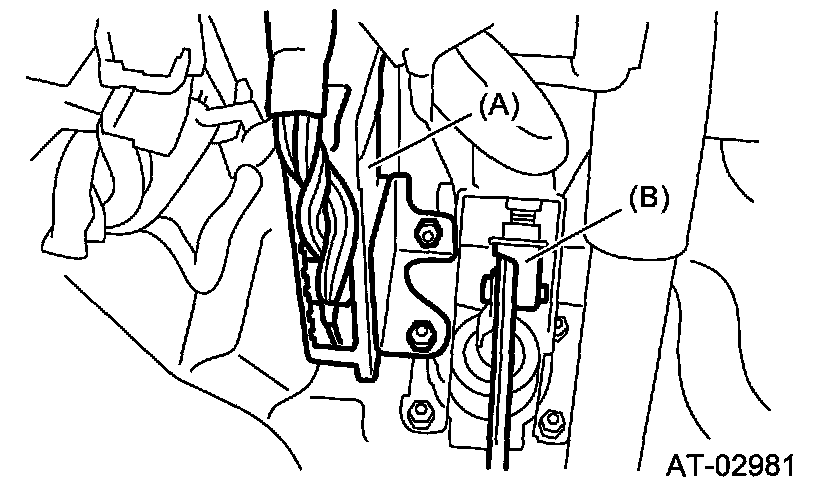

Install the TCM.
Tightening torque: 7.5 Nm (0.76 kgf-m, 5.5 ft. lbs.)





(A) Transmission control module (TCM)
(B) Brake pedal
Connect the connectors to TCM.
Install in the reverse order of removal.
