Fluid Checking

Differential Gear Oil

INSPECTION

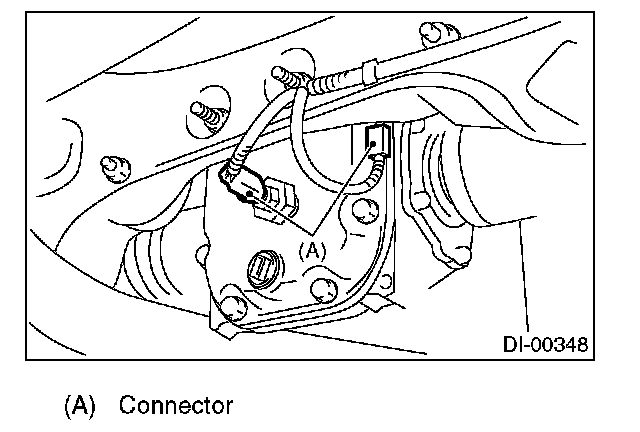

1. Disconnect the oil temperature switch connector. (STI model)

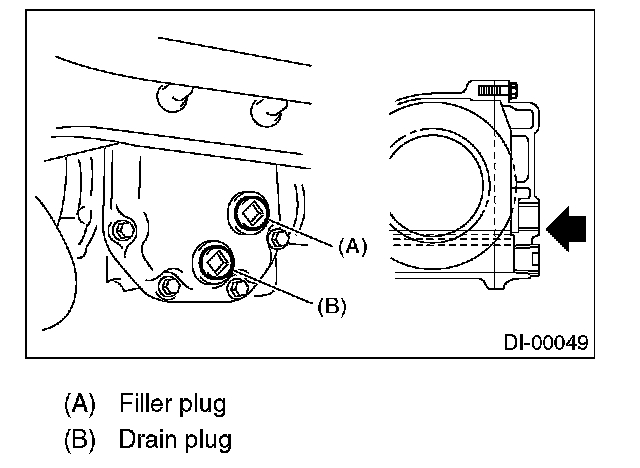

2. Remove the filler plug or rear differential oil temperature switch and then check the gear oil. If it is contaminated or deteriorated, replace the gear oil.
3. Check the gear oil level is up to the bottom part of filler bolt. If the level is low, refill up to the bottom of filler bolt.
