Body Integrated Unit: Removal

Disconnect the ground cable from battery.

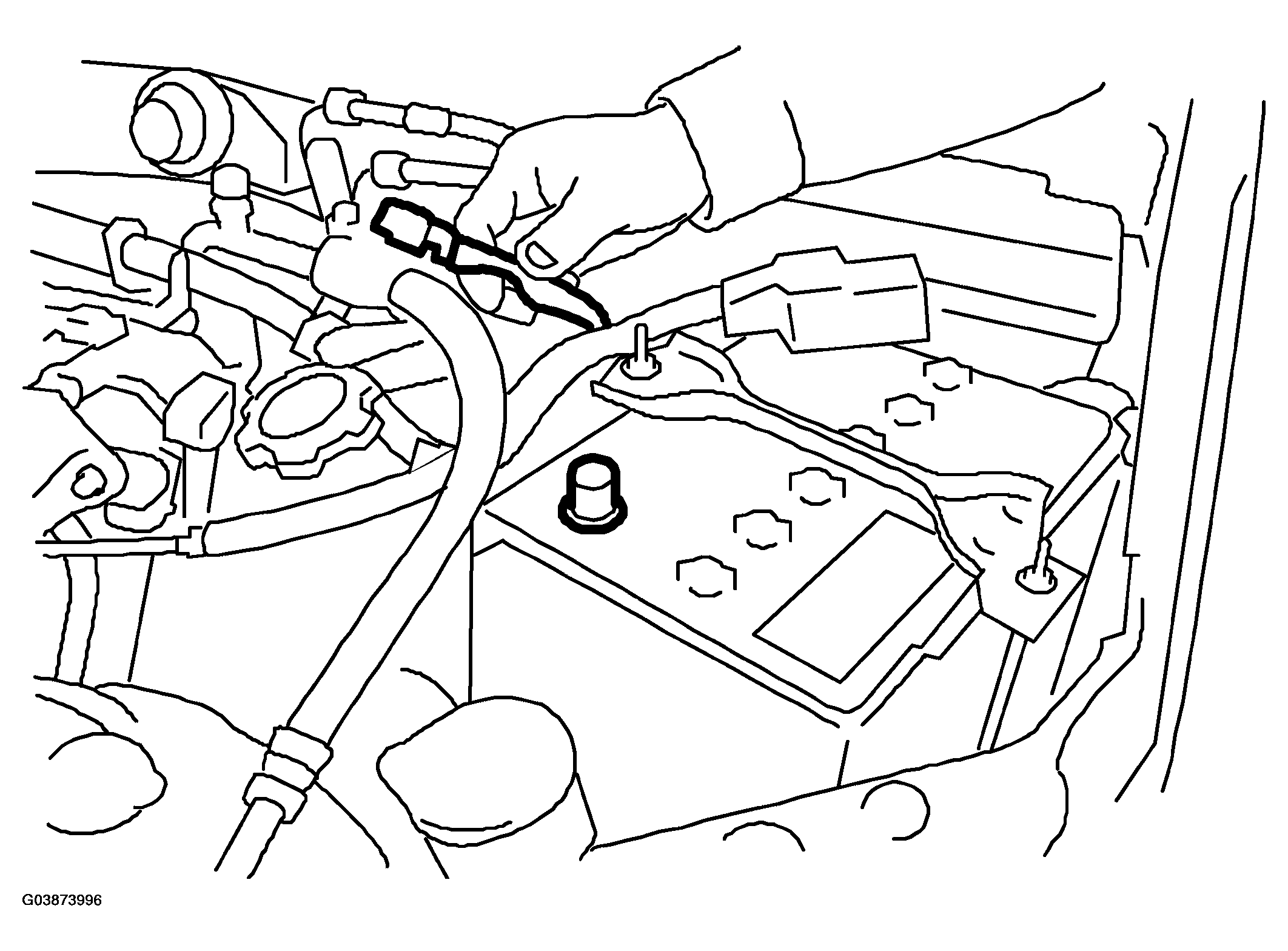

Fig 1: Disconnecting Ground Cable From Battery

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Remove the lower cover.

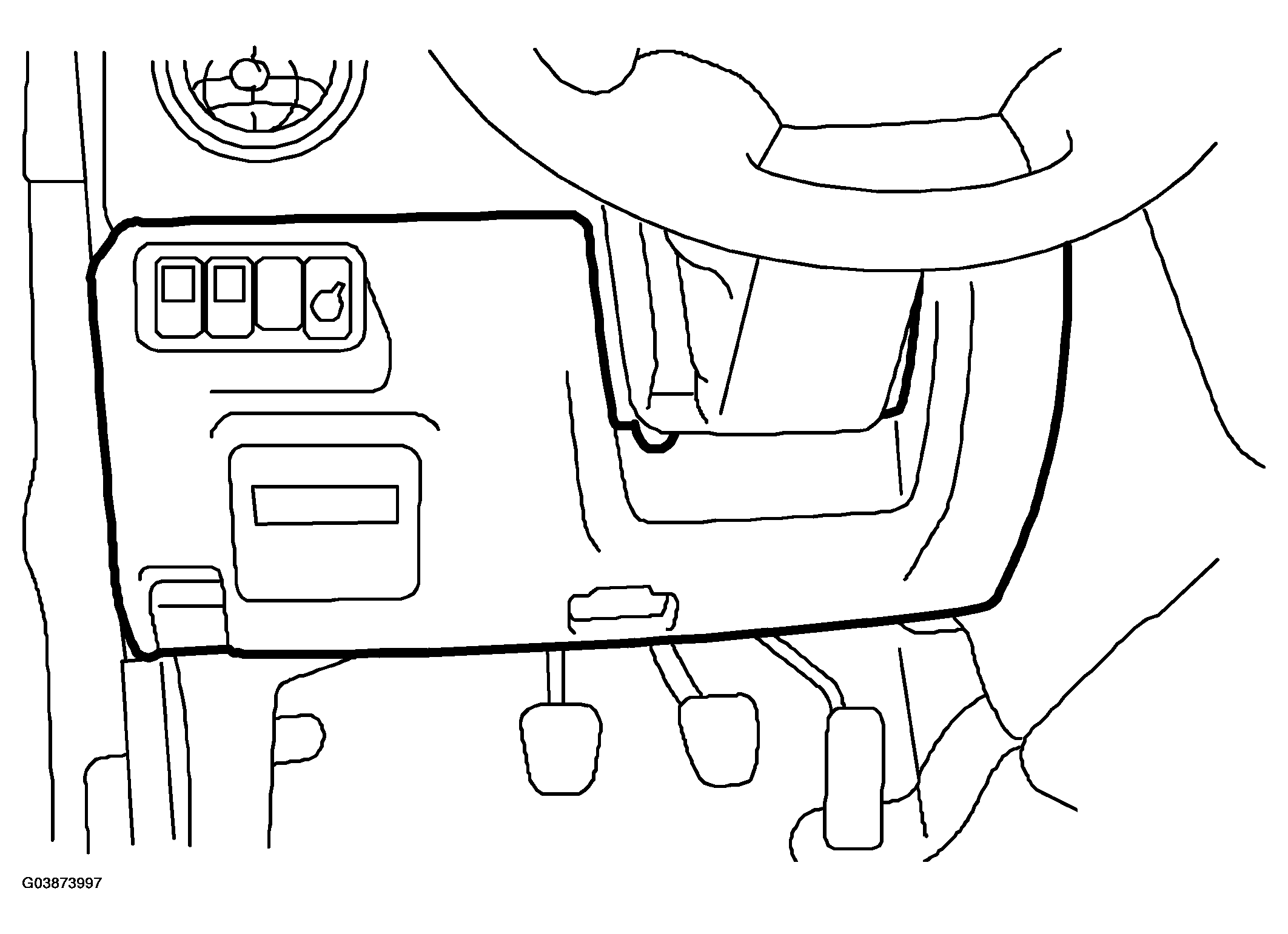

Fig 2: Removing Lower Cover

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Remove the knee bolster.

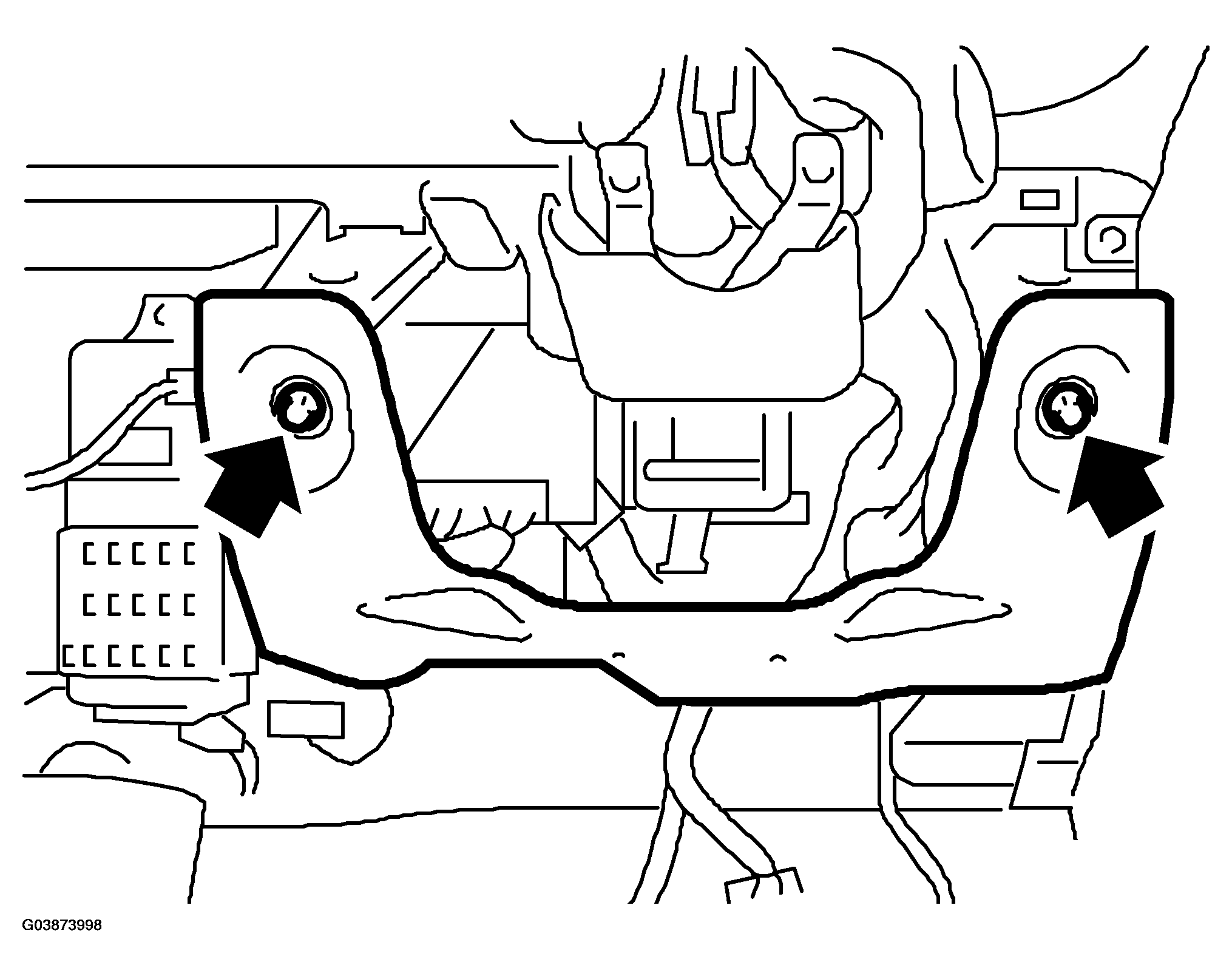

Fig 3: Removing Knee Bolster

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Disconnect the connector from body integrated unit.

Remove the body integrated unit.

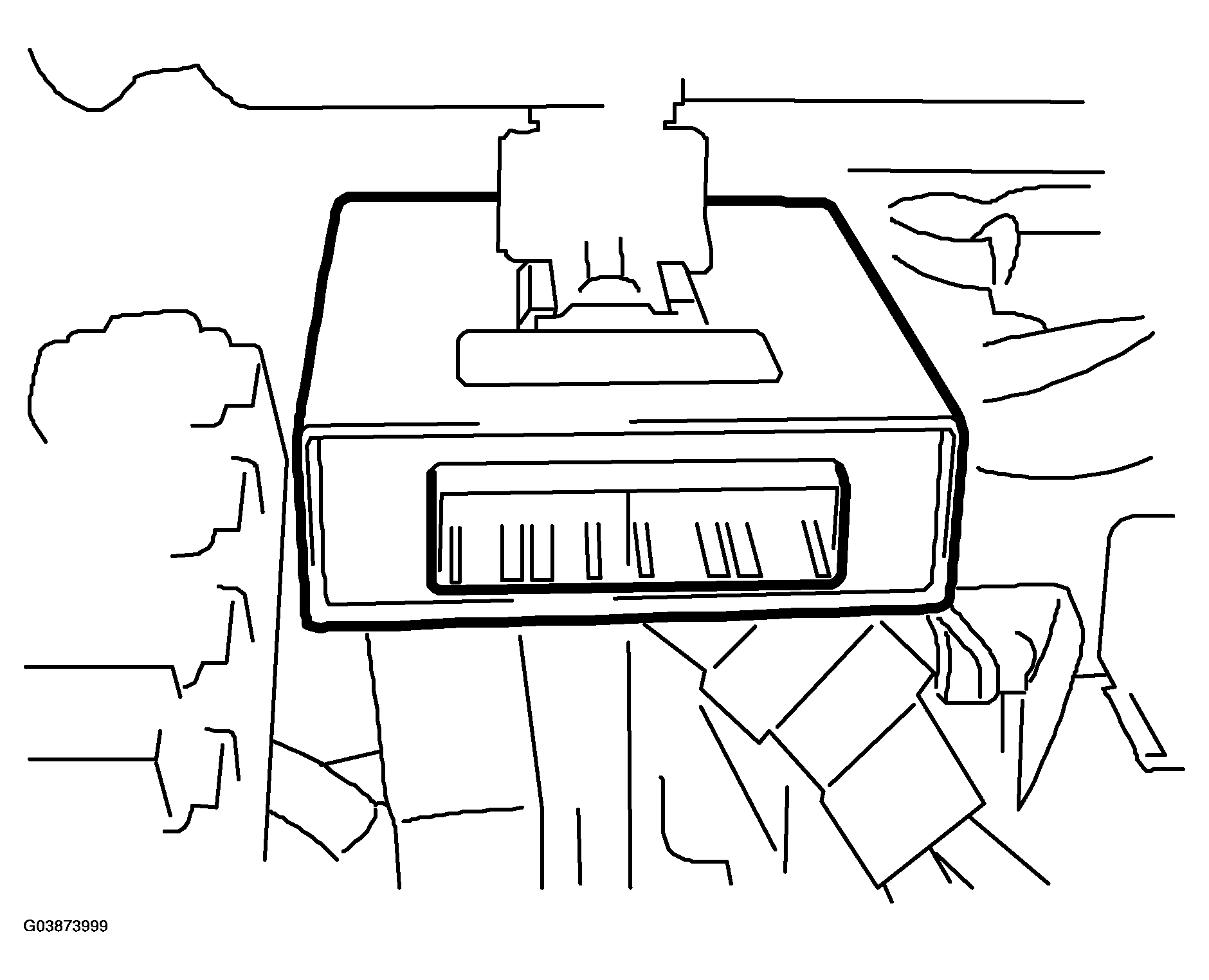

Fig 4: Removing Body Integrated Unit

Courtesy of SAAB-SCANIA OF AMERICA, INC.
