M/T Gear Shift Lever: Disassembly

Disassemble the lock wire.

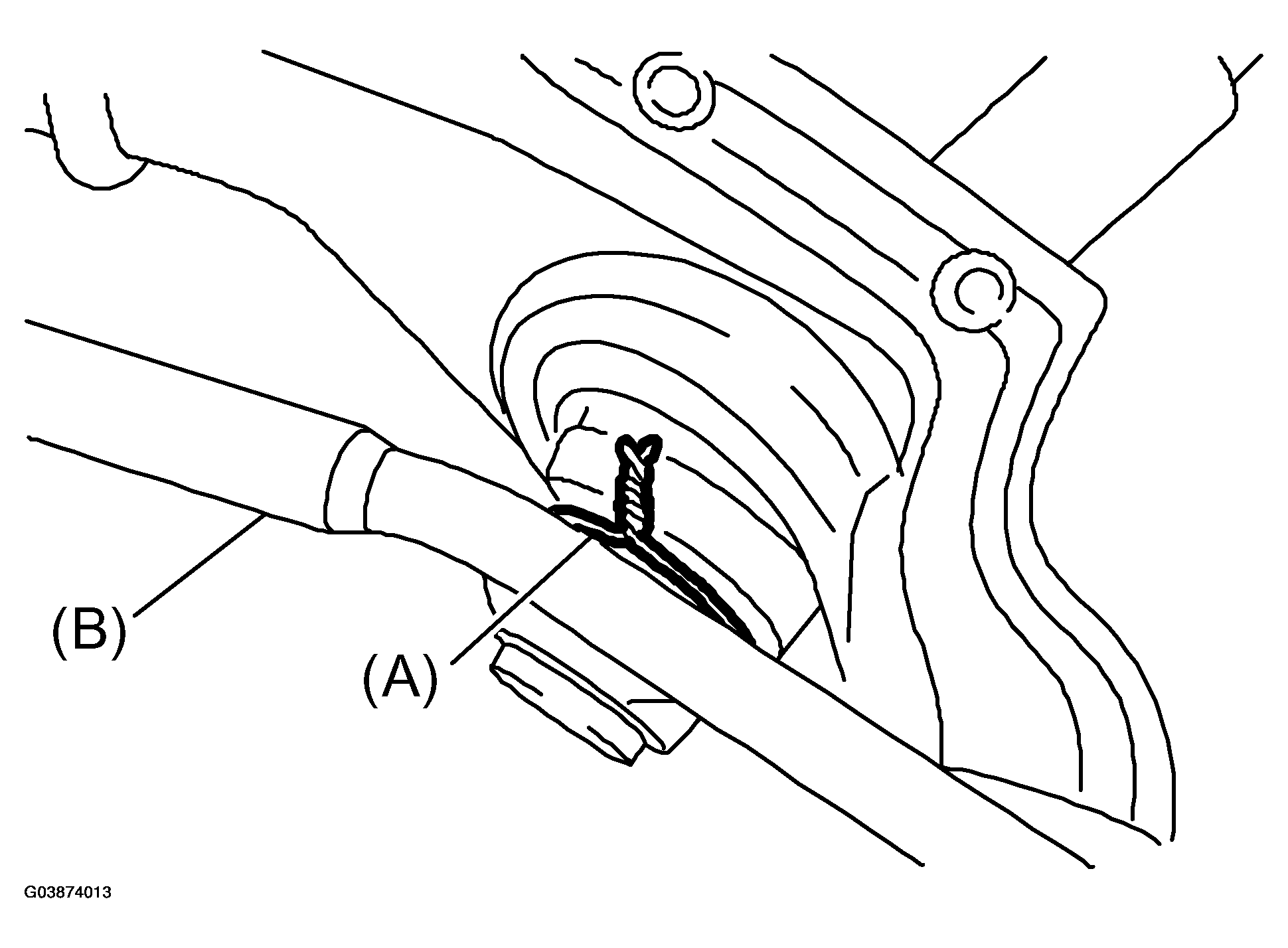

Fig 1: Installing Console Box
G03874013Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Lock wire
  2. Stay

Remove the rod from lever.

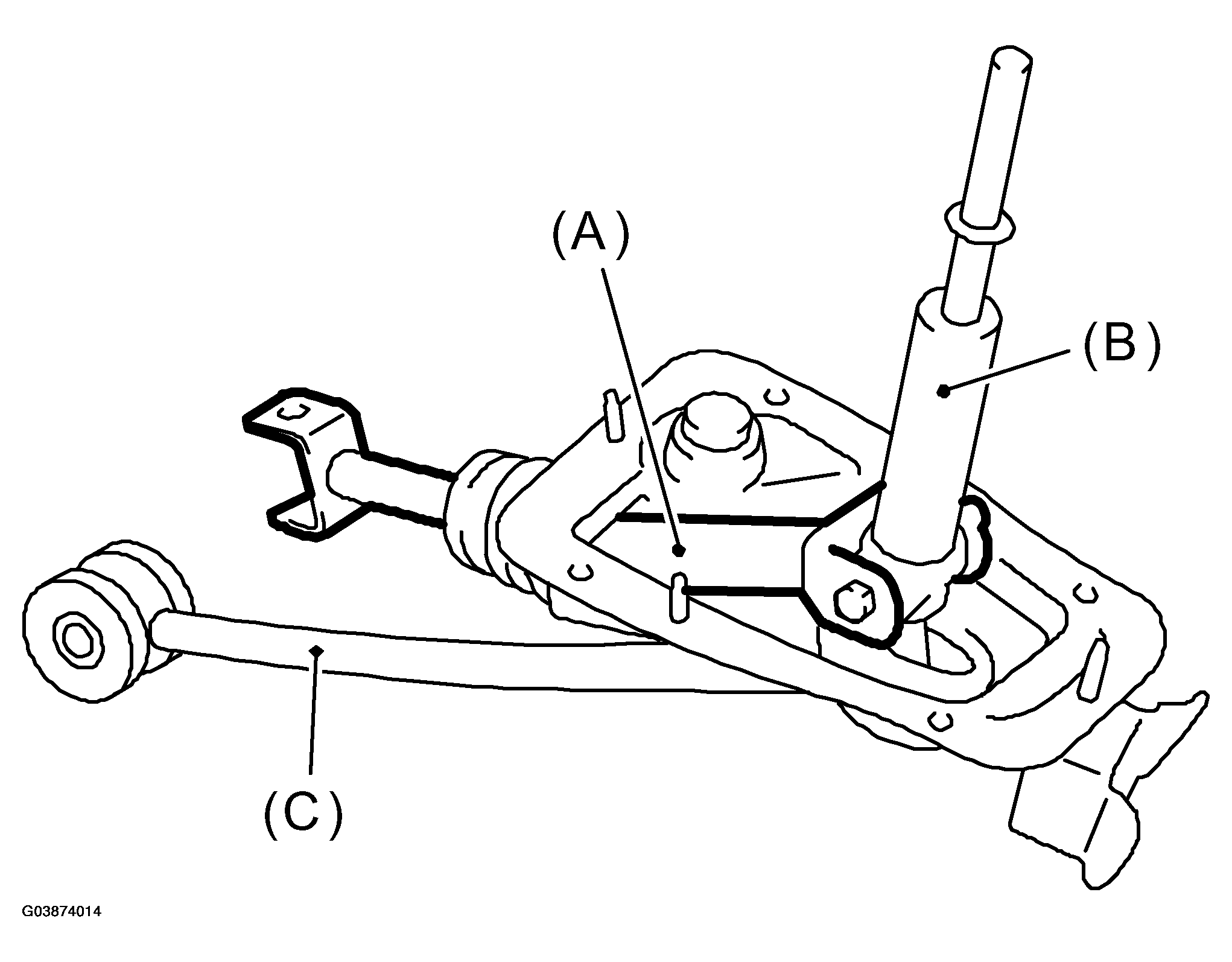

Fig 2: Removing Rod From Lever
G03874014Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Rod
  2. Lever
  3. Stay

Remove the snap ring from bushing B, and then disconnect the stay.

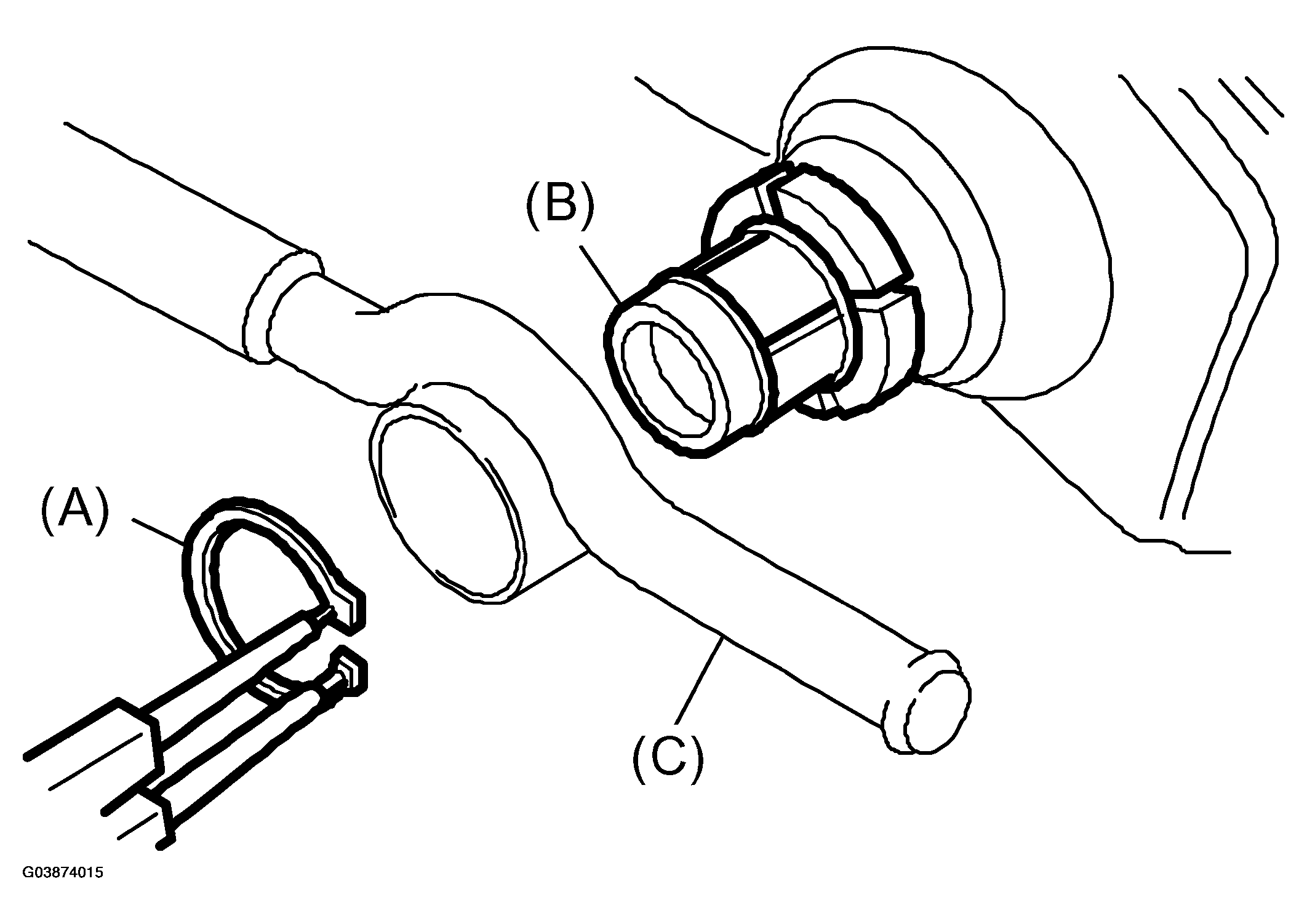

Fig 3: Removing Snap Ring From Bushing
G03874015Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Snap ring
  2. Bushing B
  3. Stay

Remove the boot from gear shift lever.

Remove the bushing and cushion rubber from stay.

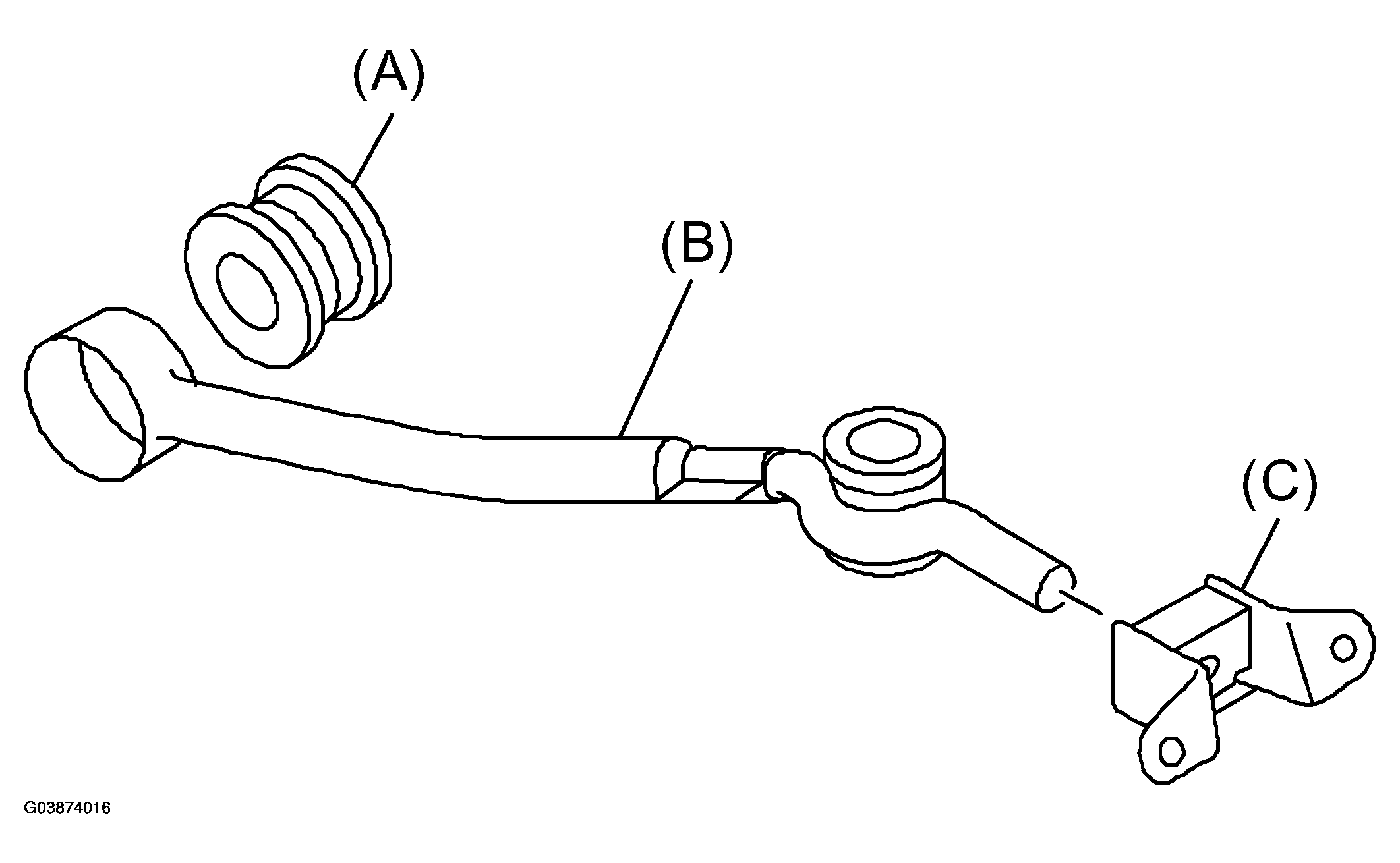

Fig 4: Removing Bushing And Cushion Rubber From Stay
G03874016Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Bushing
  2. Stay
  3. Cushion rubber

Remove O-ring, and then disconnect the bushing B.

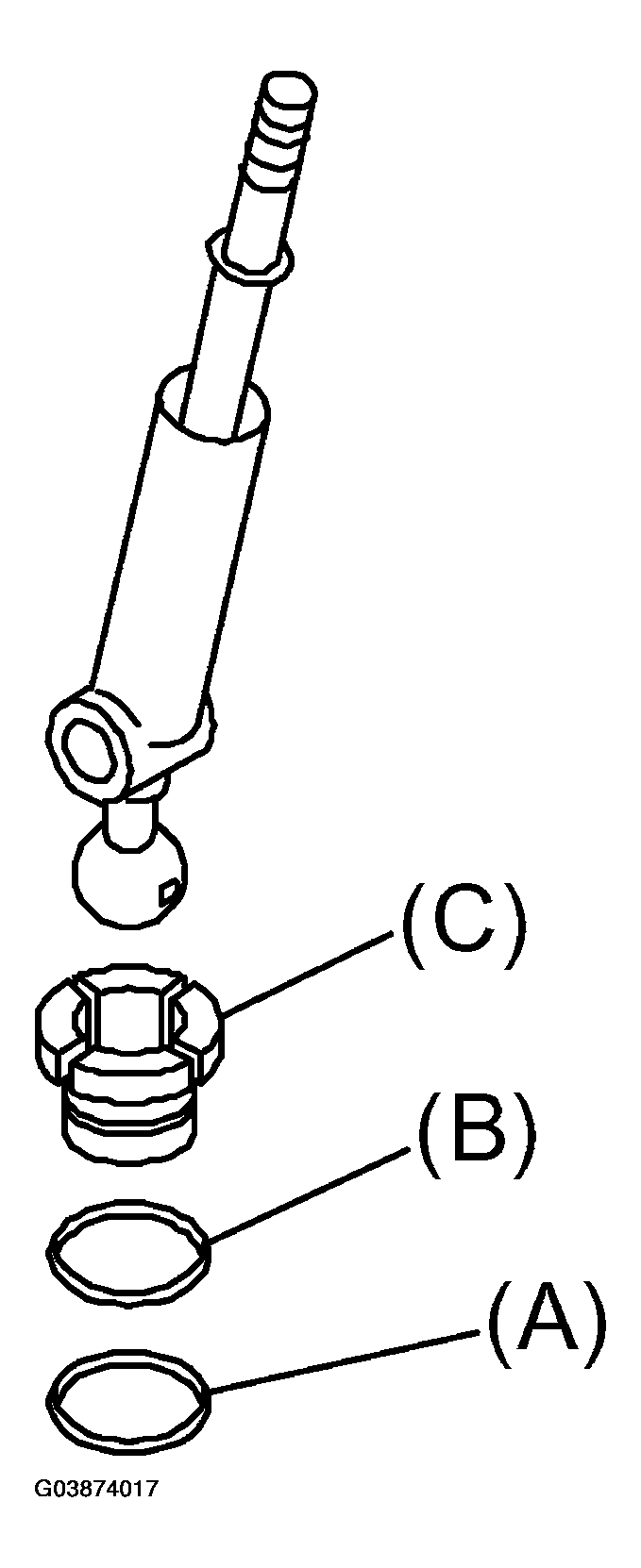

Fig 5: Disconnecting Bushing
G03874017Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. O-ring
  2. O-ring
  3. Bushing B

Draw out the spring pin, and then remove the bushing A from gear shift lever.

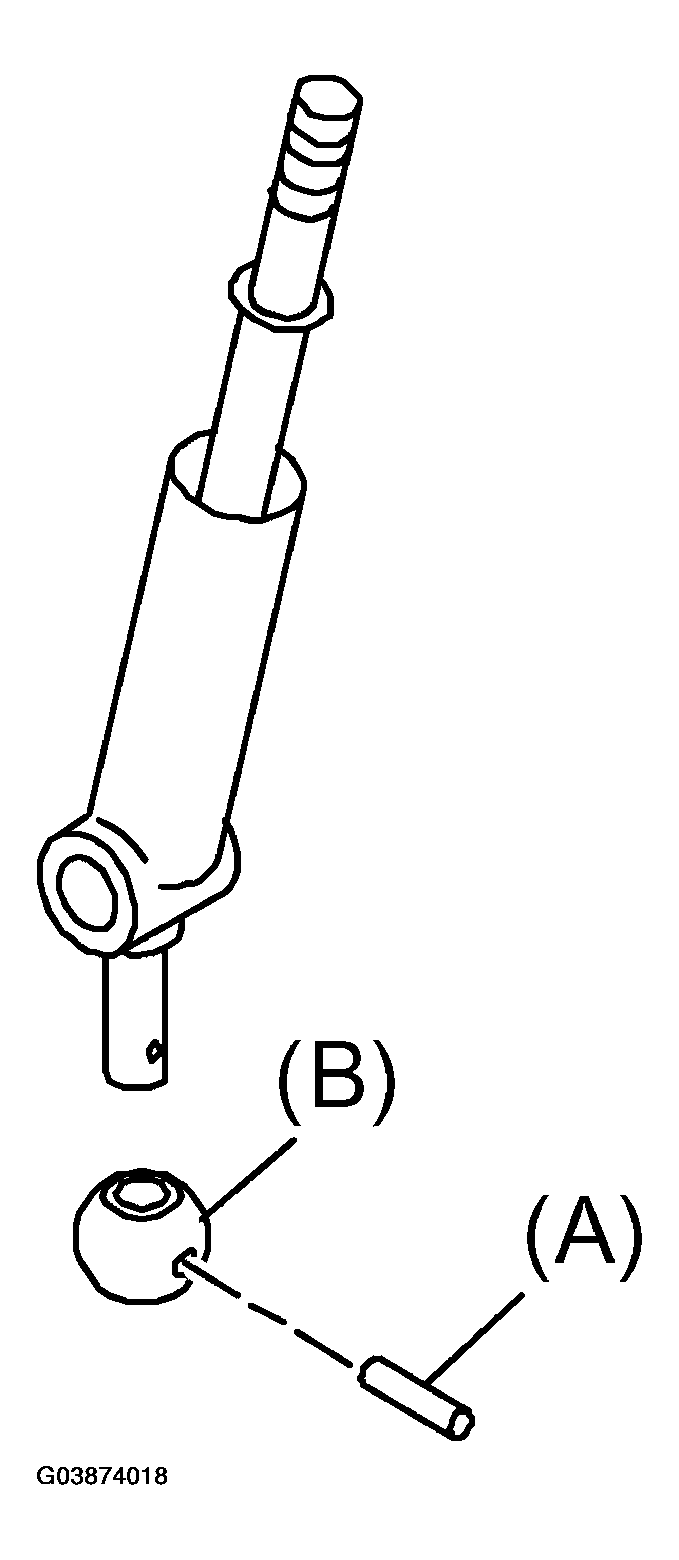

Fig 6: Removing Bushing From Gear Shift Lever
G03874018Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Spring pin
  2. Bushing A
