M/T Gear Shift Lever: Installation

Install the joint to the transmission and secure with the spring pin.

Insert gear shift lever from room side.

NOTE: After inserting rod and stay, temporarily put them onto transmission mount.

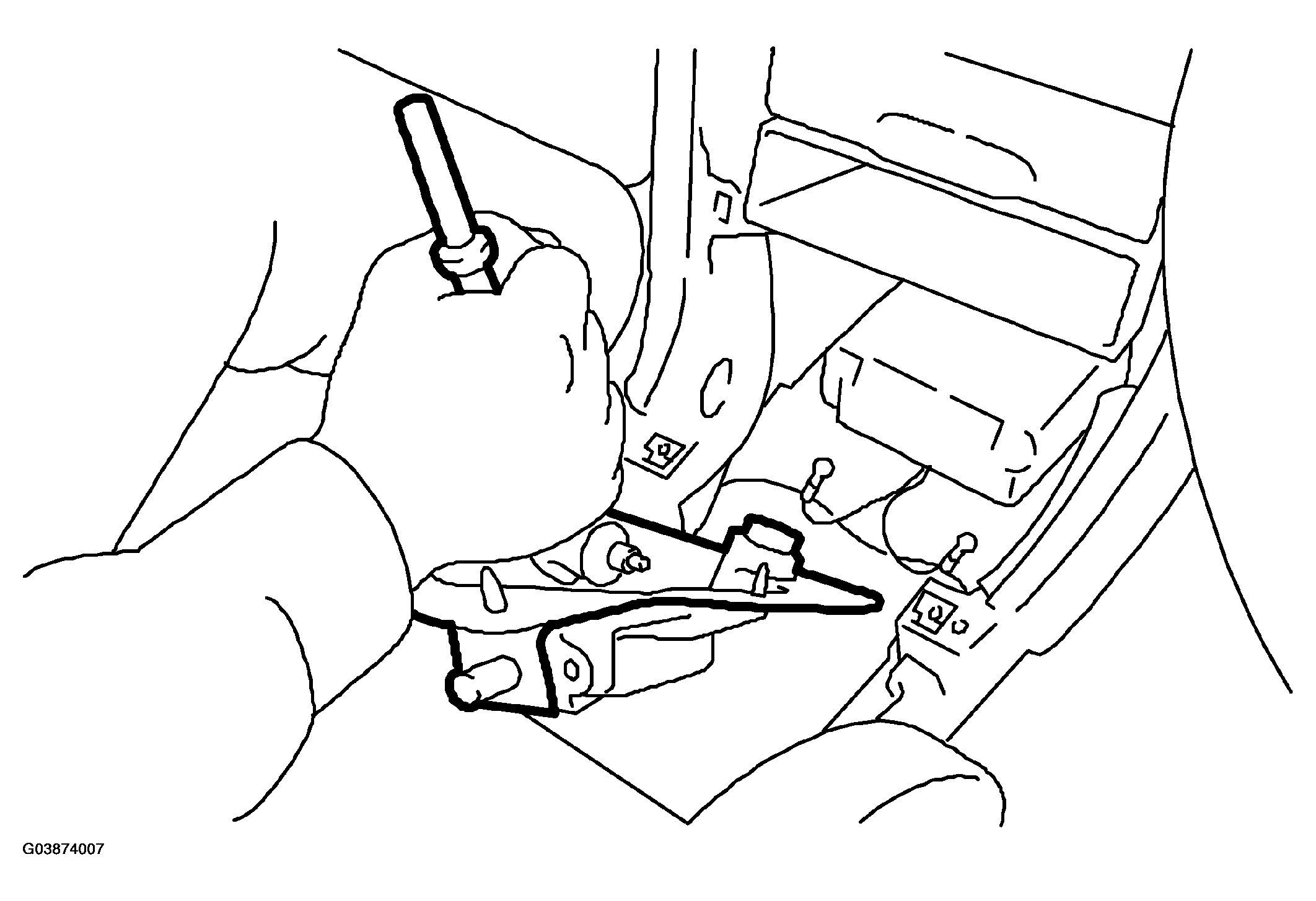

Fig 1: Installing Joint To Transmission

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Lift-up the vehicle.

Mount the cushion rubber on body.

Tightening torque:

18 Nm (1.8 kgf-m, 13.0 ft -lb)

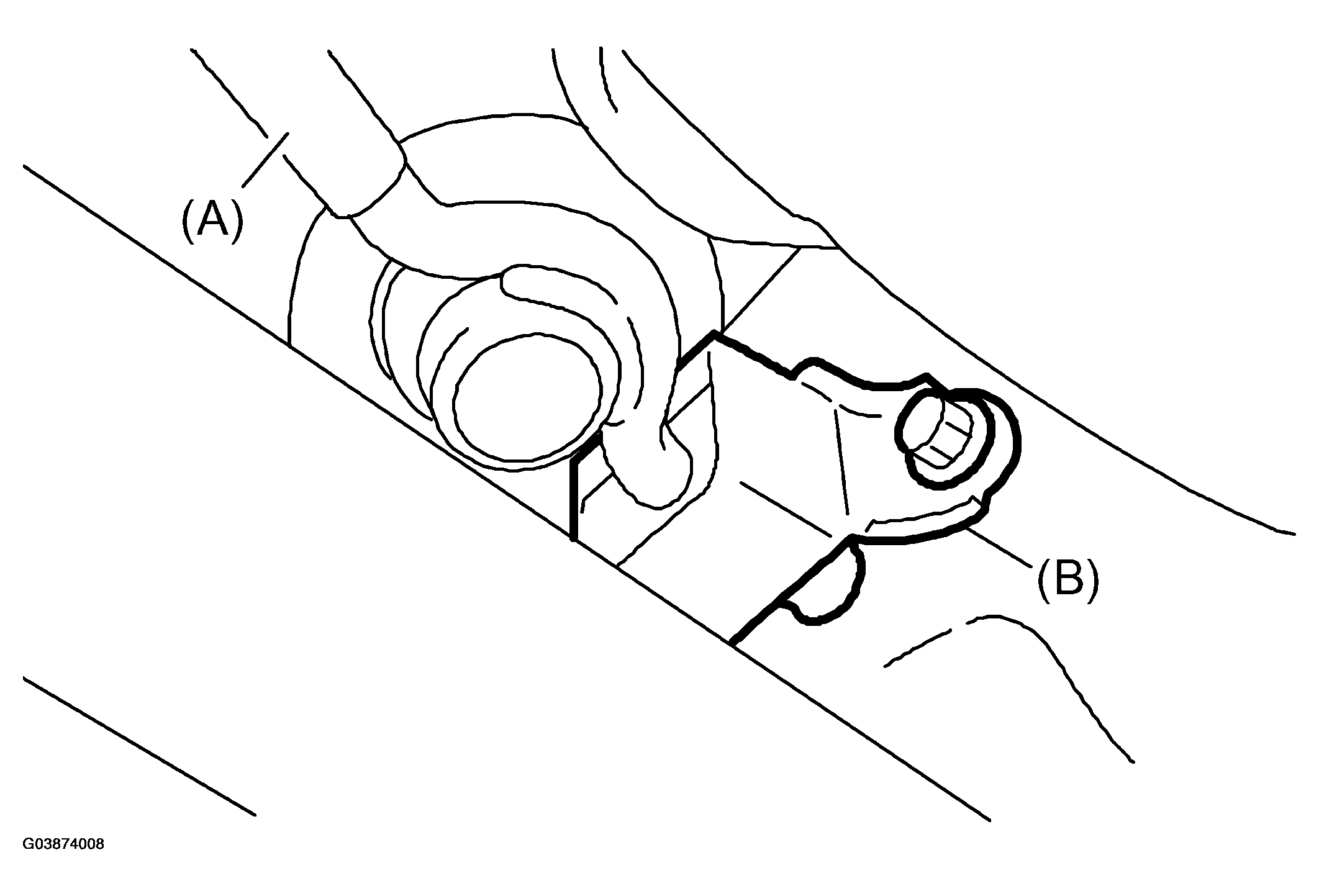

Fig 2: Mounting Cushion Rubber On Body

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Connect the rod to the joint.

Tightening torque:

18 Nm (1.8 kgf-m, 13.0 ft -lb)

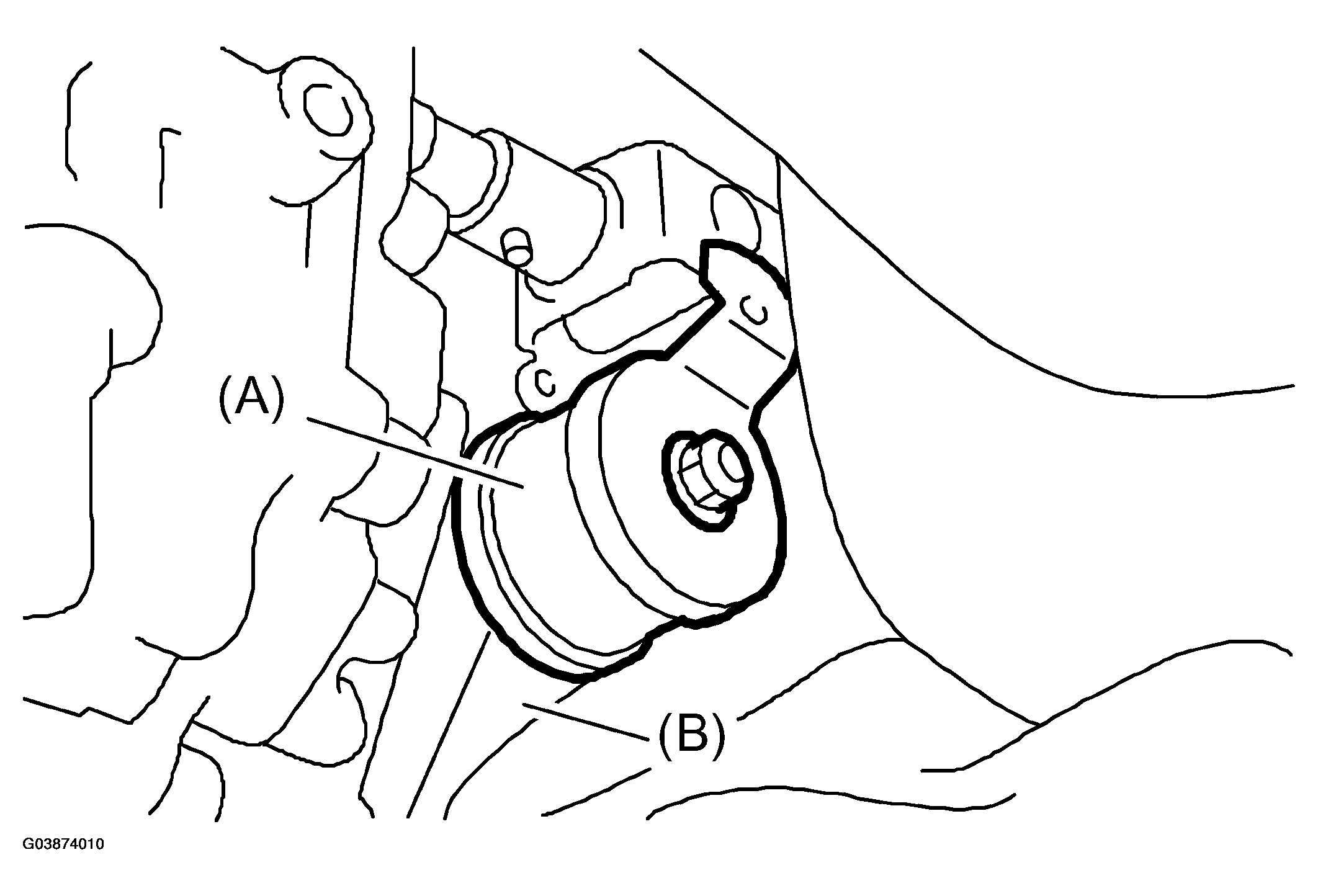

Fig 3: Connecting Rod To Joint

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Connect the stay to transmission bracket.

Tightening torque:

18 Nm (1.8 kgf-m, 13.0 ft -lb)

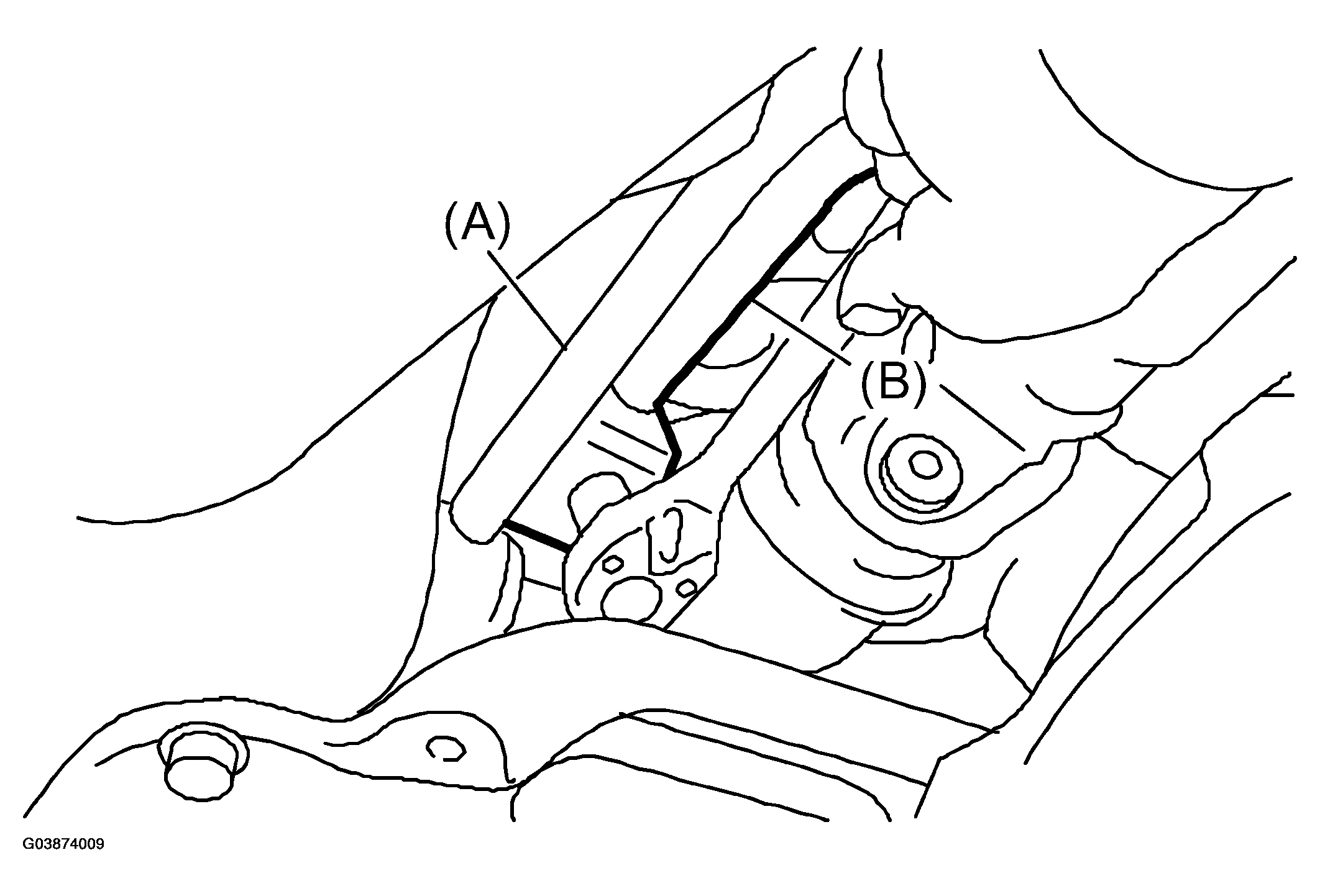

Fig 4: Connecting Stay To Transmission Bracket

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Install the heat shield cover. (If equipped)

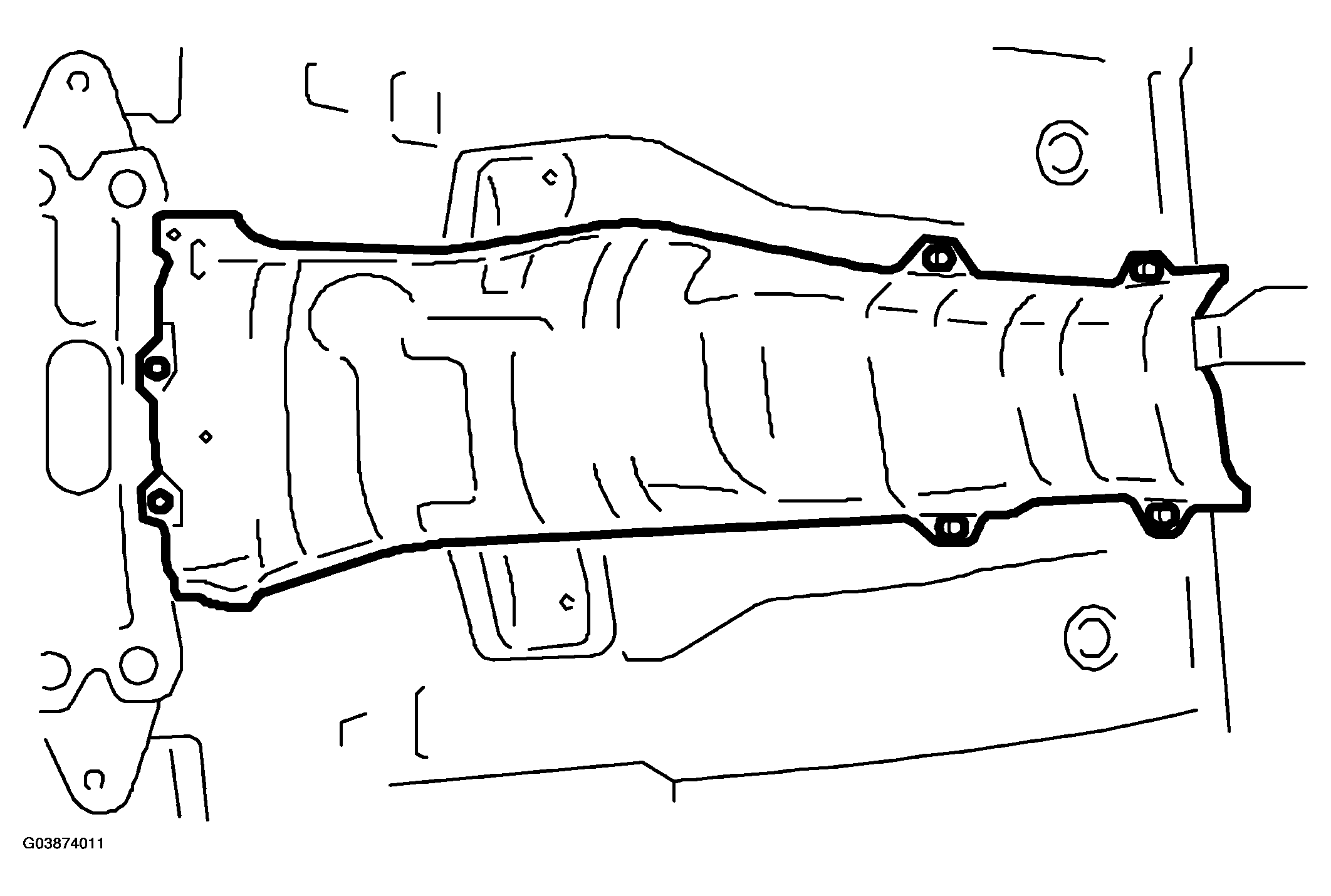

Fig 5: Installing Heat Shield Cover

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Install the rear exhaust pipe and muffler.

Install the plate assembly to body.

Tightening torque:

7.5 Nm (0.76 kgf-m, 5.5 ft-lb)

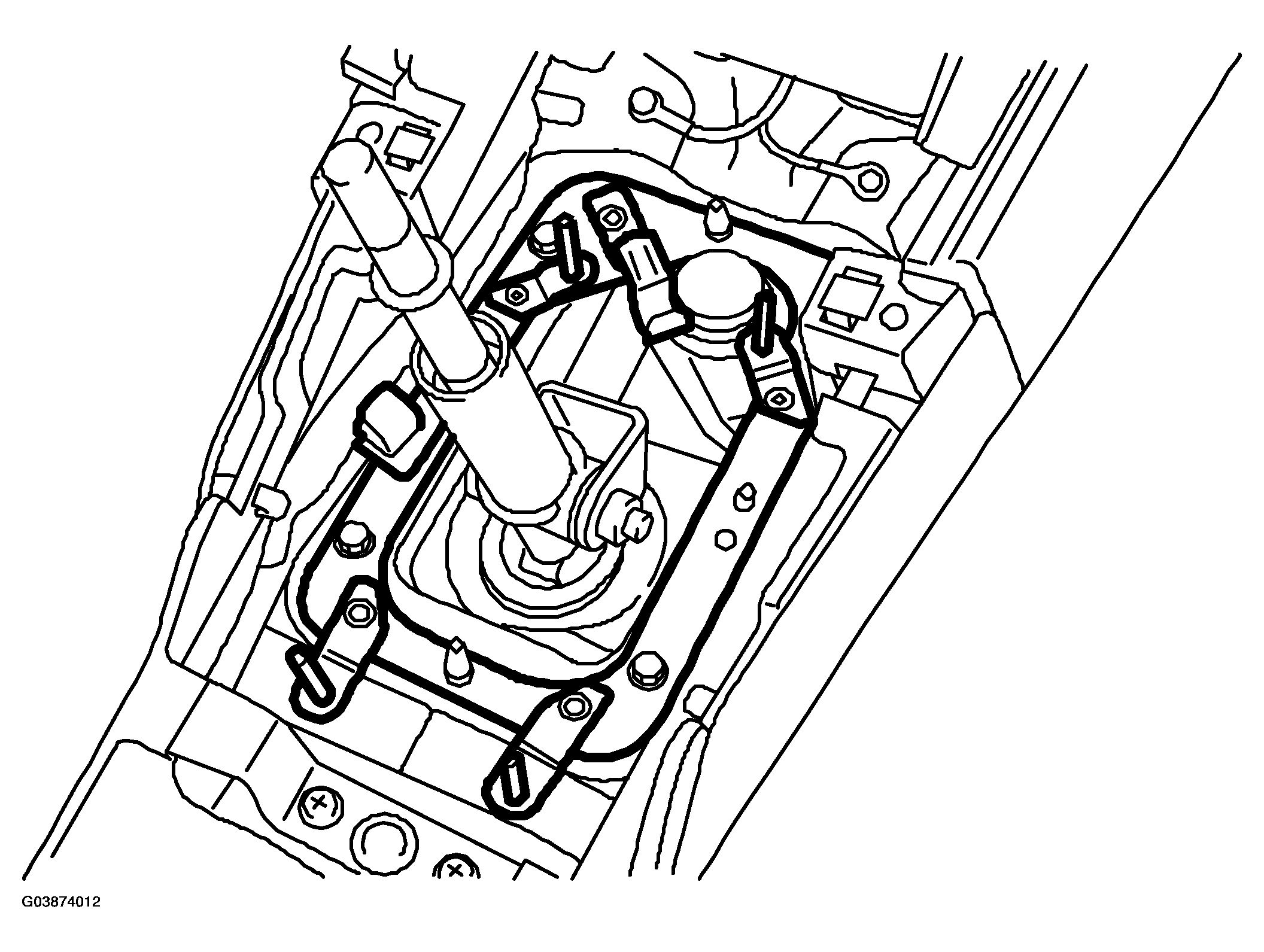

Fig 6: Installing Plate Assembly To Body

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Install console box.
