Select Cable: Adjustment

Set the select lever to "N" range.

Remove the rear exhaust pipe and muffler.

Remove the heat shield cover. (If equipped)

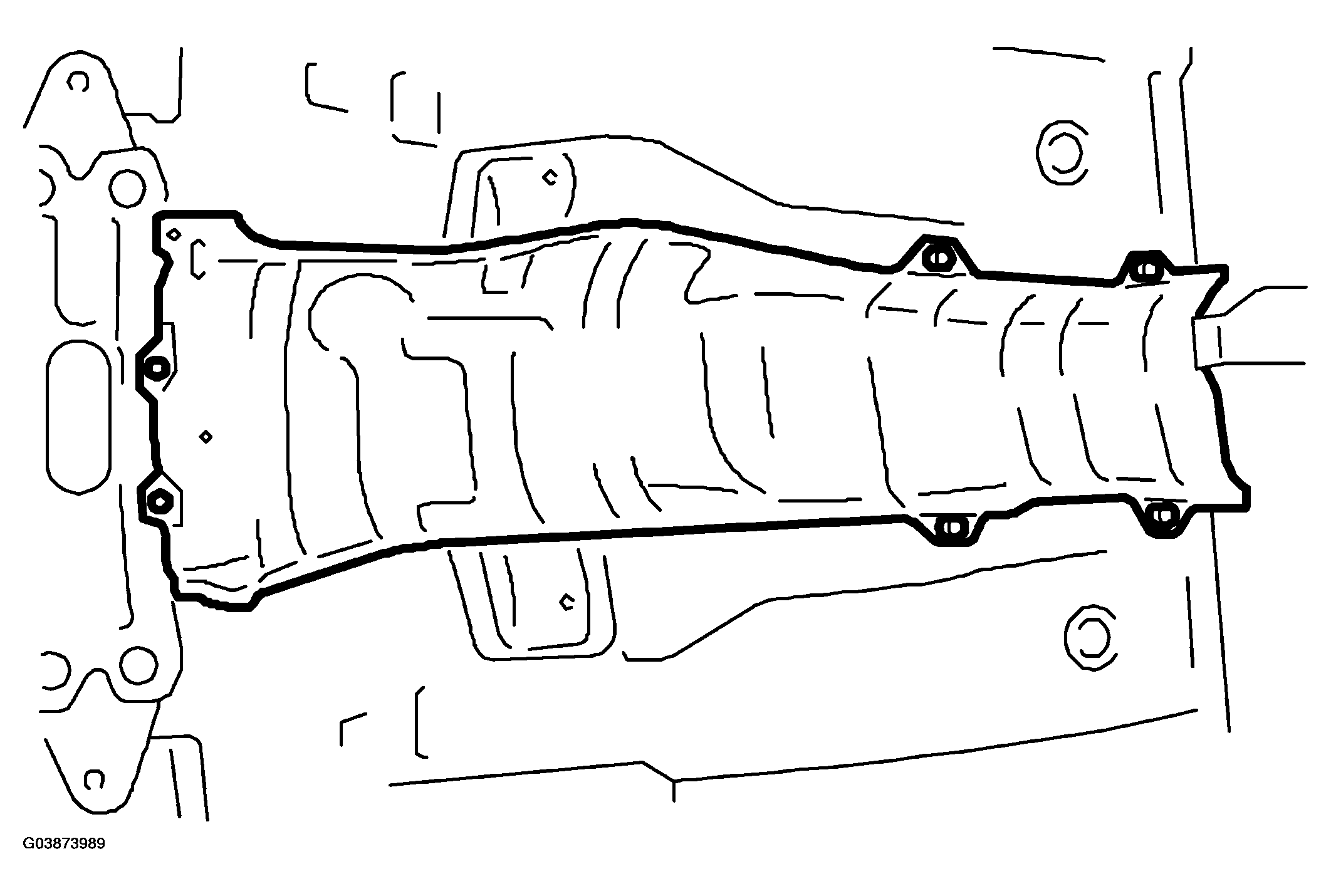

Fig 1: Removing Heat Shield Cover

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Loosen the adjusting nut on each side.

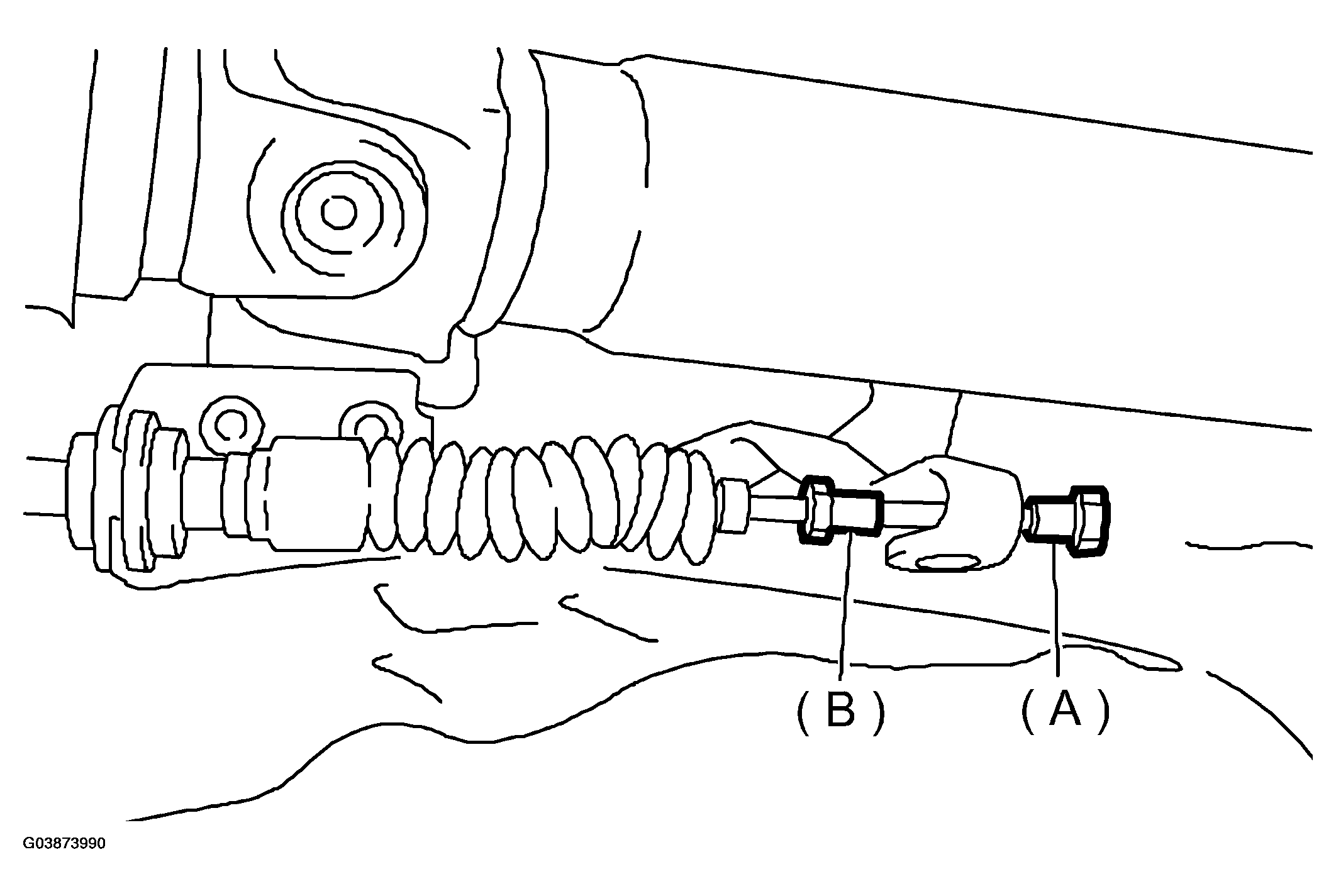

Fig 2: Removing Adjusting Nut

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Turn the adjusting nut B until it lightly touches the connector.

Fig 3: Adjusting Nut

Courtesy of SAAB-SCANIA OF AMERICA, INC.

While preventing the adjusting nut B from moving with a wrench, tighten the adjusting nut A.

Tightening torque:

7.5 Nm (0.76 kgf-m, 5.5 ft-lb)

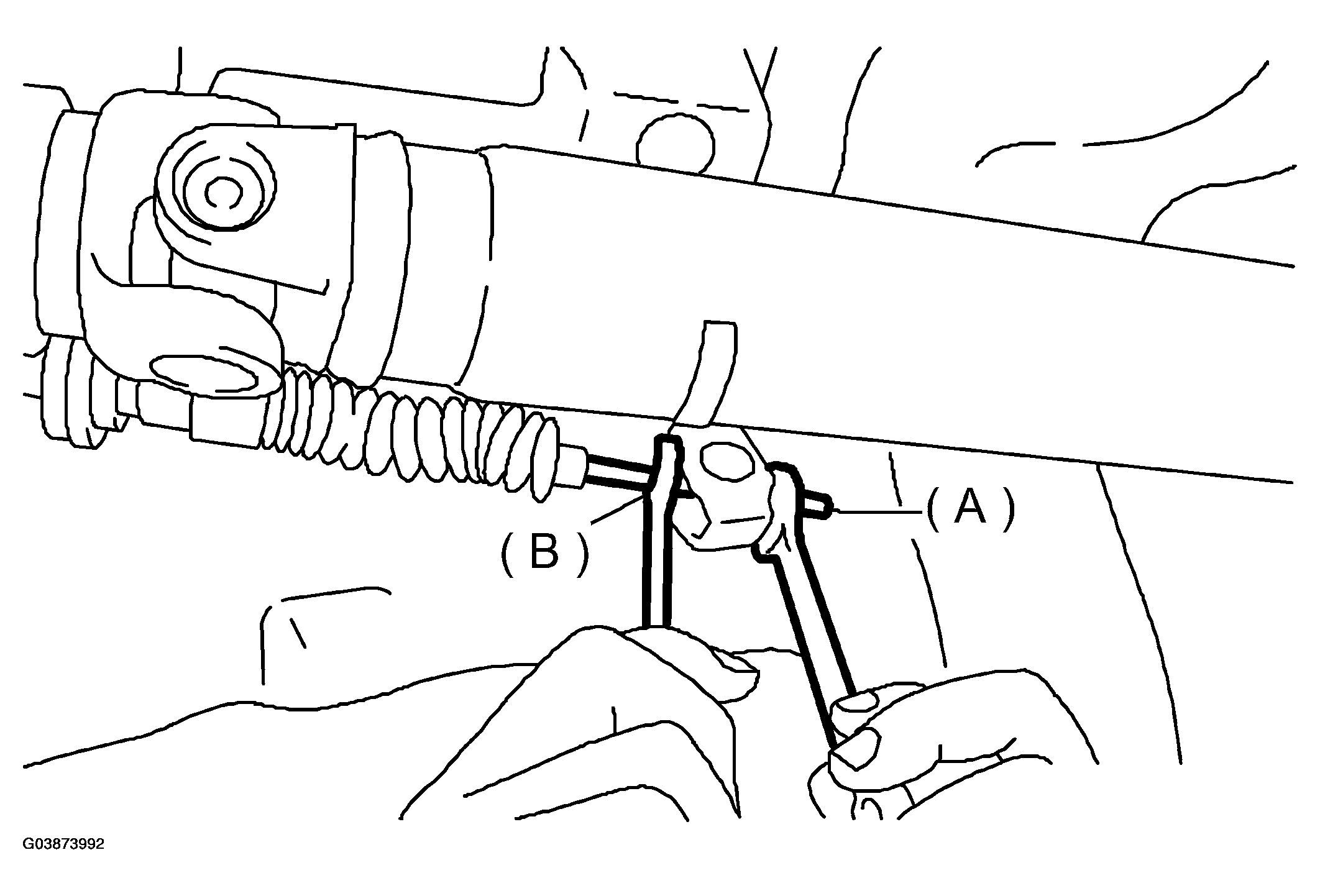

Fig 4: Tightening Adjusting Nut

Courtesy of SAAB-SCANIA OF AMERICA, INC.

After completion of fitting, make sure that the select lever operates smoothly all across the operating range.

Install in the reverse order of removal.
