Select Lever: Removal

Set the vehicle on a lift.

Disconnect negative cable from battery.

Set the select lever to the "N" range.

Lift-up the vehicle.

Remove the rear exhaust pipe and muffler.

• Saab 9-2X 2.5i Linear
• Saab 9-2X 2.0T Aero

Remove the heat shield cover. (If equipped)

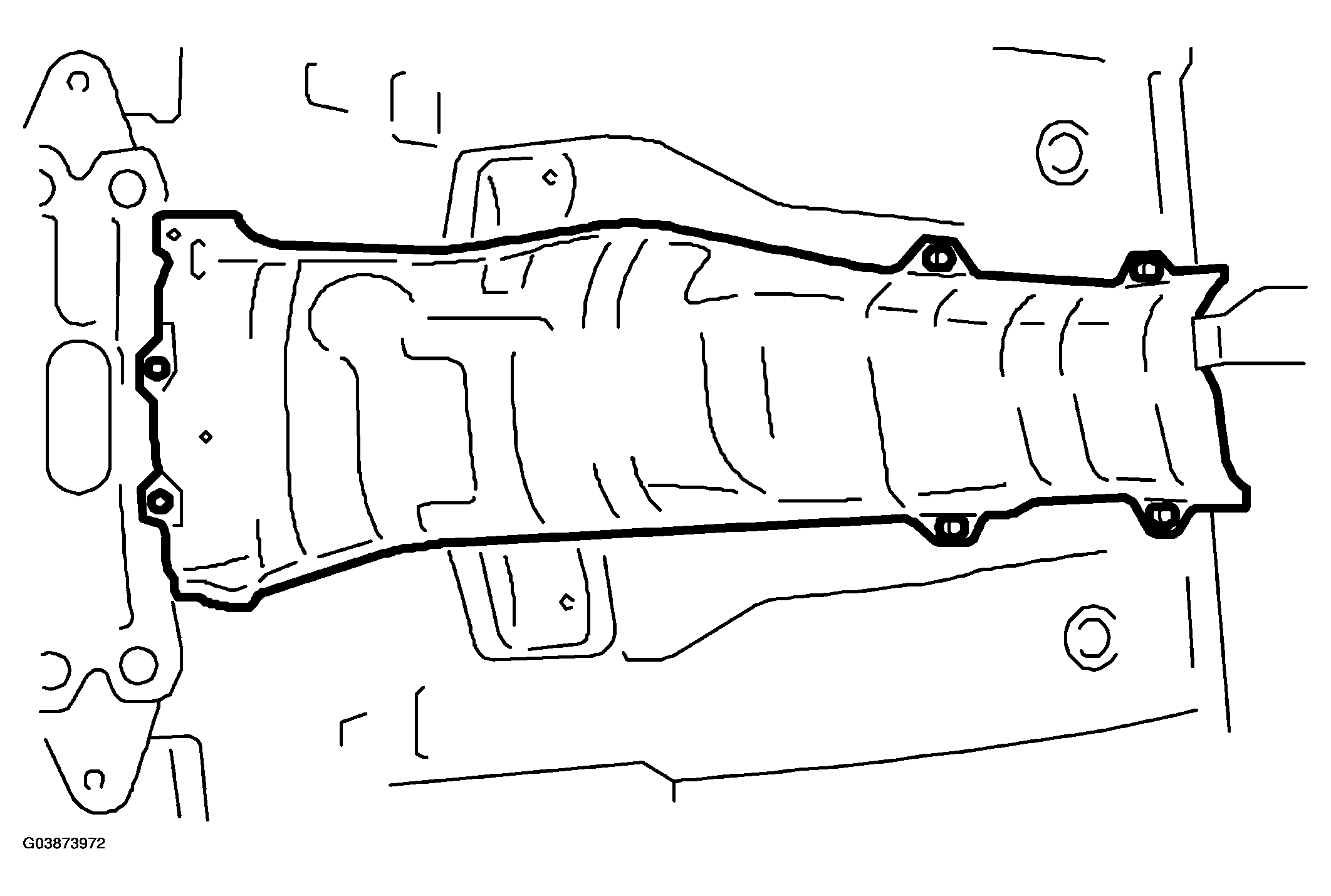

Fig 1: Removing Heat Shield Cover

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Disconnect the cable from select lever, and then remove the cable bracket.

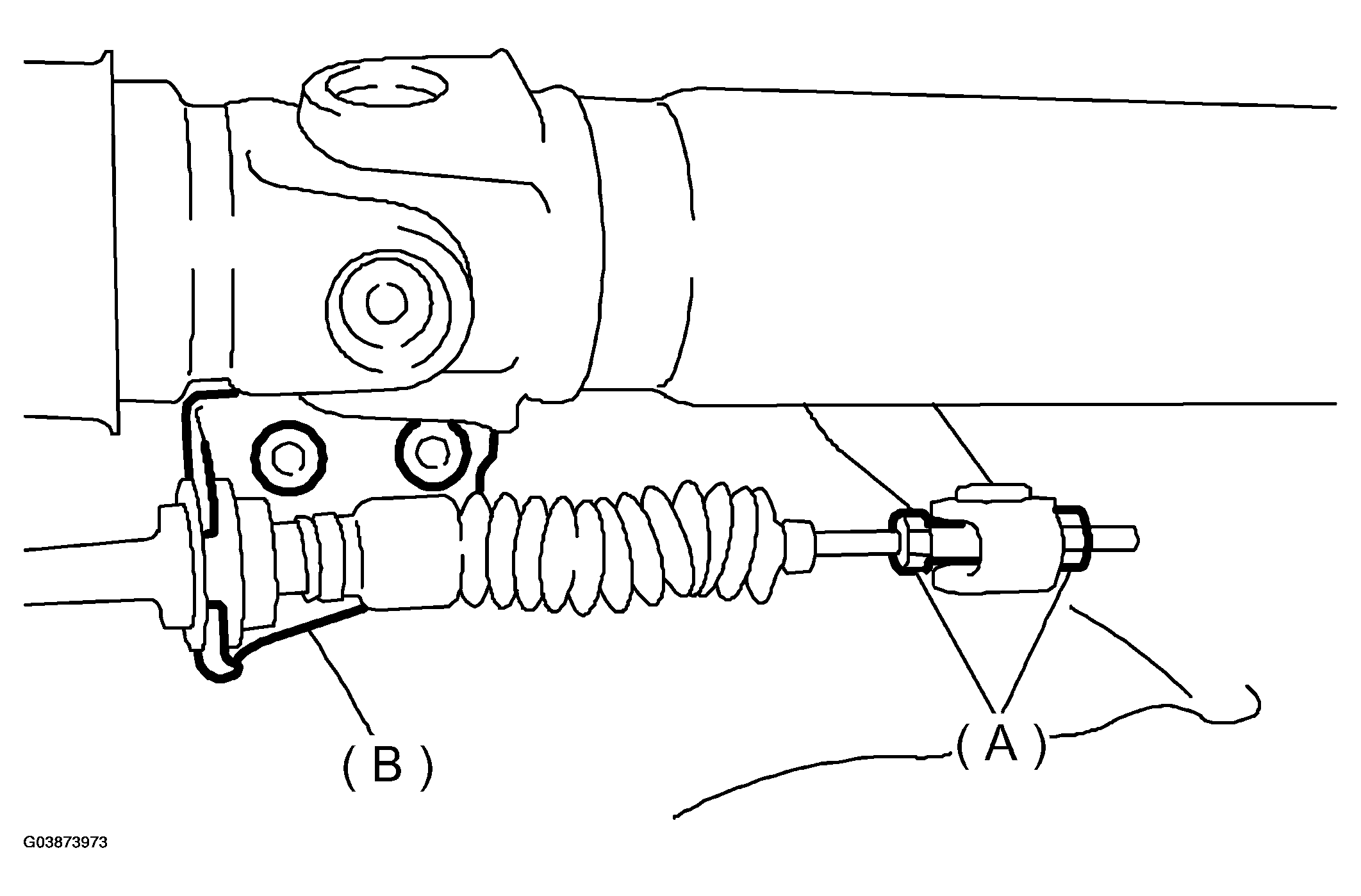

Fig 2: Removing Cable Bracket

Courtesy of SAAB-SCANIA OF AMERICA, INC.

1. Adjusting nuts
2. Cable bracket

Lower the vehicle.

Remove the console box.

Disconnect the connectors, then remove the four bolts to take out the select lever assembly from the body.

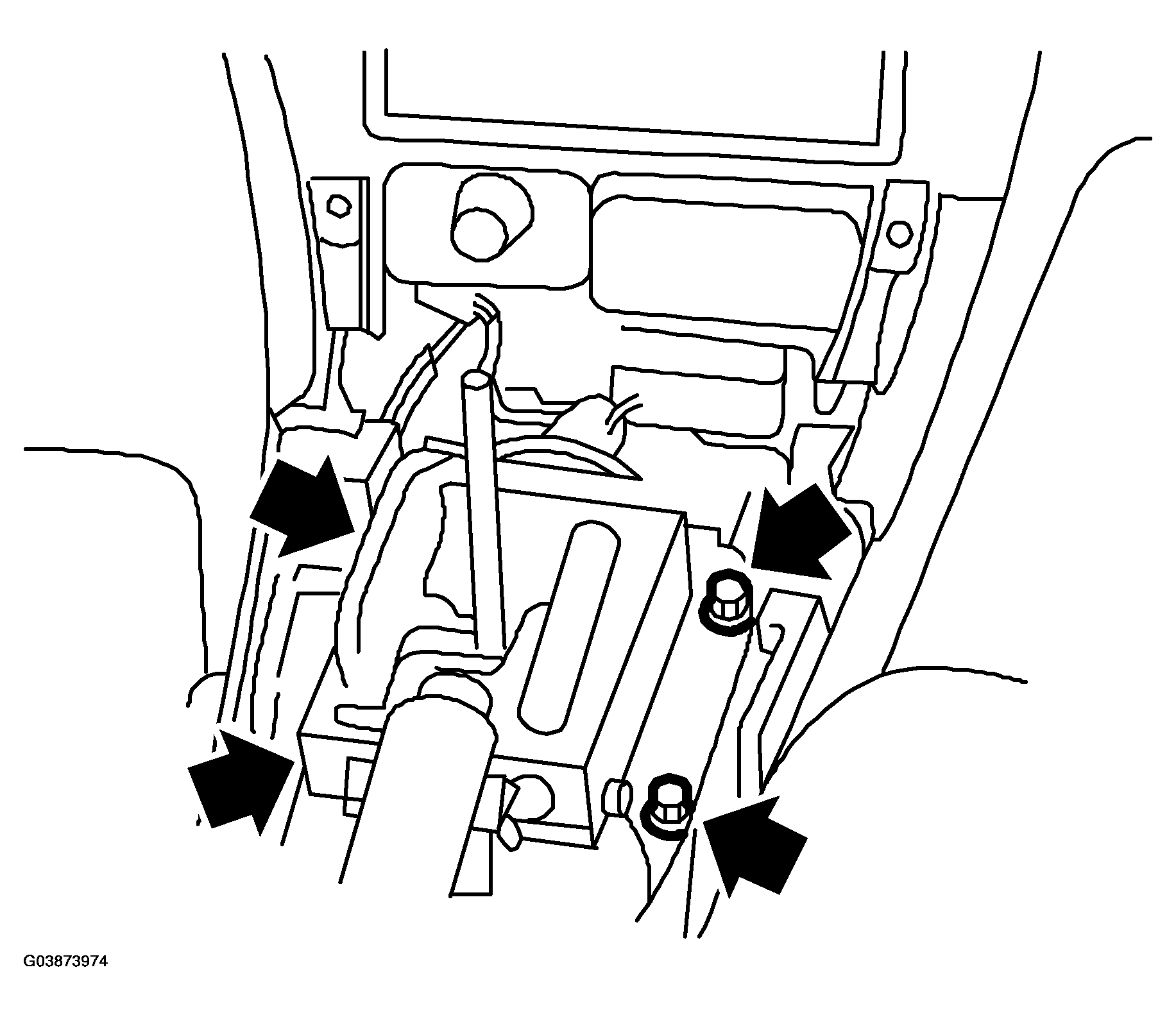

Fig 3: Removing Console Box Bolts

Courtesy of SAAB-SCANIA OF AMERICA, INC.
