5MT Gear Shift Lever

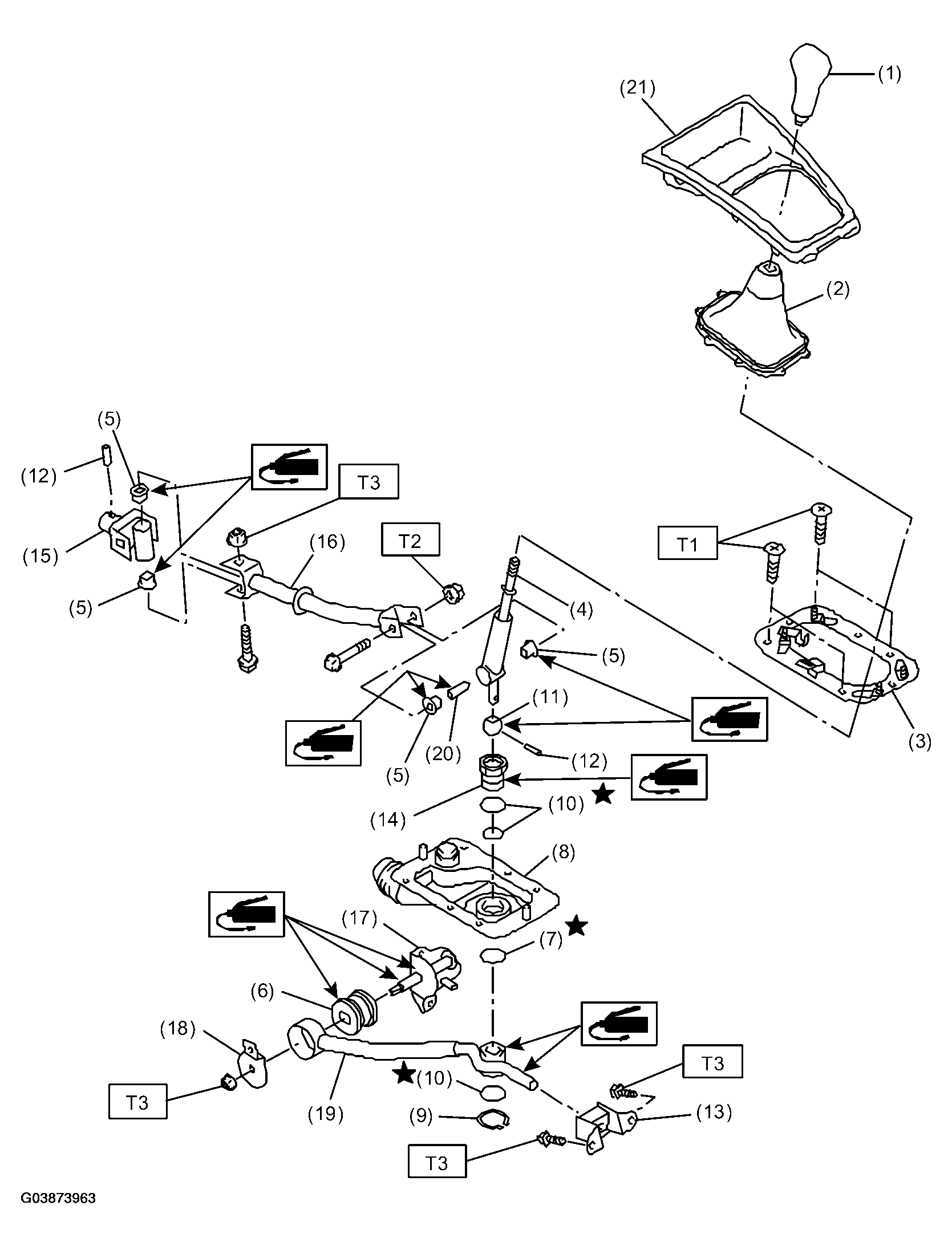

Fig 1: Identifying 5MT Gear Shift Lever Components

Courtesy of SAAB-SCANIA OF AMERICA, INC.

1. Gear shift knob
2. Console boot
3. Plate ASSY
4. Lever
5. Bushing
6. Bushing
7. Lock wire
8. Boot
9. Snap ring
10. O-ring
11. Bushing A
12. Spring pin
13. Cushion rubber
14. Bushing B
15. Joint
16. Rod
17. Bracket
18. Washer
19. Stay
20. Spacer
21. Front cover

Tightening torque: Nm (kgfm, ft-lb)

T1: 7.5 (0.76, 5.5)

T2: 12 (1.2, 8.7)

T3: 18 (1.8, 13.0)
