Select Cable: Installation

Install the select cable to plate assembly.

Tightening torque:

18 Nm (1.8 kgf-m, 13.0 ft -lb)

Install the select cable to range select lever.

Install the plate assembly to transmission.

Tightening torque:

T: 24.5 Nm (2.5 kgf-m, 18.1 ft -lb)

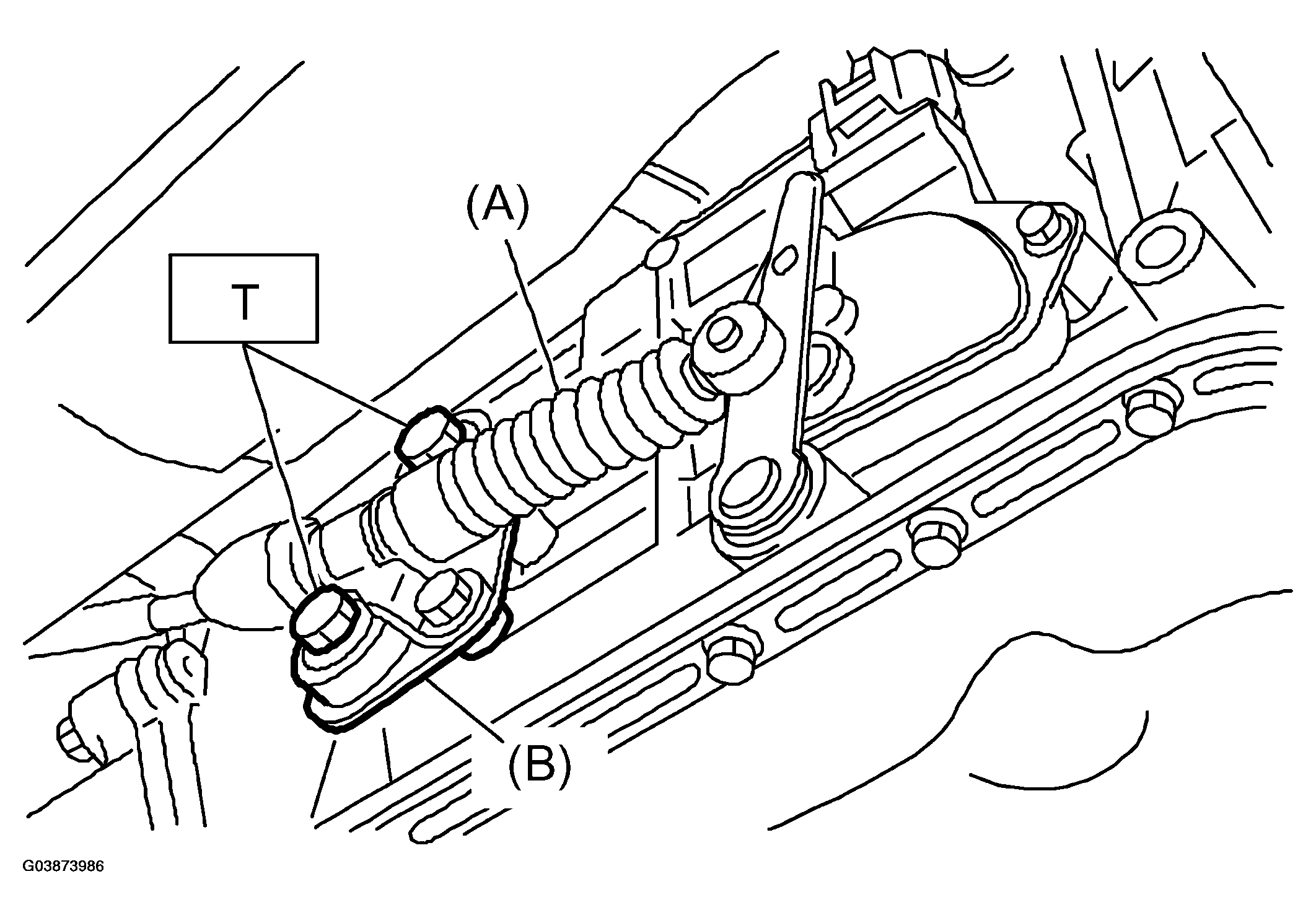

Fig 1: Installing Plate Assembly To Transmission

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Install the washer and snap pin to range select lever.

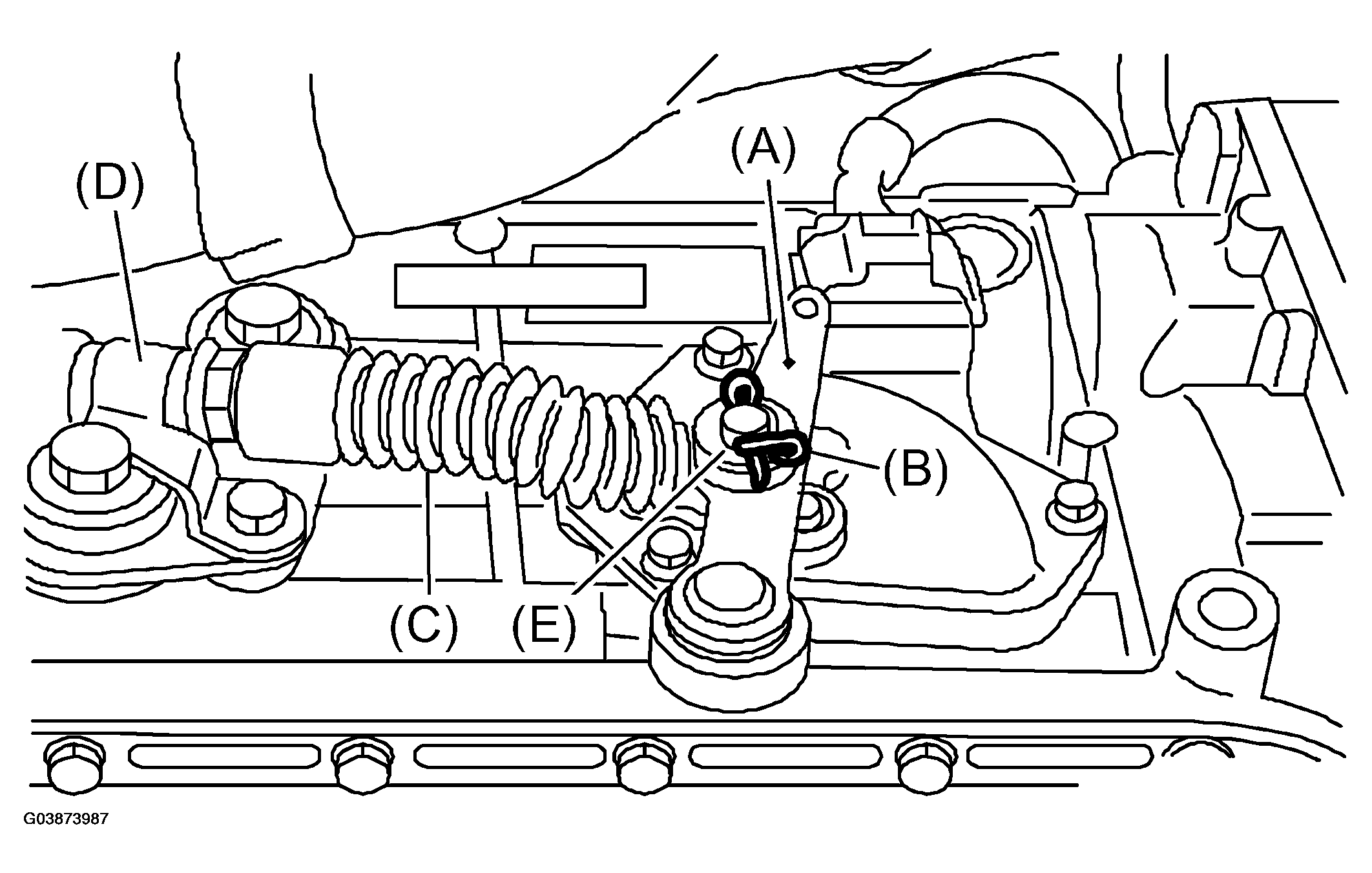

Fig 2: Installing Washer And Snap Pin To Range Select Lever

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Insert the thread portion of other inner cable and into connector hole of select lever, and fix the other outer cable end to the bracket.

Tightening torque:

18 Nm (1.8 kgf-m, 13 ft-lb)

Move the select lever to "N" range, and then adjust the select cable position.

Install the heat shield cover.

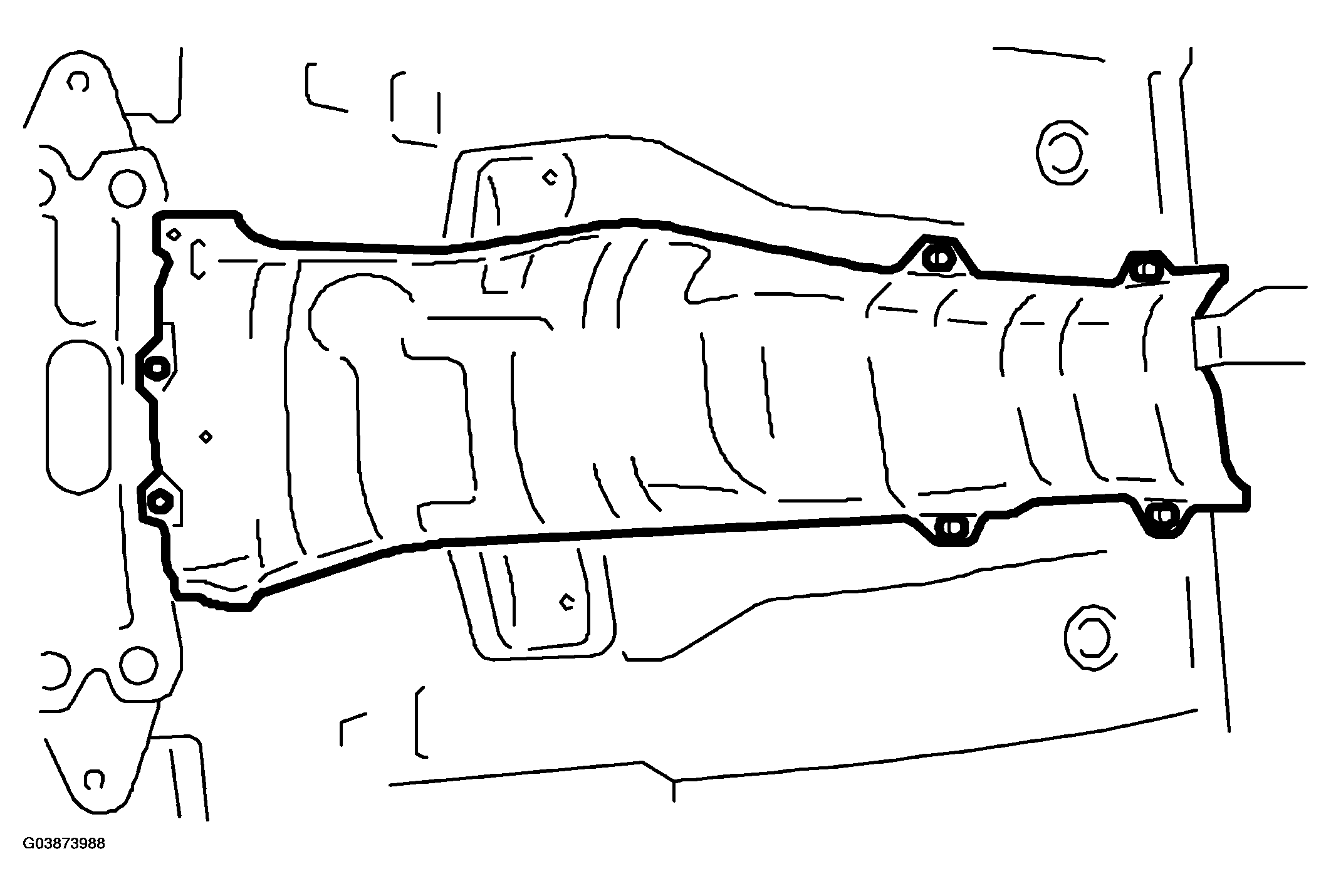

Fig 3: Installing Heat Shield Cover

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Install the front, center, rear exhaust pipe and muffler. (Saab 9-2X 2.5i Linear)

Install center and rear exhaust pipes and muffler. (Saab 9-2X 2.0T Aero)
